ISUZU KV100 RHD 20,000-Chick Transport Truck with Carrier Refrigeration and Insulated FRP Cargo Box

Name: ISUZU KV100 RHD 20,000-Chick Transport Truck with Carrier Refrigeration and Insulated FRP Cargo Box
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 135,963.00 USD
Availability: InStock

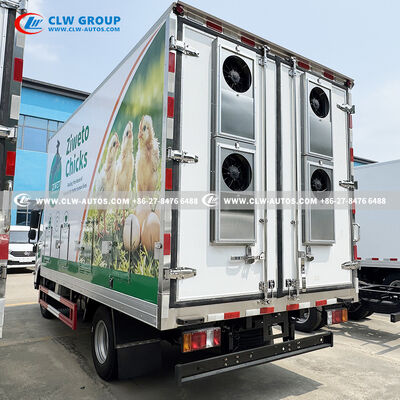

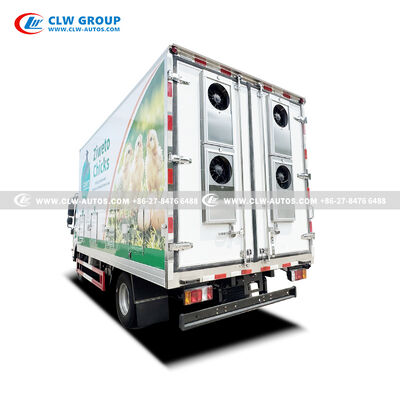

Large Image : ISUZU KV100 RHD 20,000-Chick Transport Truck with Carrier Refrigeration and Insulated FRP Cargo Box

Product Details:

Contact Now

Detailed Product Description

Chassis:	ISUZU KV100 4x2 RHD	Wheelbase:	3,360 Mm
Overall Size:	6,500 × 2,500 × 3,000 Mm	GVW:	4,495 Kg
Curb Weight:	2,295 Kg	Engine Power:	120 HP
Engine Capacity:	2,999 Ml	Transmission:	MSB 5-speed Manual (5F+1R)
Tire Size:	7.00R16 (6 + 1 Spare)	Van Size:	4,200 × 2,400 × 2,400 Mm
Highlight:	20 , 000-Chick Capacity Chick Transport Truck , Carrier Refrigeration Livestock Carrier , Insulated FRP Cargo Box Refrigerated Box Truck

ISUZU KV100 RHD 20,000-Chick Transport Truck – Insulated Livestock Carrier with Carrier Refrigeration

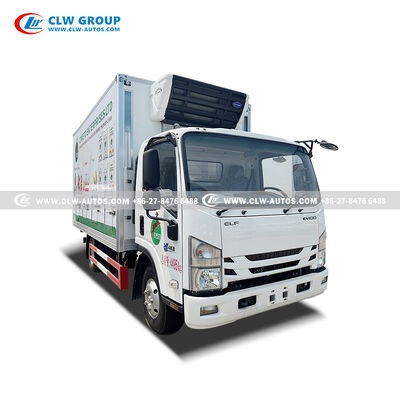

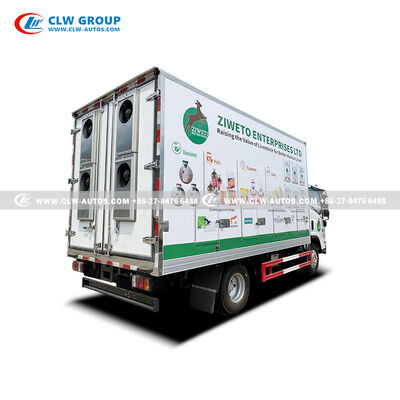

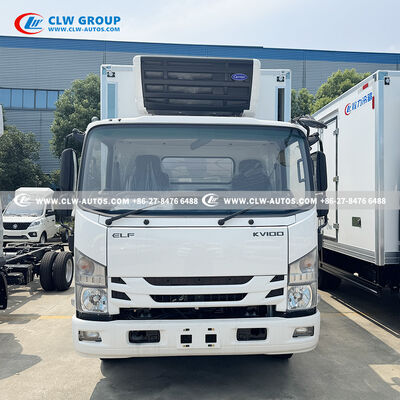

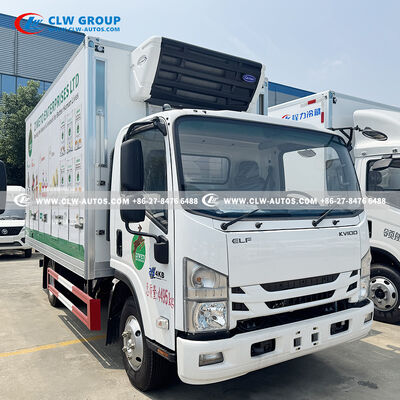

The ISUZU KV100 RHD Chick Transport Truck is a specialized livestock vehicle built on the ISUZU KV100 4x2 chassis, featuring a 120HP ISUZU 4KH1CN6LB Euro IV engine, MSB 5-speed transmission, 4.2m insulated FRP cargo box (4,200×2,400×2,400mm) with ventilation louvers, Carrier refrigeration unit (26-30°C), and 20,000-chick capacity. GVW 4,495kg, curb 2,295kg, wheelbase 3,360mm, 7.00R16 tires (6+1 spare). Ideal for day-old chick transport from hatcheries to farms in Malawi and African RHD markets.

Overview

The ISUZU KV100 RHD Chick Transport Truck is a professional-grade livestock vehicle designed for hatcheries, poultry farms, and livestock logistics operators requiring reliable, temperature-controlled transport of day-old chicks. Built on the proven ISUZU KV100 4x2 chassis with 3,360mm wheelbase and KV100 single-row cab (RHD with A/C), this vehicle features an ISUZU 4KH1CN6LB diesel engine delivering 120HP with Euro IV compliance, paired with an MSB 5-speed manual transmission.

The 4.2m cargo box (4,200×2,400×2,400mm) is constructed with FRP inner/outer panels and high-density polyurethane insulation, featuring densely arranged circulating ventilation louvers on both sides for layered airflow. Internal partition shelves create multi-tier racks for chick transport baskets, enabling a load capacity of up to 20,000 chicks. The Carrier refrigeration unit provides precise temperature control at 26-30°C - the optimal transport temperature for chicks.

Key Features

ISUZU KV100 4x2 RHD Chassis: 3,360mm wheelbase, KV100 single-row cab with A/C, RHD. GVW 4,495kg, curb 2,295kg. 7.00R16 tires (6+1 spare). Low fuel consumption, minimal failure rate.
ISUZU 120HP Euro IV Engine: 4KH1CN6LB, 120HP, 2,999ml. MSB 5-speed manual transmission (5F+1R).

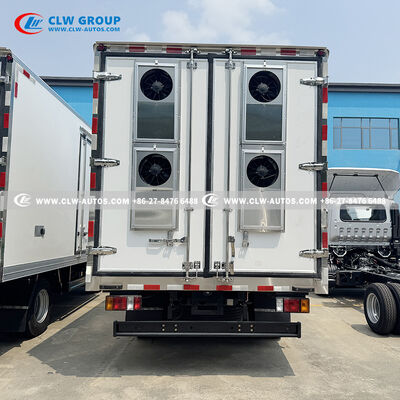

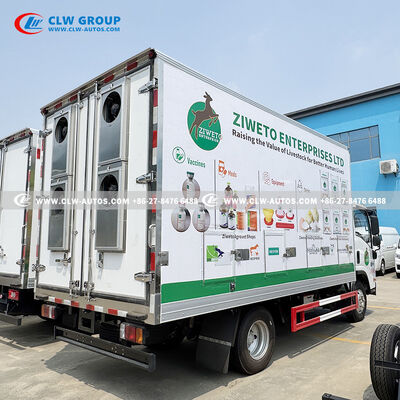

4.2m Insulated Chick Box: 4,200×2,400×2,400mm. FRP + PU insulation. Ventilation louvers on both sides. Internal partition shelves for multi-tier chick baskets.

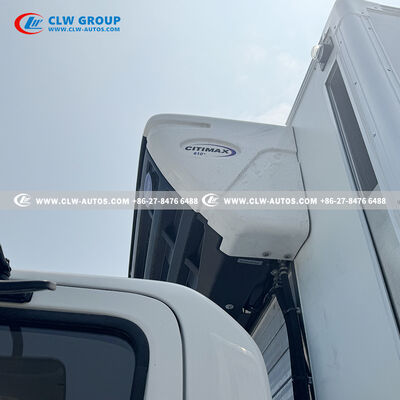

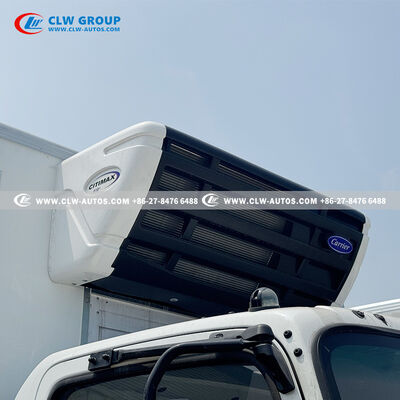

Carrier Refrigeration Unit: 26-30°C temperature control. Heat-resistant and dust-resistant for African tropical conditions.
20,000-Chick Capacity: Optimal for small-to-medium batch deliveries.
Durable Construction: Lightweight, waterproof, moisture-proof. Smooth inner walls easy to wash and disinfect.
Optional Humidity Adjustment: Prevents chick dehydration.
Applications: Hatchery-to-farm chick delivery, poultry logistics, livestock transport.

Applications

Day-old chick transport from hatcheries to township farms
Poultry logistics for smallholder free-range bases
Cross-border chick transport in African RHD markets
Temperature-sensitive livestock transport (26-30°C)
Agricultural logistics operations

Specifications

Specification	Details
Chassis	ISUZU KV100 4x2 RHD
Wheelbase	3,360 mm
Overall Size	6,500 × 2,500 × 3,000 mm
GVW / Curb	4,495 kg / 2,295 kg
Cab	KV100 single-row, RHD, A/C
Engine	ISUZU 4KH1CN6LB, 120 HP, 2,999 ml, Euro IV
Transmission	MSB 5-speed manual (5F+1R)
Tires	7.00R16 (6 + 1 spare)
Van Size	4,200 × 2,400 × 2,400 mm
Box Construction	FRP + PU insulation
Ventilation	Side louvers + layered airflow
Refrigeration	Carrier (USA)
Temperature	26 - 30°C
Chick Capacity	20,000 day-old chicks
Applications	Hatchery-to-farm chick delivery, poultry logistics, livestock transport
