ISUZU 4HK1-TC60 10Tons Meat Hook Refrigerated Truck with Carrier Supra 850S Independent Cooling

ISUZU 4HK1-TC60 10Tons Meat Hook Refrigerated Truck with Carrier Supra 850S Independent Cooling
ISUZU 4HK1-TC60 10Tons Meat Hook Refrigerated Truck with Carrier Supra 850S Independent Cooling ISUZU 4HK1-TC60 10Tons Meat Hook Refrigerated Truck with Carrier Supra 850S Independent Cooling ISUZU 4HK1-TC60 10Tons Meat Hook Refrigerated Truck with Carrier Supra 850S Independent Cooling ISUZU 4HK1-TC60 10Tons Meat Hook Refrigerated Truck with Carrier Supra 850S Independent Cooling ISUZU 4HK1-TC60 10Tons Meat Hook Refrigerated Truck with Carrier Supra 850S Independent Cooling ISUZU 4HK1-TC60 10Tons Meat Hook Refrigerated Truck with Carrier Supra 850S Independent Cooling

Large Image :  ISUZU 4HK1-TC60 10Tons Meat Hook Refrigerated Truck with Carrier Supra 850S Independent Cooling

Product Details:

Place of Origin: CHINA
Brand Name: CLW Group
Model Number: Refrigerated truck

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 30DAYS
Supply Ability: 10pcs/month
Detailed Product Description
Engine Model: 4HK1-TC60
Highlight:

41m³ Large Capacity Refrigerated Truck

,

Carrier Supra 850S Independent Cooling Meat Hook Truck

,

Class-A Insulation Cold Chain Truck

ISUZU 4HK1-TC60 10Tons Meat Hook Refrigerated Truck

Built on the genuine ISUZU GIGA chassis, this 6.8m meat hook refrigerated truck is engineered for professional chilled-meat logistics, slaughterhouse docking operations, and premium cold-chain transport. With a national Class-A insulated box, Carrier Supra 850S independent refrigeration, and a purpose-designed ceiling meat hook rail system, it delivers the reliability, hygiene, and flexibility that meat processors, distributors, and cold-chain operators demand.

Key Features
  • ISUZU Powertrain - Proven Durability: 205HP 4HK1-TC60 engine with MLD 6-speed gearbox. Low maintenance, excellent fuel efficiency, strong resale value. Built for 5+ years of daily commercial operation.

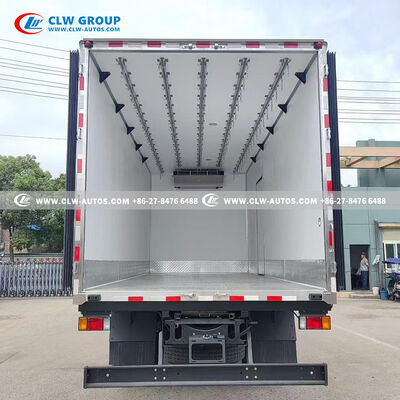

  • 41m³ Large Capacity with Professional Meat Hook System: Internal dimensions 6800*2410*2500mm. Two rail options: straight parallel (cost-effective, dedicated meat) or docking detachable (slaughterhouse direct loading + multi-purpose use).
  • Independent Carrier Cooling - Stable & Reliable: Carrier Supra 850S independent unit. Fresh meat range -5°C to -15°C, optional down to -18°C. Engine-independent operation ensures consistent temperature even when parked. Optional external 380V power keeps cooling during stops.
  • Class-A Insulation & Food-Grade Hygiene: FRP inner/outer skins, seamless polyurethane foam, stainless steel door frames and locks. Easy-clean interior. Optional full stainless steel lining for seafood/corrosive cargo.
  • One Vehicle, Multiple Applications: Detachable rail frame version converts to a standard refrigerated van in minutes -- transport frozen food, produce, dairy when not hauling meat. Maximizes fleet utilization.
Body Specifications
Category Specification
Overall Dimensions (mm) 9200 * 2600 * 3980
Internal Dimensions (mm) 6800 * 2410 * 2500
Cargo Volume Approx. 41 m³ (Theoretical 40.97 m³)
Insulation Rating National Class A Standard
Insulation Material Seamless Polyurethane Foam
Inner / Outer Skin High-strength Fiberglass Reinforced Plastic (FRP)
Connection Seamless resin bonding
Rear Doors Full-sealing double doors, stainless steel frame trim, hinges & locks
Floor Anti-slip aluminum checkered plate
Side Door Right-side single door (optional: single/double)
Lighting Interior LED cargo light
Optional Full stainless steel interior (for seafood/corrosive goods)

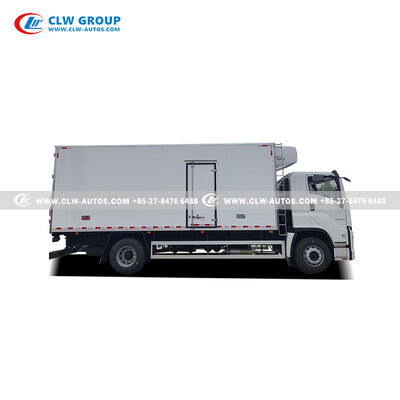

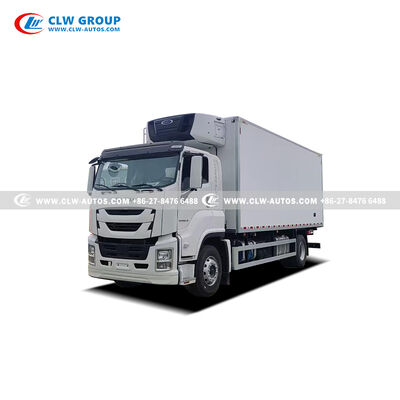

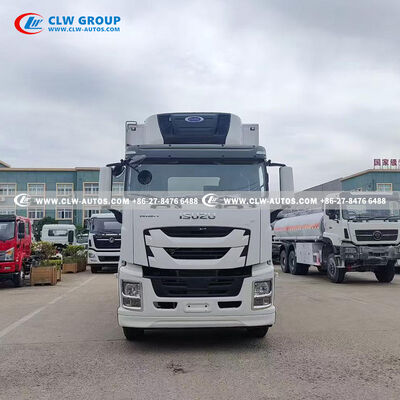

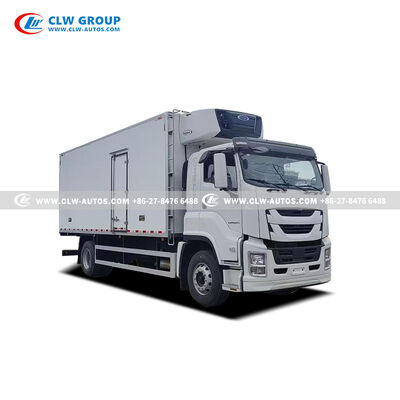

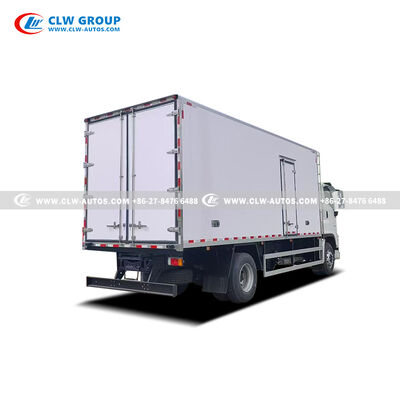

Product Gallery
Frequently Asked Questions
Straight parallel rails vs docking rails -- which should I choose?

Choose straight parallel for dedicated long-term meat transport on a budget. Choose docking detachable if you work with slaughterhouses regularly, want to save loading labor, or need to haul regular cold goods sometimes. The docking version is our most popular upgrade.

Will the rails and refrigeration unit reduce usable space?

Theoretical volume is ~41m³. Rails, hooks, and air ducts take up some space, but the remaining capacity is still large enough for high-volume meat transport. Hanging meat actually uses vertical space more efficiently than stacking boxes.

Can the truck carry frozen food or seafood besides fresh meat?

Yes. The detachable rail version converts to a standard 41m³ reefer in minutes. For seafood, we recommend the optional full stainless steel interior to resist salt corrosion.

Is the ISUZU chassis suitable for long-distance transport?

Absolutely. 5550mm wheelbase, 205HP engine, 13T rear axle -- ideal for inter-city and medium-to-long-haul routes. Not too bulky for urban access, not underpowered for highway runs.

Can I customize the configuration?

Yes. We tailor rail type, refrigeration brand/temperature, side doors, interior material, monitoring systems, and external power to match your operation. All units are built to order.
