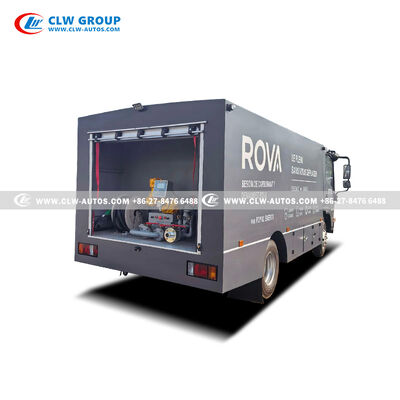

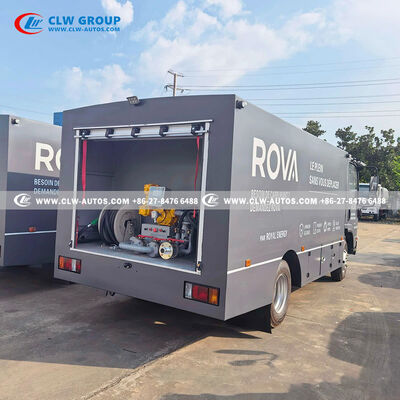

CAFU ISUZU 6CBM Refueling Truck with 6,000-liter Dual-Compartment Tank, 132HP Euro 6 Engine & Censtar Dispenser

The CAFU ISUZU 6CBM Refueling Truck is designed to fit the local African CAFU operation mode. Built on the mature ISUZU light-duty chassis (3,815mm wheelbase), it is powered by a 132HP Euro 6 diesel engine. The chassis features an anti-rust coating, relatively high ground clearance, and good fuel compatibility for locally-supplied diesel.

The superstructure features a dual-compartment tank (3,000L + 3,000L) made from Q235B high-tensile carbon steel with 4mm/5mm thickness. The rear-mounted integrated CAFU fuel dispensing unit is the core selling point, including a Censtar brand fuel dispenser with a 70L/min flow rate and English/French operation panel. The system also features dual 2.5" PTO-driven oil pumps with independent pump-in and pump-out for each compartment, dual 15-meter 1-inch filling hoses, and two filling nozzles.

The vehicle is equipped with two sets of API aluminum pneumatic bottom valves, two $100 discharging valves, electronic level meters, and two 4KG fire extinguishers with a static belt. The modular-designed superstructure facilitates easy repair and replacement of fuel pump and dispenser components.

• Mature ISUZU Light-Duty Chassis: 3,815mm wheelbase, 7,000kg GVW. Original ISUZU cab with A/C and 70° hydraulically tillable front. Large stock of spare parts in Africa for easy maintenance.
• 132HP Euro 6 Engine: Model 4KH1CN6HB, 2,999ml. 6-speed manual transmission. Low-speed-biased torque for heavy-load conditions on bumpy dirt roads.
• Dual-Compartment Tank: 6,000-liter capacity (3,000L + 3,000L). Q235B high-tensile carbon steel with 4mm tank and 5mm end plate thickness. Simultaneous transport of two fuel types.

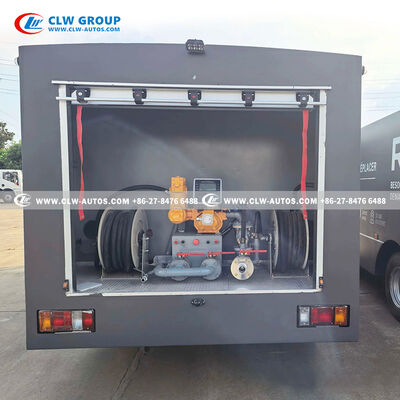

• Rear-Mounted Integrated CAFU Fuel Dispensing Unit: Censtar brand dispenser (70L/min, English/French panel, showing unit price/filling volume/total price). Dual 2.5" PTO-driven oil pumps. Dual 15m 1-inch filling hoses and nozzles.
• Safety & Monitoring: API aluminum pneumatic bottom valves. $100 discharging valves. Electronic level meters. 4KG fire extinguishers. Static belt. Manhole covers with breather valves.
• Modular Design: Easy repair and replacement of fuel pump and dispenser components with locally sourced parts.
• Customizable: Carbon steel van body cover. Customized tank color with customer's logo. Anti-corrosion paint for humidity and salt-fog protection.

• Mobile fuel supply & retail for independent fuel traders
• On-site refueling for construction sites and mines
• Agricultural machinery and farm vehicle refueling
• Mobile fuel dispensing in remote areas without fixed gas stations
• Dual-fuel transport (diesel + petrol) for small-to-medium fuel dealers
