Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust

Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust
Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust

Large Image :  Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: CCC, ISO, BV
Model Number: CLW5087ZYS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Sweeping Speed: 3-20 Km/h Maximum Sweep Width: 2.8m
Maximum Cleaning Capacity: 40000m³/h Auxiliary Engine: JMC, 77HP
Water Tank: 1.5CBM, Stainless Steel 304 Dust Tank: 4CBM, Stainless Steel 304
Motor: Sanyo Pump: Electronic Water Pump, Chinese Famous Brand.
Fan: Maintenance-free Centrifugal Fan(vacuum Tube, And Rear Suction Device) Sweeping Brushes: 4 / 2 Sweeping Brushes On Each Side
Operation Manual: 1 Set For Each Customer Color: As Per Customer Requirements
High Light:

street sweeper vacuum truck

,

mechanical sweeper truck

Howo 4*2 Road Sweeper Truck (1.5cbm water, 4cbm dust)


Product Description
1. Sinotruk Howo Chassis: Chaochai Engine/95HP;
2. Heavy Duty Dust Tank with different size options: 4000L to 18000L (4CBM to 18CBM);
2. Hydraulic Control Loading & Unloading System;
3. Leakage Proof Devise to contain dirty water Inside;
4. Automatic Key Control & Hydraulic Handle Control;
5. Best Choice for Garbage Transporation Inside of City.


Product Specification

General Technical Parameters
Overall Dimension5950X2000X2500 (mm)
Gross Vehicle Weight8000(Kg)
Curb Weight2300(Kg)
Chassis Specification
Chassis BrandSinotruk Howo
Drive model4*2
CabinHowo 1880 single row, LHD, with air condition.
Number of Passengers2
EngineModelCY4100ZLQ/95HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.
Power70KW/95HP
Emission standardEUROⅡ
Displacement3707(ml)
Fuel typeDiesel
GearboxWLY6T100, 6Forwards & 1Reverse, manual operation, with power steering.
Brake SystemOil break
Wheel Base3360mm
Front/Rear Axle Loading2000/3500(Kg)
OverhangMechanical Suspension, 11/9+7H
Tire7.00R16, steel wire tire, 6pc with 1 spare tire
Sweeping Speed3-20 km/h
Upperstructure Specification
TankWater TankMaterialStainless steel 304
Volume1.5(cbm)
Dust TankMaterialStainless steel 304
Volume4(cbm)
Auxiliary EngineModelJMC
Power57KW/77HP
Maximum sweep width2.8m
Maximum cleaning capacity40000m³/h
Standard Configuration1. Equipped with 2 sweeping brushes on each side;
2. Equipped with Sanyo Motor;
3. Equipped with HIP-SD-7 electromagnetic valve set;
4. Equipped with continuously variable speed automatic clutch;
5. Equipped with German Schneider control switch;
6. Equipped with maintenance-free centrifugal fan, vacuum tube, and rear suction device;
7. Equipped with electronic water pump(water-spray nozzle to restrain dust), and manual pump emergency system;
8. Equipped with hydraulic system(control box lift, rear door open);
9. Equipped with rear LED arrow lights;
10. User's operation manual 1 set.
Optional ConfigurationFront flush, rear sprinkler, side sprayer, self-cleaning function of dust tank, hose reel with water gun, foggy gun, reversing image monitoring, snow shovel, foggy gun, aerial work platform color is optional, etc.

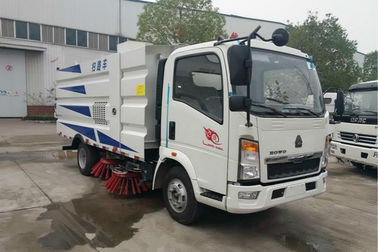

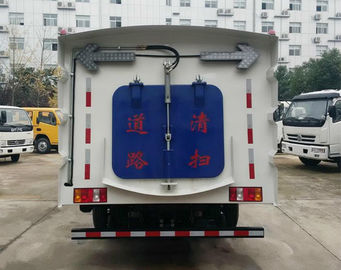

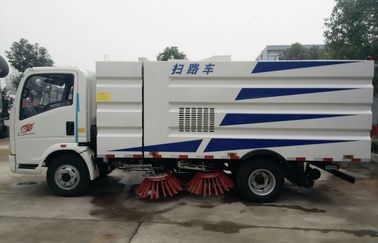

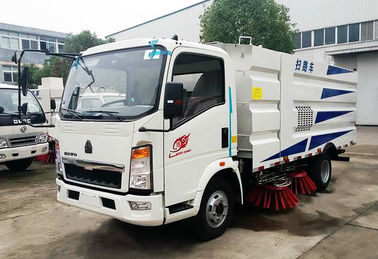

Product Show
Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust 0
Main Structure
Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust 1
Main Parts
Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust 2
Main Optional Parts
Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust 3

Other Related Road Cleaning
Howo 4*2 Road Sweeper Truck , Road Cleaning Truck With 1.5cbm Water 4cbm Dust 4


Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ

Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
