Dongfeng KR 16m³ Road Sweeper and Washing Truck – 210HP with 7m³ Stainless Steel Garbage Tank and 9m³ Water Tank
The Dongfeng KR 16m³ Road Sweeper & Washing Truck is a premium multi-functional sanitation vehicle built on the Dongfeng Kingrun 4x2 chassis, featuring a 210HP main engine (Euro III) and 170HP auxiliary engine, 9m³ carbon steel water tank, 7m³ 304 stainless steel garbage tank (4mm), German Pumpe high-pressure pump, Weilong low-pressure pump (24m coverage), PLC intelligent control with 9 pre-set modes, and comprehensive safety systems.
Overview
The Dongfeng KR 16m³ Road Sweeper & Washing Truck is a premium, multi-functional cleaning vehicle engineered for superior performance, durability, and operational efficiency. Built on the reliable Dongfeng Kingrun 4x2 chassis with one-and-a-half row cab (2-3 seats with sleeper, LHD, A/C, power steering), this vehicle integrates sweeping, high-pressure washing, low-pressure rinsing, curbstone cleaning, garbage collection, dust suppression, road barrier cleaning, and graffiti removal capabilities.
Key Features
- Dongfeng Kingrun 4x2 Chassis: One-and-a-half row cab, LHD, 2-3 seats with sleeper, A/C, power steering. Front axle 6,000 kg, rear axle 10,000 kg. 10.00R20 tires (7 pcs). Full air brake system. 160L steel fuel tank.
- Dual-Engine System: Main: Dongfeng B210 33, 210HP, 5.9L, Euro III, FAST 8F+2R manual transmission. Auxiliary: 170HP (125 kW) dedicated to sweeping/washing.
- 16m³ Tank System: 9m³ water tank (carbon steel) for high-pressure cleaning. 7m³ garbage tank (304 stainless steel, 4mm) for waste collection. Corrosion-resistant for long service life.
- Dual-Pump Washing System: German Pumpe high-pressure pump (powerful surface cleaning, graffiti removal). Weilong 50/110 low-pressure pump (24m coverage, 8 lanes). Road barrier and wall cleaning capability.
- Intelligent Sweeping System: Sweeping width 2,800-3,200mm. Cleaning speed 3-15 km/h. Max sweeping efficiency 48,000 m²/h. Suction pipe Φ200mm, vacuum negative pressure 380mm H₂O. Adjustable brush pressure and variable speed.
- PLC Intelligent Control: 9 pre-set job modes for one-touch operation. Manual auxiliary engine throttle control. Programmable Logic Controller.
- Comprehensive Safety Systems: Automatic clutch protection (ECU-controlled). Intelligent reverse protection (auto-stops during emergency reversing). Tip-over prevention with safety interlocks. Voice alarms, fault self-diagnosis. Anti-overflow/low-water alarms. Work cameras and rearview cameras.
- User-Centric Design: Front-mounted water tank, rear-mounted sewage tank. Semi-enclosed auxiliary engine compartment for easy maintenance. Taiwanese hydraulic valve blocks.
Applications
- City street sweeping and washing
- Highway and expressway maintenance
- Airport runway and apron cleaning
- Industrial park and factory facility upkeep
- Large public area cleaning (parks, squares, stadiums)
- Road barrier and wall cleaning
- Small advertisement and graffiti removal
Specifications
| Chassis |
Dongfeng Kingrun 4x2 |
| Cab |
One-and-a-half row, LHD, 2-3 seats with sleeper, A/C, power steering |
| Main Engine |
Dongfeng B210 33, 210HP, 5.9L, Euro III |
| Transmission |
FAST manual, 8 forward + 2 reverse |
| Axles |
Front 6,000 kg / Rear 10,000 kg |
| Tires |
10.00R20 (7 pcs) |
| Brakes |
Full air brake, parking spring brake, exhaust brake |
| Fuel Tank |
160L steel |
| Water Tank |
9 m³ (carbon steel) |
| Garbage Tank |
7 m³ (304 stainless steel, 4mm) |
| Auxiliary Engine |
170 HP (125 kW) |
| High-Pressure Pump |
German Pumpe |
| Low-Pressure Pump |
Weilong 50/110, up to 24m coverage |
| Sweeping Width |
2,800 - 3,200 mm |
| Cleaning Speed |
3 - 15 km/h |
| Max Efficiency |
48,000 m²/h |
| Suction Pipe |
Φ200 mm |
| Vacuum Pressure |
380 mm H₂O |
| Control |
PLC with 9 pre-set modes |
| Safety |
Voice alarms, fault self-diagnosis, anti-overflow/low-water alarms, cameras |
| Applications |
Municipal, highway, airport, industrial park, public area, graffiti removal |

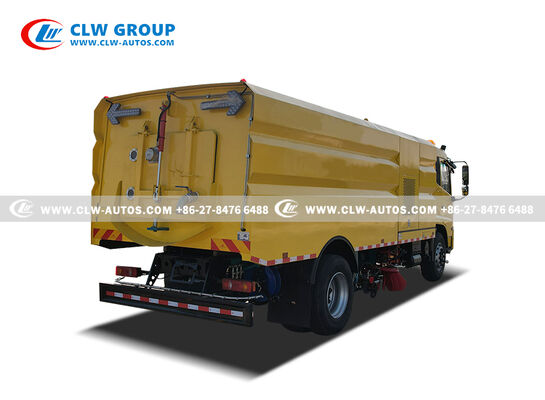

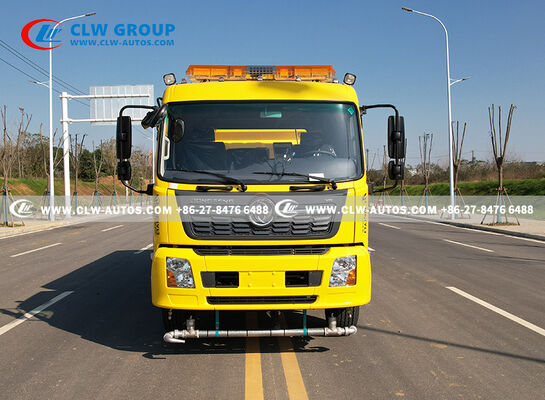

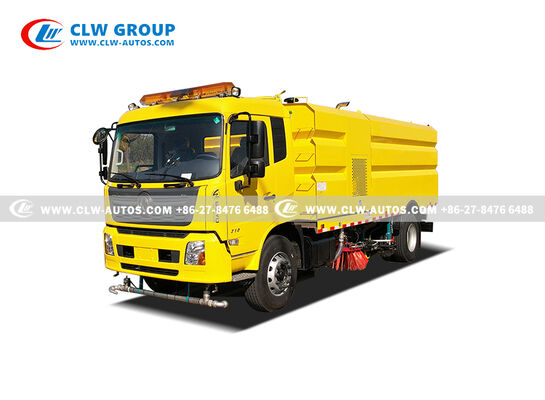

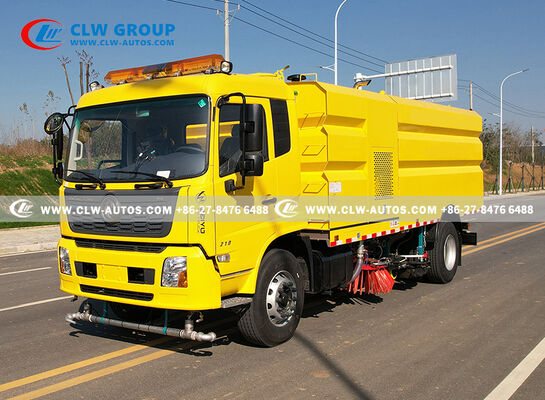

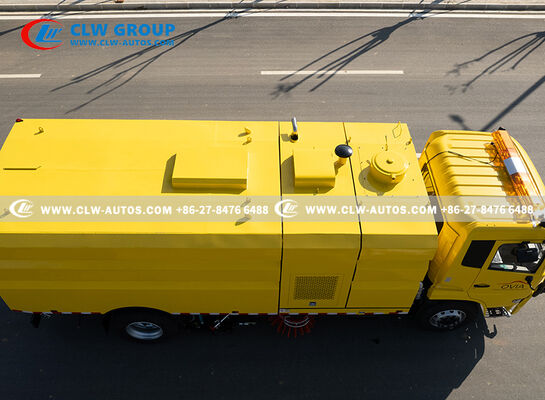

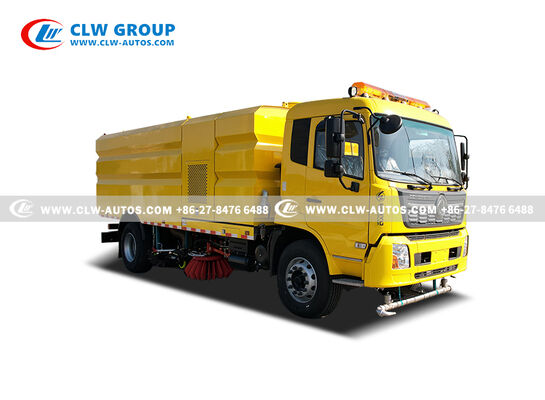

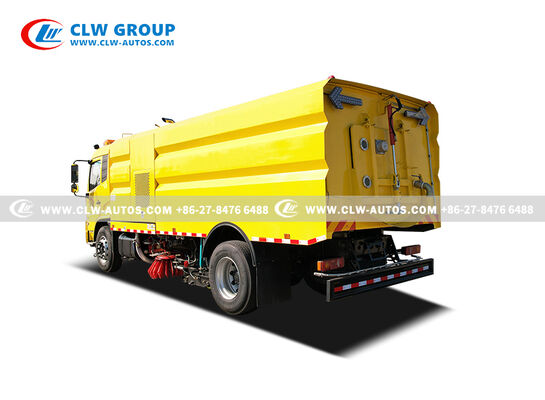

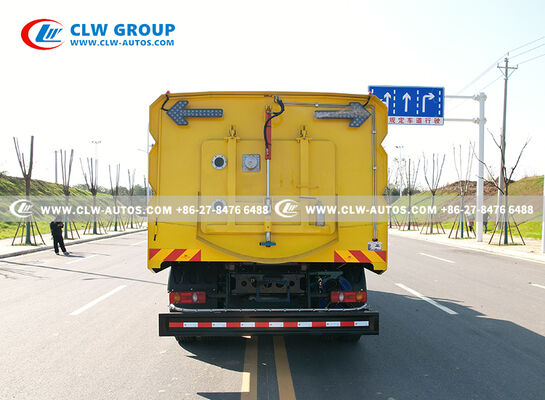

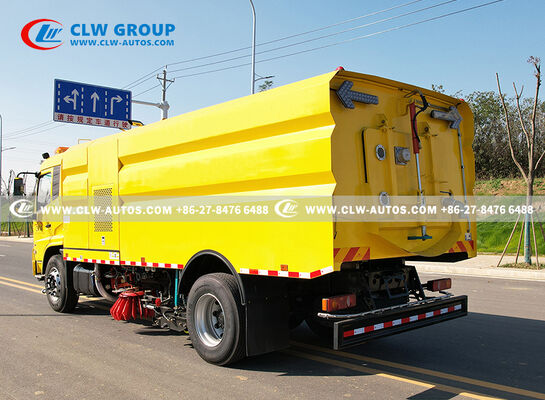

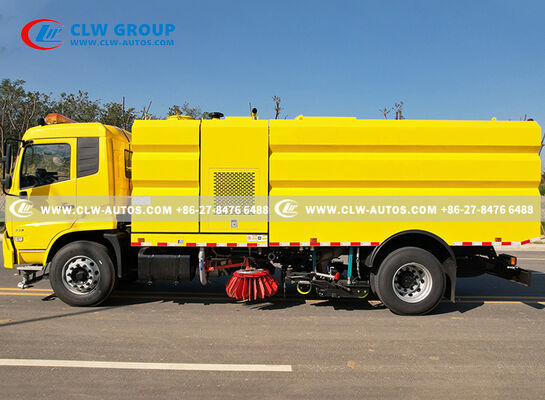

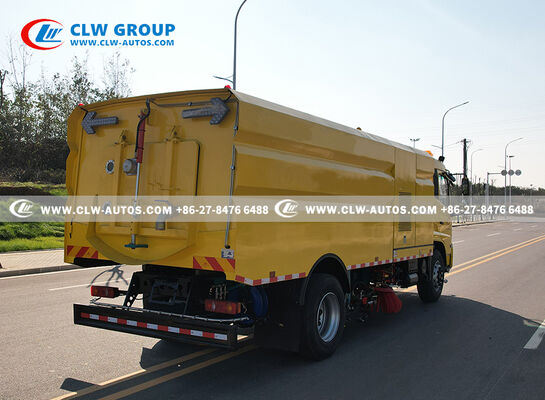

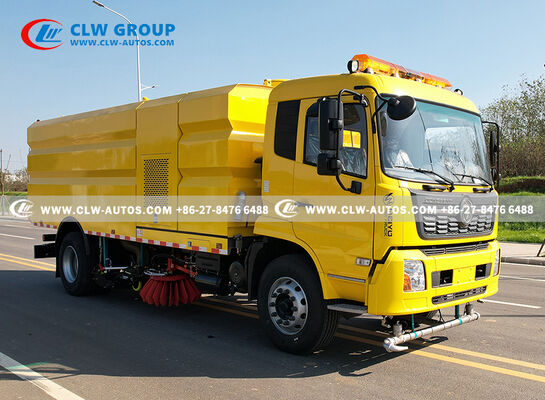

Product Gallery
