Product Details:
Payment & Shipping Terms:
|
| Product Name: | Road Sweeper Truck, Vacuum Sweeping Vehicle | Truck Chassis Brand: | JMC, DONGFENG, HOWO Etc. |
|---|---|---|---|
| Dustbin Capacity: | Optional | Body Type: | Vacuum Sweeper Sweep Sweeping Suction |
| Road Sweeper Tank Shape: | Round, Square | Truck Type: | Water Praying Sweeper Tank |
| Drive Type: | RHD&LHD | Drive Model: | 4X2, 4*2 6-Wheeler 6 Wheels |
| Clean Water Tank: | Optional | Specification: | 3000L, 4000L, 5000L, Small Sizes |
| Color&Logo: | Customized | ||
| High Light: | JMC Truck Mounted Street Sweeper,8CBM Truck Mounted Street Sweeper,142HP City Road Cleaning Machine |
||

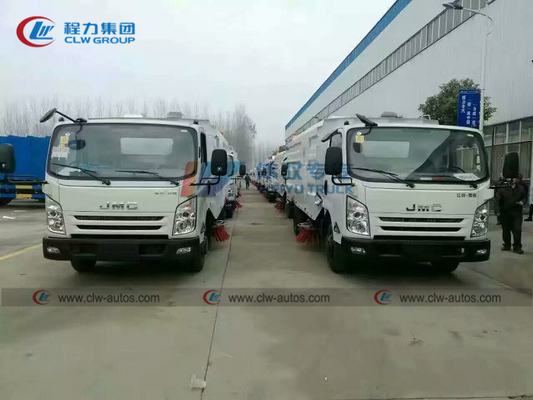

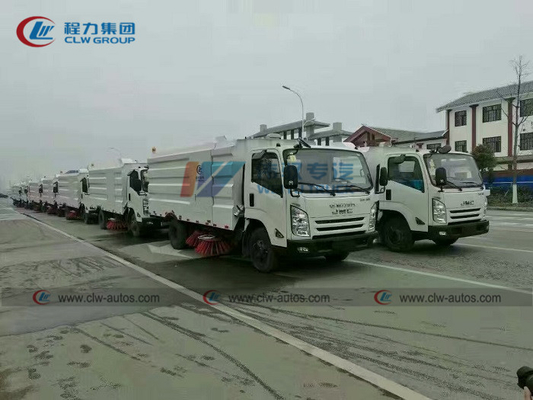

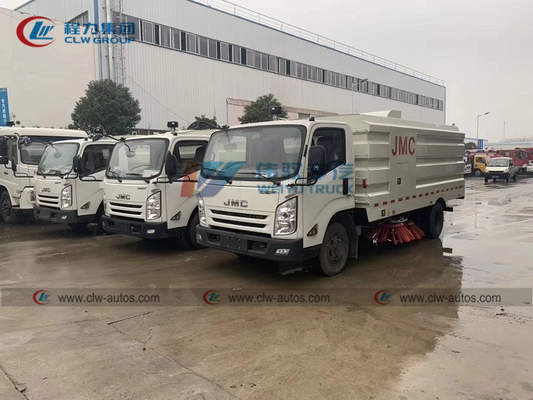

4 X 2 142HP 8CBM JMC Truck Mounted Street Sweeper City Road Cleaning Machine
Product description
| Condition | New condition/Left hand drive/4x2 | ||||
| Chassis | Curb weight(kg) | 3470 | |||
| Wheelbase(mm) | 3815 | ||||
| Dimensions(mm) | 6745*2220*2250 | ||||
| Overhang (front/rear) (mm) | 1150/1780 | ||||
| Wheel track (front/rear) (mm) | 1680/1700 | ||||
| Approach/Departure angle(°) | 24.8/19.6 | ||||
| Axle Load(kg) | 2935/5835 | ||||
| Max. driving speed(km/h) | 100 | ||||
| Brand | JMC |
||||
| Model | JX1090TK23 | ||||
| Tire | Number | 6pcs with one spare tire | |||
| Specifications | 8.25-16LT,8.25R16LT | ||||
| Clutch | Reinforced diaphragm clutch | ||||
| Gear box | Manual type, 6 Forwards & 1 Reverse | ||||
| Cab | It can accommodate three people | ||||
| Engine | Model | YUCHAI YC4E140-33 | |||
| Displacement(ml) | 4260 | ||||
| Power(kw)/Horsepower(HP) | 105/142 | ||||
| Emission standard | Euro 3 |
||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Upper | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(cbm) | 5cbm | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(cbm) | 2.5cbm | ||||
| Auxiliary engine | Model | JMC | |||
| Power(kw) | 56kw | ||||
| Brush | Quantity(pc) | 4 pcs | |||
| Working area(m) | 3.0-3.5m | ||||
| Remarks | 1, With water spray-bar 2, Rear vacuum cleaner 3, Blower 4, Color is optional |
||||
| Optional | 1, Front and rear water spray-bar 2, Visual imaging system 3, Front hydraulic cleaning brush |
||||

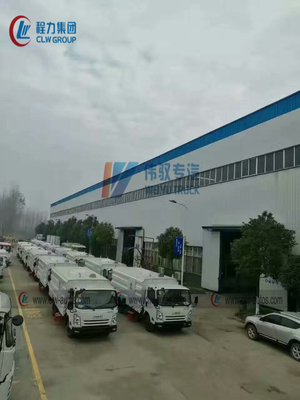

Our Factory
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Contact Person: Mr. Yang
Tel: +86 18672998342
Fax: 86-27-84766488
