Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Isuzu, HOWO, Foton, JAC, Etc. | Dimensions: | 8900*2600*3300mm |
|---|---|---|---|
| Engine Power: | Cummins 170HP | Auxiliary Engine: | Cummins 140HP |
| Dust Tank: | 7CBM, 7cbm, Etc. Stainless Steel 304 | Water Tank: | 2CBM, 2cbm, Etc. Stainless Steel 304 |
| Material: | Stainless Steel | Hand Driving: | Left-Hand Drive Or Right-Hand Drive |
| Operation: | Self-Loading And Discharge | Max. Operation Ability: | 40000-80000 M2/H |
| Max. Working Width: | 2.8m-3.5m | Color And Logo Paintings: | As Per Customer Requirements |
| Warranty: | 1 Year | ||
| High Light: | 9m3 Road Sweeper Truck,Dongfeng Road Sweeper Truck,Cummins Engine Street Sweeper Truck |
||
1. Main parts: stainless garbage bin, water tank, Italy hydraulic oil pump, germany magnetic valve, french Schneider eletronic control unit, auxiliary engine, suction panel, sprinkler system, brush.
2. Struture of sweeper truck: two sweeping brushes in middle+wide suction nozzle and high pressure sprinker nozzles in middle+high pressure sprinkler nozzle at left and right side".
Most sweepers have the option of a hydraulic powered gutter broom on one or both sides of the truck and others use the broom inside the pickup head or dust suppression systems which agitate and move debris out of the curb edges and into the path of the truck while preventing dust
Specification:
| Item | Parameter | |
| Working Performance | Max sweep width | 3.0m |
| Sweep speed | 3-20km/h | |
| Max sweep capacity | 60000m2/h | |
| Max inhalation of granularity | ≥110mm | |
| Angle of unloading | ≥45° | |
| Volume of water tank | 4000L | |
| Volume of garbage tank | 5000L | |
| Driving Performance | Max speed | 90km/h |
| Max gradeability | 30% | |
| Braking distance | ≤10m | |
| Min turning diameter | ≤13.6m | |
| Fuel Performance | Fuel consumption(Driving) | ≤12L/100km |
| Fuel consumption(Sweep working at 8km/h) | 6.5L/h | |
| 2.7L/10000m2 | ||
| Quality Parameters | Curb weight | 6000kg |
| Rated capacity | 6000kg | |
| GVW | 12000kg | |
| Dimension Parameter | Overall dimensions | 7000*2200*2700mm |
| Wheelbase | 4500mm | |
| Track front | 1504mm | |
| Track rear | 1530mm | |
| Front suspension | 1070mm | |
| Rear suspension | 1580mm | |
| Approach angle | 24° | |
| Departure angle | 13° | |
| Minimum Ground Clearance | ||

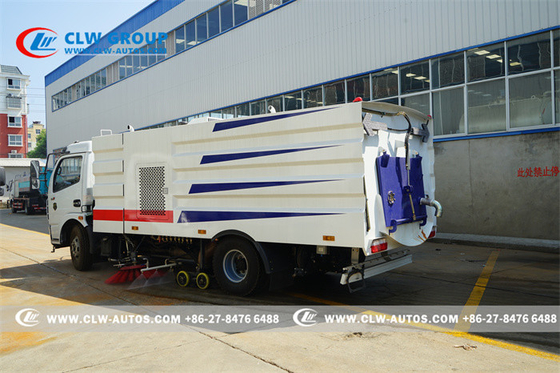

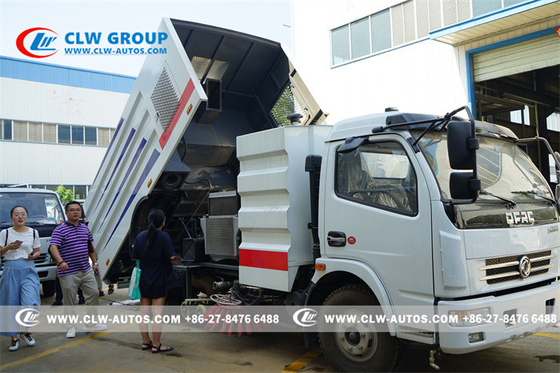

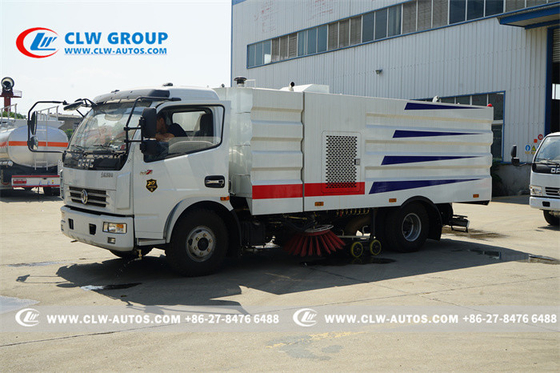

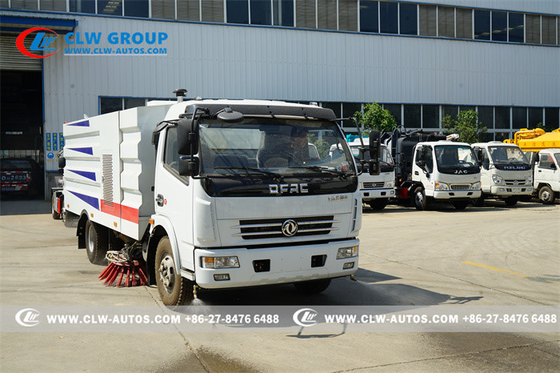

Reference Photos
Truck diagram

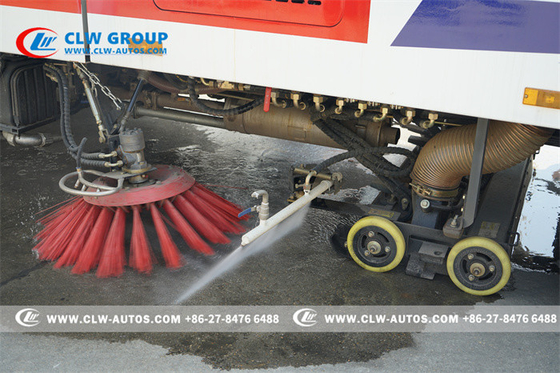

Main Details

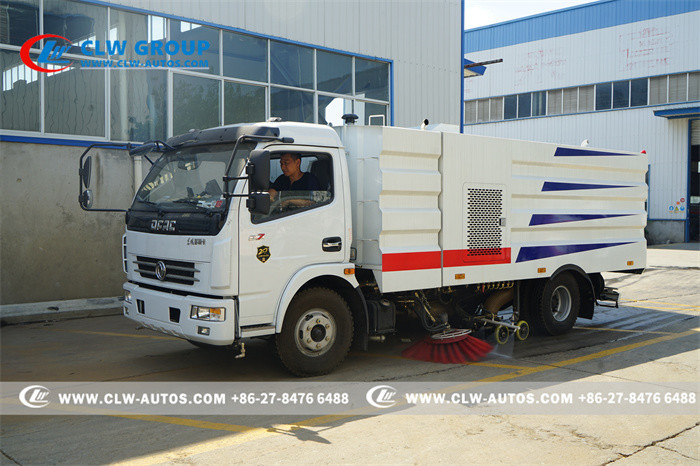

Working Scene
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of dust vacuum suction trucks I can order from your company?
A: There are various sizes of dust vacuum suction trucks,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied dust vacuum suction trucks to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many South America, Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
