Product Details:
Payment & Shipping Terms:
|
| Bran: | Dongfeng, | Engine: | Cummins, Yuchai, Chaochai |
|---|---|---|---|
| Gearbox: | 5 Forward & 1 Reverse | Height: | 12 Meters,14meters, 16meter, 18meters, 20meters |
| Bucket Capacity: | 200kg | Passenger: | 2 Person |
| High Light: | aerial platform truck,aerial work platform truck |
||

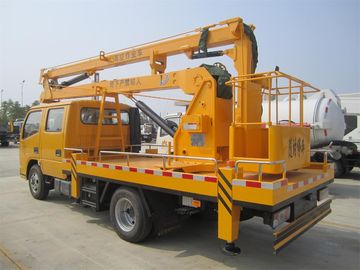

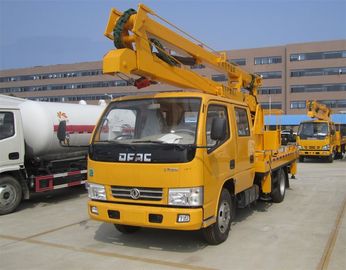

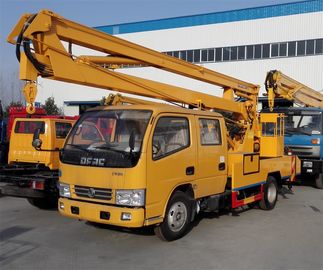

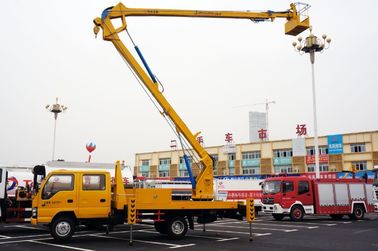

1. Dongfeng Double Row Chassis, can carry 6 Passengers.
2. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
3. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
4. 360 degree Rotation Arms.
5. Arm and H Leg Automatic Locking System to secure safety handling
Specifications of 5cbm road sweeper truck
| Drive model | 4×2 | |
| Chassis | EQ1042 | |
| Overall Dimension L*W*H mm | 7400×1980×3100 | |
| GVW | 4325 kg | |
| Curb weight | 4000 kg | |
| Wheel base mm | 3300 | |
| Wheel track(front/rear) mm | 1506/1466 | |
| Overhang (front/rear) (mm) | 1032/1968 | |
| Approach/Departure angle(°) | 19/111 | |
| Engine | Model | CY4102-C3F |
| Type | Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
| Horse power | 95 hp | |
| Output volume | 3856 ml | |
| Emission standard | Euro III | |
| Max. speed | 90 km/h | |
| Gearbox | 5 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 120 | |
| Tire | 7.00-16 , 7 pieces including one spare tire | |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
| Equipment | Max operation height>=14m; max operation radius>=6m; max working platform height>=12.5m; working platform rating loading=250kg; working platform rating allowable passengers = 2; working platform dimension: 1100*570*1000 mm; protection dimension:180*50*5mm; 360°turning(left or right), 4 H-shape legs. 1.5 ton crane, Insulating material in the cage., the cage can be operated both in the air and on the earth. |
|
| Delivery time | 30 days after the payment | |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of aerial platform trucks I can order from your company?
A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied aerial platform truck to any overseas companies?
A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
