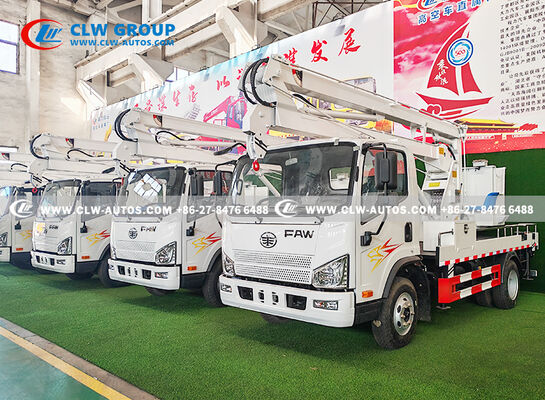

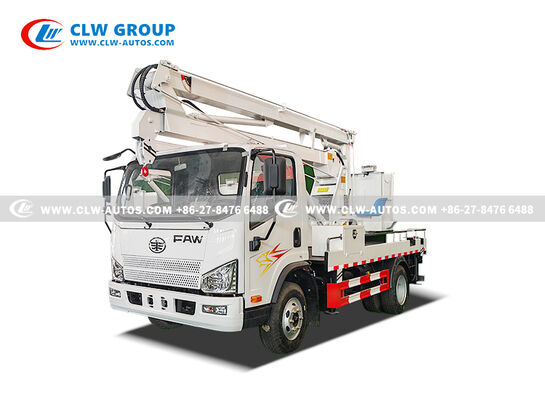

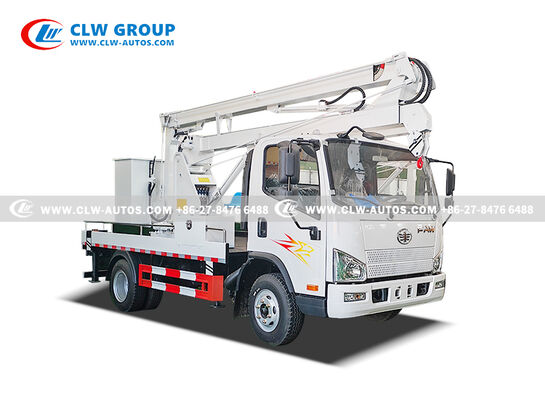

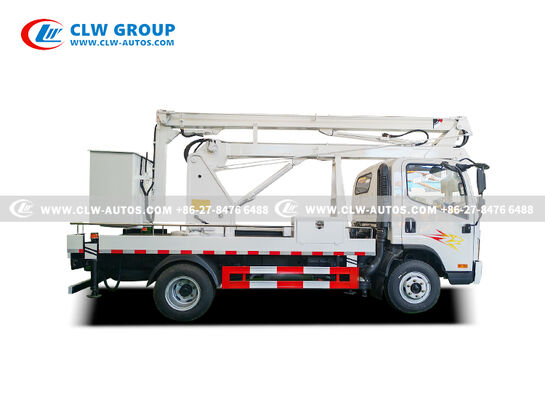

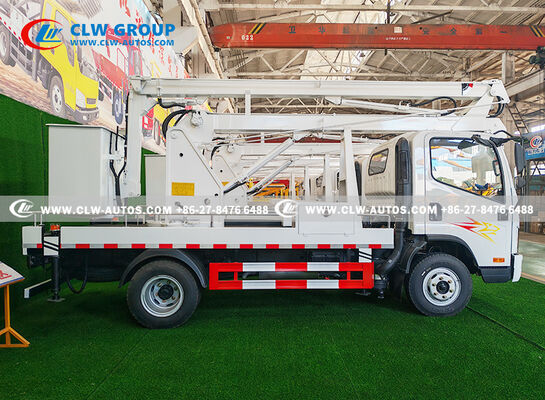

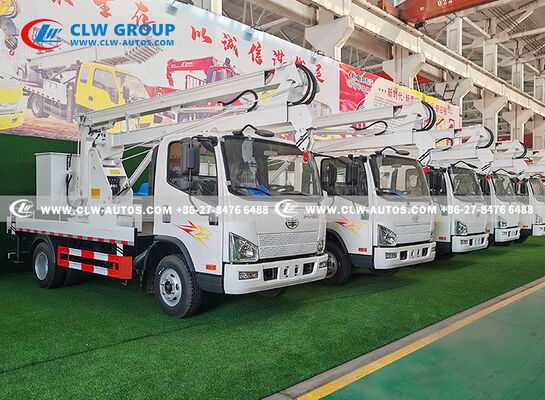

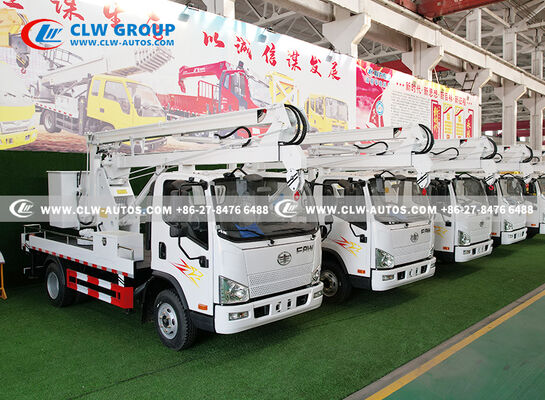

FAW Jiefang 16m Articulated Aerial Work Platform with 600V Insulated Bucket and 4x2 Chassis for Electrical Maintenance

The FAW Jiefang Articulated Aerial Work Platform is a purpose-built elevated access vehicle designed for precision in confined spaces and complex urban environments. Built on the robust FAW 4x2 single-axle chassis with a 3,900mm wheelbase, this vehicle combines proven mobility with a highly versatile 3-section articulated arm.

The boom's unique design allows it to fold from 0 to 70 degrees relative to the horizontal plane, enabling it to effortlessly reach over and around obstacles, making it the ideal solution for complex urban maintenance tasks like street light repair and power line maintenance where straight booms cannot navigate.

The platform is equipped with a fully insulated bucket rated to withstand 600 volts, providing critical protection for operators during electrical repairs. Powering the machine is a Yuchai 4-cylinder, 130 HP engine with a Wanliyang 6-speed manual transmission.

• FAW Jiefang 4x2 Chassis: 3,900mm wheelbase, 2T front axle, 9.8T rear axle. Reliable and stable foundation for lifting tasks.

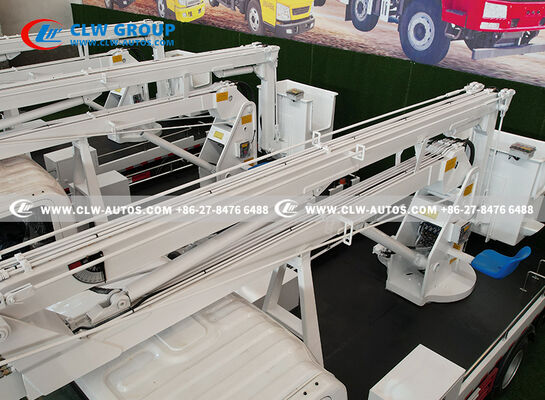

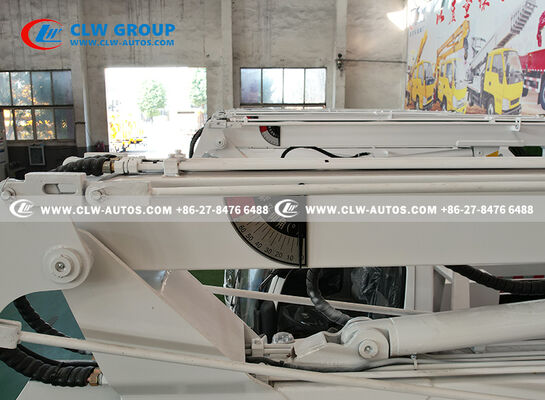

• 16-Meter 3-Section Articulated Boom: Folds 0-70° from horizontal. Exceptional flexibility to reach over and around obstacles. Ideal for complex urban maintenance.
• 600V Insulated Bucket: Fully insulated for electrical safety. Critical protection for high-voltage line maintenance and electrical repairs.
• Yuchai 130HP Engine: 4-cylinder diesel with ample power and fuel efficiency. Wanliyang 6-speed manual transmission.
• H-Type Outriggers with Hydraulic Locks: Front and rear H-type stabilizers. Hydraulic locking devices secure platform firmly on ground.

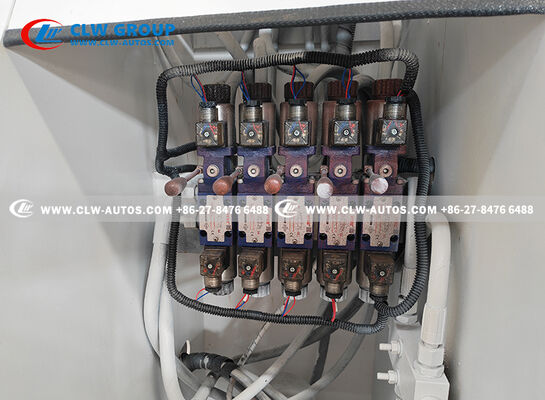

• Robust Hydraulic System: 11 oil cylinders with bidirectional balance valves or hydraulic locks. 65L tank with level gauge. 16 MPa system pressure.
• Durable Q345 Steel Construction: High-strength steel profiles, 4mm thickness. Long-term durability and fatigue resistance.

• Street light maintenance and repair
• Power line and electrical utility maintenance
• Telecommunications tower access
• Building facade inspection and maintenance
• Tree trimming near power lines
• Industrial plant equipment access
• Signage and billboard installation
