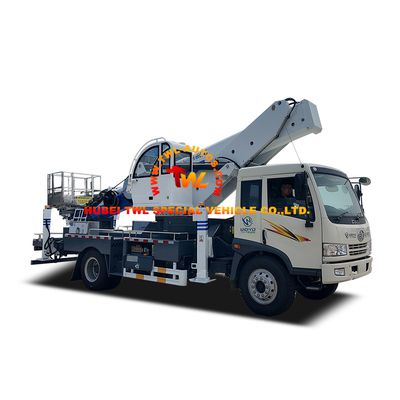

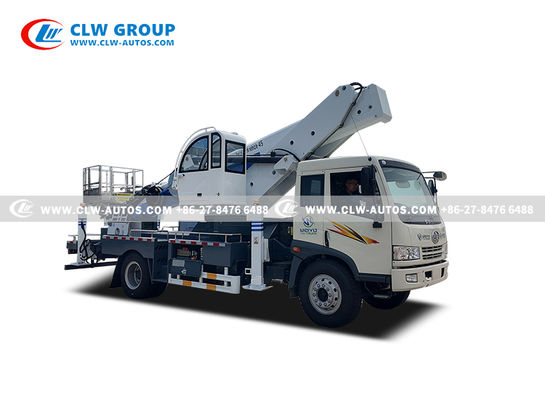

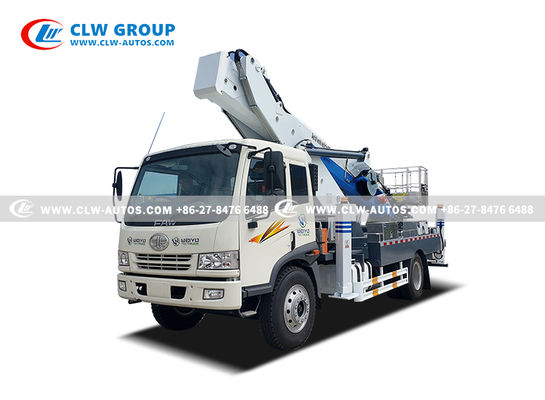

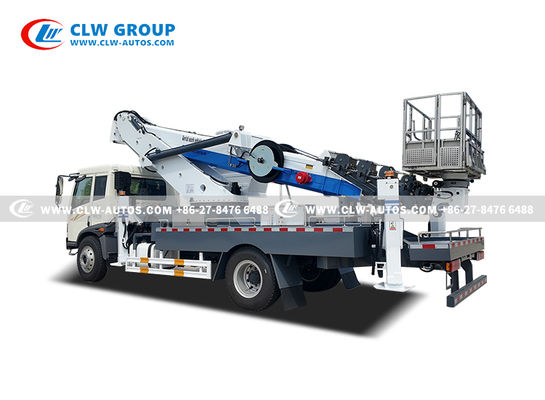

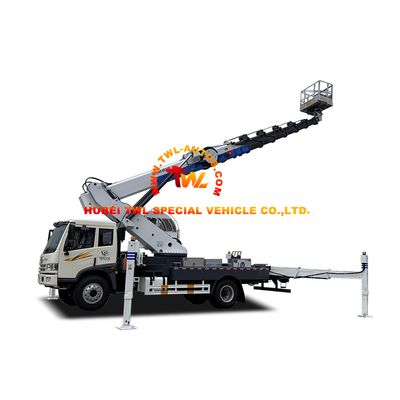

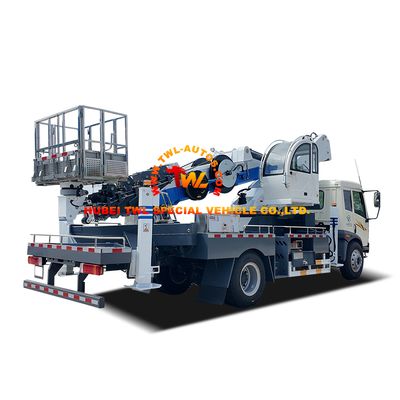

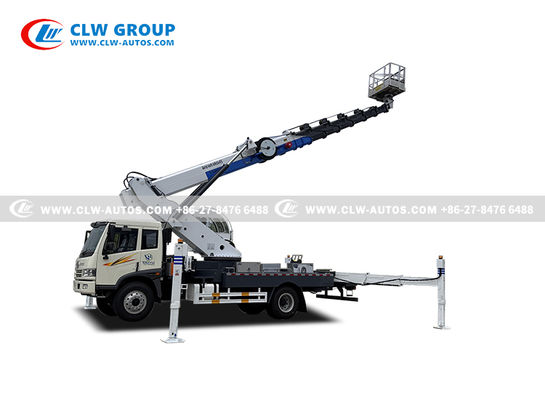

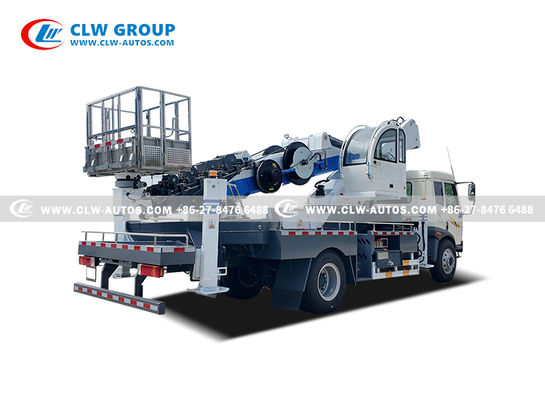

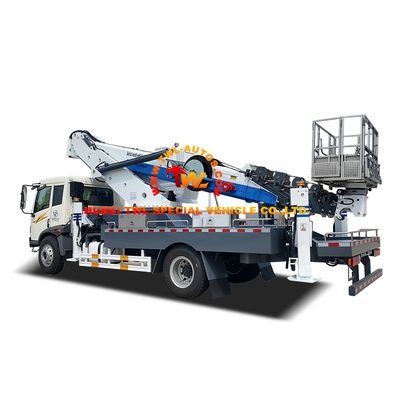

FAW J5K 45m Aerial Work Platform High-Altitude Performance | Maximum Stability | Smart Safety for RHD Markets
The FAW J5K 45-meter truck-mounted aerial work platform is purpose-built to support demanding elevation tasks in right-hand drive (RHD) regions. With its extended working height, reliable structural stability, and advanced safety technologies, it provides an efficient and secure lifting solution for sectors such as municipal services, utility maintenance, construction, and emergency operations in Tanzania, Kenya, Zimbabwe, the Philippines, and other RHD countries.
Key Advantages
1. Extended Height & Wide Operating Range
Reach heights up to 45 meters, enabling easy access to tall infrastructures including power towers, building facades, and overhead signage.
The multi-stage telescopic boom increases horizontal reach, reduces repositioning, and boosts overall site productivity.
2. Safety-Driven & Highly Stable Design
Equipped with a strong hydraulic outrigger system for steady operational support at any height.
Smart safety technologies—overload prevention, tilt alarms, and emergency lowering systems—ensure operational confidence.
Optional anti-collision sensors provide an extra layer of safety for complex work environments.
3. Efficient Performance in Narrow Spaces
The articulated, multi-section boom ensures precise positioning even around obstacles or within confined job sites.
Full 360° platform rotation enables operators to quickly orient toward work areas without vehicle adjustment.
Smooth, responsive motion is delivered by an optimized hydraulic control setup.
4. Smart Control System for Easy Operation
Friendly electro-hydraulic controls are accessible both on the platform and from the ground.
Remote monitoring and fault diagnostic capabilities (available on select configurations) simplify daily maintenance and lower operating risks.
5. Multi-Industry Value
A practical upgrade for operations involving:
-
Municipal Services: Lighting repair, facility maintenance, signage installation
-
Power & Telecom: Overhead line service, tower and network equipment maintenance
-
Construction: Facade works, installation, renovation, or cleaning
-
Emergency Rescue: Fast response for high-rise rescue or firefighting tasks
6. Durable Build with Low Ownership Cost
High-strength steel construction and trusted hydraulic components deliver long-term dependability.
The modular system design reduces downtime and keeps maintenance costs low.
Your Best Aerial Work Partner for RHD Regions
Designed with right-hand drive configurations, the FAW J5K delivers secure, efficient, and stable high-altitude operation. It is more than a vehicle — it’s a productivity-enhancing solution tailored to the needs of professionals across Africa and Southeast Asia.
Products Parameters
| Parameters Of Truck Chassis |
| Overall Dimension(LxWxH) |
9260 x 2550 x 3960 mm |
| Gross Vehicle Weight |
18000 kg |
| Curb weight |
16710 kg |
| Wheel Base |
4700mm |
| Cab |
FAW J5K Cab |
| Right hand drive |
| 2 or 3 seats |
| Air conditioned |
| Engine |
Diesel Engine, Xichai CA6DF2D-18, 180HP, Euro 2 |
| 6 Cylinder in Line, Watering Cooling, Four Stroke, Direct Injection |
| Gearbox |
Manual, FAW CA6TBX075M |
| 6 Forward & 2 Reverse Speed |
| Axle Loading |
Front: G116 axle 5000kg |
| Rear: 435 Punch welding axle 11500kg |
| Tire |
10.00R20 |
| 6 pieces with 1 spare tire |
| Parameters Of Upper Structure |
| Boom type |
7 sections sexangular telescopic boom |
| Max. working height |
45 meters |
| Max. working radius |
20 meters |
| Operating height at maximum operating radius |
5 meters |
| Bucket lifting capacity |
200kg |
| Bucket material |
High-strength stainless steel |
| Bucket size(LxWxH) |
2000x700x1000mm |
| Rotation Angle |
360 degrees continuous rotation for the main boom |
| Landing leg |
4 units, front V rear V type, individually adjustable |
| Transverse span of front leg: 8200m m |
| Lateral span of rear leg: 8900mm |
| Leveling system |
Hydrostatic self-leveling |
| Anemometer |
When wind speed reaches level 5 or higher, the aerial work platform activates the alarm and restricts operations to ensure operator safety. |
| Basket load sensor |
It precisely measures basket's load, enabling operators to monitor current weight and prevent overload-related safety incidents. |
| Control method |
Remote controller with monitor showing display arm length, working height, working radius, tilt angle in English |
| Manual control on the platform with monitor showing display arm length, working height, working radius, tilt angle in English |
| Manual control in the operator’s cabin |
| Hoarding&walking platform |
Stainless steel fence and anti-slip walking platform |
| Remarks |
Color is optional, customized LOGO painting as per client’s request |
|
|
| |
|
