Product Details:
Payment & Shipping Terms:
|
| Material: | Q345R,Q370R,Q420R | Standard: | GB150-2011,GB/T19905-2005,ASME VIII Section II |
|---|---|---|---|
| Tank Capacity: | 10MT,10TON,10t,10tons | Tank Size: | 20cbm,20000liters,20000litres20000L |
| Tire: | 10R22.5,10 Pcs With One Spare | Thickness: | 10mm |
| Level Gauge: | Manual Rotator Or Rochester Floatball | Color: | White,red,customized |
| High Light: | propane service truck,fuel transport trucks |
||

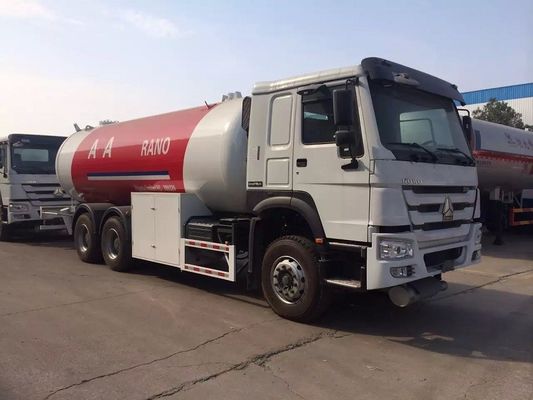

10ton lpg delivery truck howo 20000liters lpg gas delivery truck for Nigeria
Product Description
1) lpg delivery truck is used to transport or deliver lpg or liquid petroleum gas mobile and supply lpg to lpg stations.We can supply lpg bobtail truck from 2ton to 18ton.
2) Manufacturing standards of lpg delivery truck: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
3) Optional accessories of plpg delivery truck: ROCHESTER level gauge,flow meter,sunshelter
4) optional equipment oflpg delivery truck:flow meter or computer controled filling machine,chinese lpg pump or corken,blackmer pump.
5)
Specifications of 10ton lpg delivery truck howo 20000liters lpg gas delivery truck for Nigeria
| Item No. | Parameters |
| Overall Dimension | 10590x2495x3350 mm |
| Driving Model | Left hand drive |
| Gross Vehicle Weight | 25000 kg |
| Curb Weight | 14000kg |
| Payload | 10000kg(10Ton) |
| Wheel Base | 4600+1350 mm |
| Front/rear Tread | 2022/1830 mm |
| Approach/Departure Angle | 16/12 degree |
| Front Axle | HF7,7000kg |
| Rear Axle | ST16,16000kgX2 |
| Engine |
WD615.87,4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inner cooling |
| Engine horsepower | 290HP EUROII |
| Displacement | 9760mL (Diesel) |
| Max Driving Speed | 95 km/h |
| Gearbox | HW19710 |
| Cabin | Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner |
| Tire | 12R22.5 (11 pieces) |
| LPG tank | |
| Volume: | 20cbm |
| Tank material: | Q345R |
| Tank diameter: | 2050mm |
| Tank thickness: | 10mm |
| End plate | 10mm |
| Tank length: | 7644mm |
| Gas phase | DN50 |
| Liquid Phase | DN80 according to Niger market |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Accessory | |
| Level Gauge | Rochester float-ball level gauge |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher | 2 |
| Exhaust shaft | At the front of truck for safety |
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
