HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsLPG Gas Tanker Truck

12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

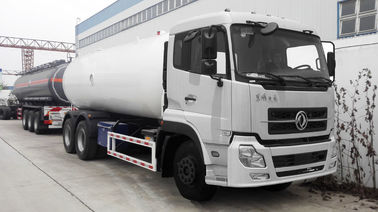

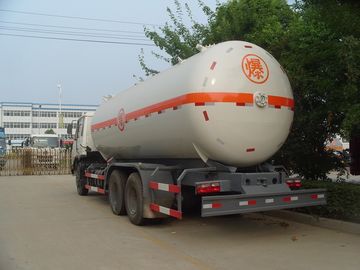

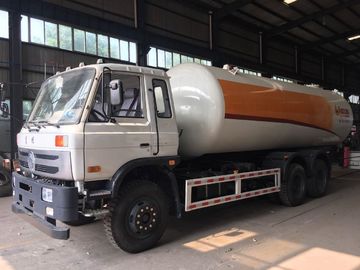

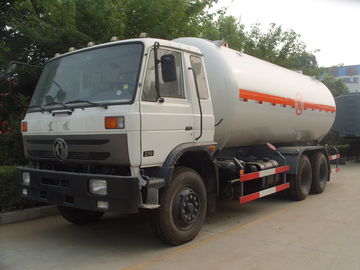

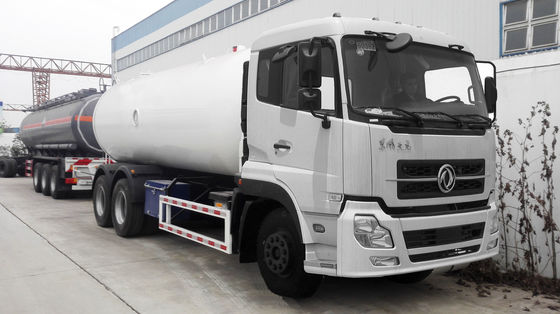

12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox

12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox
12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox 12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox 12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox 12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox

Large Image :  12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox

Product Details:

Place of Origin: CHINA
Brand Name: CLW
Certification: ASME,CCC,BV,SGS
Model Number: CLW5250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Naked Pack, Bulk Shipment, Roll-Roll
Delivery Time: 30Day against Payment Receipt
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Material: Q345R, Q370R, Q20R, SA516 GR70 Design Standard: GB150-2013, ASME VIII DIV 01
Design Pressure: 1.61Mpa, 16.1 Bar /PSI Hydraulic Test Pressure: 2.2Mpa, 22Bar
Radiographic Test: 100% X-ray Radiographic Test Material Thickness: 10mm Or As Request
Level Gauge: REGO Rotogage, Rochester Or Others Safety Valve: Inbuild Safety Valve
Vavle Type: Flange Type, Quick Coupling, NPT Thread Coupling Vavle Size: 1", 2", 3", DN25, DN50, DN80,
Corrosion Allowance: 1.0mm
High Light:

bobtail propane truck

,

fuel transport trucks

12Ton 25m3 Dongfeng LPG Gas Delivery Mobile TankTruck with Cummins Engine & FAST Gearbox





Product Description





1. Dongfeng High End Kinland Chassis: Cummins Diesel Engine in 220HP to 340HP, Fast Gearbox, Heavy Duty Axles.



2. Optional Tank Materia: Chinese Standard Tank Q345R/Q370R, or ASME Standard SA516



3. High Standard Tank Manufacturing, Full tank in Submerged Arc Welding



4. 100% Tank Radiographic Test, with Magnetic Power Test for the nozzle.



5. Hydraulic Tank Test Pressure & Air Tight Test after full Assembly.









Specifications of 12Ton Dongfeng 25m3 LPG Gas Delivery Mobile  Tank Truck



Item No. Parameters
Overall Dimension 11200 x 2500 x 3480 mm
Driving Model 6x4
Gross Vehicle Weight 26000 kg
Curb Weightfffffffffff 14000kg
Payload 12000kg(12Ton)
Wheel Base 4700+1300 mm
Front/rear Tread 2022/1830 mm
Approach/Departure Angle 16/12 degree
Front Axle 6000kg
Rear Axle 13000kg
Engine Cummins B210 33,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower 210HP EUROII
Displacement 5900 mL (Diesel)
Max Driving Speed 95 km/h
Gearbox FAST 8 Forward & 1 Reverse
Cabin LHD OR RHD, 2~3 Passenger allowed,with Air Conditioner
Tire 12R22.5 (11 pieces)
LPG tank
Capacity: 20cbm
Tank material: Q345R
Diameter: 2100mm
Tank thickness: 10mm
End plate 10mm
Tank length: 7644mm
Gas phase DN50, DN80, 2" /3"
Liquid Phase DN50
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Accessory
LPG Pump 1 pc
Filling hose with filling nozzle 15M
Level Gauge Rochester float-ball level gauge
Safety Valve 1,DN80
Tool and Valve Box 1
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher 2
Exhaust shaft At the front of truck for safety


12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox 0



12 Ton 25m3 LPG Gas Tanker Truck Dongfeng Kinland DFAC Truck With Cummins Engine / FAST Gearbox 1





Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment







FAQ



Q1: What kinds of LPG products I can order from your company?


A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.



Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?


A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.



Q3: Have you supplied LPG products to any renowned companies?


A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.



Q4: What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
