6mt Road Cleaning Vaccum Isuzu Sweeper Truck High Efficiency Sweeping

Good quality LPG Gas Storage Tank for sales
Good quality LPG Gas Storage Tank for sales
I'm Online Chat Now

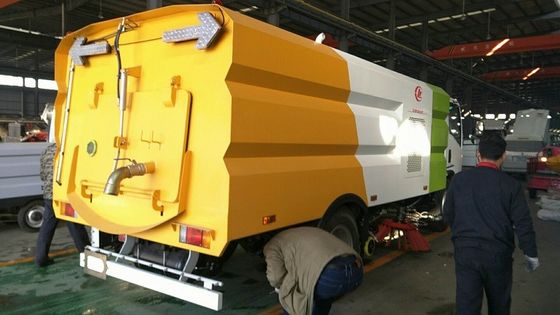

6mt Road Cleaning Vaccum Isuzu Sweeper Truck High Efficiency Sweeping

China 6mt Road Cleaning Vaccum Isuzu Sweeper Truck High Efficiency Sweeping supplier
6mt Road Cleaning Vaccum Isuzu Sweeper Truck High Efficiency Sweeping supplier 6mt Road Cleaning Vaccum Isuzu Sweeper Truck High Efficiency Sweeping supplier 6mt Road Cleaning Vaccum Isuzu Sweeper Truck High Efficiency Sweeping supplier 6mt Road Cleaning Vaccum Isuzu Sweeper Truck High Efficiency Sweeping supplier

Large Image :  6mt Road Cleaning Vaccum Isuzu Sweeper Truck High Efficiency Sweeping

Product Details:

Place of Origin: Suizhou,China
Brand Name: clw
Certification: CCC,SGS,BV
Model Number: clw5100A8LAY

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: negotiable
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit at account
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 500 Units per month
Contact Now
Detailed Product Description
Truck Brand: Dongfeng,ISUZU,FAW,HOWO,JMC,JAC Availble Size: 4cbm.5cbm,6cbm,8cbm
Drive Model: 4X2 6X4/6wheel Or 10 Wheel No Of Sweeping Brush: 2 Or 4
Size Of Water Tank: 6000liters,6cbm,6cbm,6000liters Szie Of Dust Bin: 5cbm,4cbm,3cbm

6mt isuzu road cleaning truck 6ton vaccum road sweeper truck for Cambodia



Product Description





1. Purpose: road cleaning truck also named as road cleaning truck is a new high-efficient sweeping equipment which has multi-functions like road washing,sprinkling,garbage collecting and transportation...Sweeper truck can be widely used in main city road,airport road,residential area road,park,terminal,square,cement factory,power plant and etc.



2. Main parts: stainless garbage bin,water tank,Italy hydraulic oil pump,germany magnetic valve,french Schneider eletronic control unit,auxiliary engine,suction panel,sprinkler system,brush.



3. Struture of road cleaning truck:two sweeping brushes in middle+wide suction nozzle and high pressure sprinker nozzles in middle+high pressure sprinkler nozzle at left and right side".



4) road cleaning truck adapts Interligent one-key control technology,all operations are completed in the cabin.



5) On the basis of one-key control technology, the manual throttle control system of the auxiliary engine is added, which can independently adjust the throttle size according to the road condition, effectively enhancing the cleaning effect and reducing fuel consumption.



6) As many as 16 voice prompts and music alarm can broadcast of various safety tips and failure points accurately.





Specifications of 6mt isuzu road cleaning truck 6ton vaccum road sweeper truck for Cambodia





Cabin

Driving type 4x2 LHD

single row,with A/C ,with two seats,audio with USB,

Vehicle Main Dimensions Overall dimensions (L x W x H)mm 7600×2300×2700
Wheel base (mm) 4175
Wheel track (front/rear) (mm) 1680/1650
Approach/Departure angle(°) 17/12
Weight in KGS Tare Weight 7420
payload 2440
Front axles loading capacity 1x3360
Rear axles loading capacity 1x6695
Max. driving speed(km/h) 110
Engine Brand ISUZU
Model 4HK1-TCK40
Horse Power(HP) 189
Emission standard EuroV
Gearbox 6 forwards & 1 reverse
Steering left hand drive
Tire 8.25-16,6 tires with one spare
Max. Cleaning Width 3M
Sweeper Speed 3~20 km/h
Max. Cleaning Capacity 60000 m2/h
Max. Suction grain size ≥110mm
Dumping angle ≥45°
Hopper 5000liters,double layer,Stainless steel inside
Water tank 6000Liters
Auxiliary Engine Model&Manufacturer JIANGLING JX493ZQ
Type Four-injection,water-cooling,turbo-charged,diesel engine
Power 77hp/3600r/min
Max. Rotation Speed 2400r/min
Oil type 0# Diesel,share the same fuel box with chassis
Aerator Type High pressure centrifugal Aerator
Curb rotation speed 2600-2900r/min
Driving model Driven by auxiliary engine and transferred by transmission parts,clutch and belts
Hydraulic System Type electro-hydraulic Centralized Control
Main parts Gear pump,gerotor motor,hyraulic oil cylinder,magnetic valve,manual pump
Overflow pressure 14MPa
Hydraulic oil type L-HV46(when temperature is 30℃-5℃)
L-HM46(when temperature is 5℃-40℃)
Hydraulic oil box 70L
Water sprinkling Main parts Water pump,water filter,sprinkler,water box
Electrical system Con-structure Two batteries(in series)
Voltage 24V
Battery model 12-80A.H
Sweeping System Type

Fours brushes installed between front and rear axle,driven by gerotor motor.

Left and right brushes are controlled to lift up and down separately.

Rear brushes and suction nozzle are gang controlled for up and down.

Sweeper Diameter 900mm
Sweeper rotation speed 80r/min
Sweeper angle adjustment Forerake 4°-6°and extroversion 2°-4°
Suction Nozzle Type U-shaped
Nozzle diameter 200mm
Nozzle ground clearance when operation 5-10mm



6mt Road Cleaning Vaccum Isuzu Sweeper Truck High Efficiency Sweeping
6mt Road Cleaning Vaccum Isuzu Sweeper Truck High Efficiency Sweeping
6mt Road Cleaning Vaccum Isuzu Sweeper Truck High Efficiency Sweeping



Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of sweeper trucks I can order from your company?


A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied sweeper products to any overseas companies?


A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
