HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsLPG Gas Tanker Truck

20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

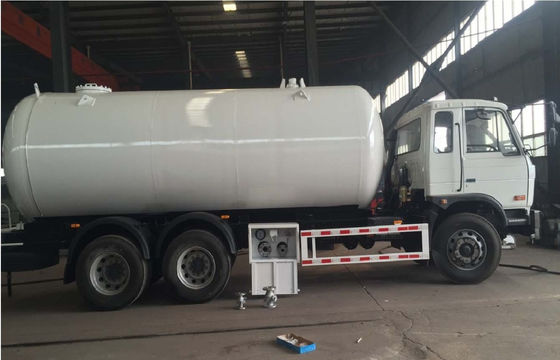

20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter

20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter
20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter 20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter 20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter 20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter 20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter 20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter

Large Image :  20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter

Product Details:

Place of Origin: CHINA
Brand Name: CLW
Certification: ASME,CCC,BV,SGS
Model Number: CLW5250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Naked Pack, Bulk Shipment, Roll-Roll
Delivery Time: 30Day against Payment Receipt
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Material: Q370R, Q420R, SA516 Standard: GB150-2013, ASME VIII DIV 01
Design Pressure: 1.61Mpa, 16.1 Bar /PSI Water Pressre Test: 2.2Mpa, 22Bar
Radiographic Test: 100% X Ray Radiographic Test Material Thickness: 10mm Or 12mm
Level Meter: REGO Rochester Or Others Safety Valve: 2", 3" ,4"
Vavle Type: NPT, Flange Class 300, Quick Coupling Vavle Size: 1"/DN 25, 2"/DN50, 3"/DN80
Corrosion Allowance: 1.0mm Tank Shape: Horizontal Cylinder Shape
High Light:

propane service truck

,

fuel transport trucks

20000Liter 10Ton LPG Rigid Bobtail Truck with Rochester Level Gauge LC Flowmeter



Product Description



20000Liter 10Ton LPG Rigid Bobtail Truck with Rochester Level Gauge LC Flowmeter



1. Dongfeng Truck: 210HP Cummins Engine, 8 Forward & 1 Reverse Gear, 5Ton Front Axle & 10Ton Rear Axle



2. Tank Design: Horizontal cylinder Type, Bullet Tank, with elliptical or hemisphercial dish end.



3. Tank Test: 100% Radio Radiographic Test, Magnetic Power Test, Water Pressure Test, Air Tightness Test



4. Dispensing System: 2" Hyrdaulic Truck Pump, 2" Flow Meter, 15meters Hose Reel for commercial Fillings





Specifications of 20000Liter 10Ton LPG Rigid Bobtail Truck with Rochester Level Gauge LC Flowmeter



Item No. Parameters
Overall Dimension 11200 x 2500 x 3480 mm
Driving Model 6x4
Gross Vehicle Weight 26000 kg
Curb Weightfffffffffff 14000kg
Payload 12000kg(12Ton)
Wheel Base 4700+1300 mm
Front/rear Tread 2022/1830 mm
Approach/Departure Angle 16/12 degree
Front Axle 6000kg
Rear Axle 13000kg
Engine Cummins B210 33,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower 210HP EUROII
Displacement 5900 mL (Diesel)
Max Driving Speed 95 km/h
Gearbox FAST 8 Forward & 1 Reverse
Cabin LHD OR RHD, 2~3 Passenger allowed,with Air Conditioner
Tire 12R22.5 (11 pieces)
LPG tank
Capacity: 20cbm
Tank material: Q345R
Diameter: 2100mm
Tank thickness: 10mm
End plate 10mm
Tank length: 7644mm
Gas phase DN50, DN80, 2" /3"
Liquid Phase DN50
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Accessory
LPG Pump 1 pc
Filling hose with filling nozzle 15M
Level Gauge Rochester float-ball level gauge
Safety Valve 1,DN80
Tool and Valve Box 1
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher 2
Exhaust shaft At the front of truck for safety

20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter 0




20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter 1

20000 Liter 10 Ton LPG Gas Tanker Truck Rigid Bobtail Truck With Rochester Level Gauge LC Flowmeter 2





Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment







FAQ



Q1: What kinds of LPG products I can order from your company?


A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.



Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?


A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.



Q3: Have you supplied LPG products to any renowned companies?


A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.



Q4: What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
