Product Details:
Payment & Shipping Terms:
|
| Main Material: | Q345R,Q370R,Q420R, SA516 | Standard: | GB150-2011,GB/T19905-2005,ASME VIII Section 01 |
|---|---|---|---|
| Tank Capacity: | 25Ton, 54000 Liters | Tank Size: | 49600liters,49600L,49.6cbm |
| Axle Brand: | BPW,FUWA,YORK,HJ | Thickness: | 12mm |
| Sunshade: | Aluminum Sunshade | Vapor Nozzzle: | NPT/Flange Type 1",2".3" |
| Liquid Nozzle: | NPT/Flange Type 1",2".3" | Internal Valve: | REGO, MEC Or Others |
| High Light: | bobtail propane truck,fuel transport trucks |
||

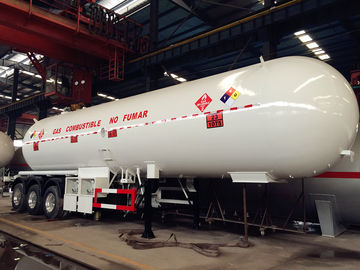

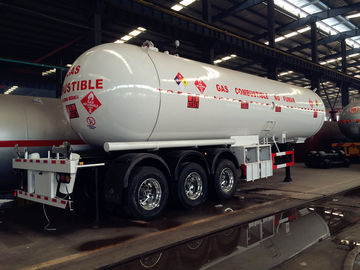

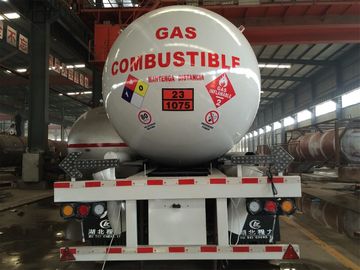

LP Gas Delivery Semi-Trailer Truck 14000Gal 54000liters in Hemispherical Dish End Tank
Product Description
LP Gas Delivery Semi-Trailer Truck 14000Gal 54000liters in Hemispherical Dish End Tank
1. Medium: LP GAS, Propane, Butane, Ammonia, etc.
2. Desing Pressure: 1.61Mpa/ 16.1bar, 1.91bar/19.1bar.
3. Tank Shape: Bullet Tank in Horizontal Cylinder Shape
4. Tank Nozzle Type: Flange Type, NPT, Quick Coulping.
5. Valve Brand: REGO, MEC, Rochester.
Specifications of LP Gas Delivery Semi-Trailer Truck 14000Gal 54000liters in Hemispherical Dish End Tank
| 50BM LPG Tank Trailer | ||
| Volume of Tank | 54 CBM / 54,000Liter | |
| Trailer Weight | 15,000 kg | |
| Thickness of Shell (mm) | 11.5 mm | |
| Thickness of Endplate (mm) | 8 mm | |
| Tank Diameter (mm) | 2300 mm | |
| External Dimensions (mm) (length x width x height) | 13000 x 2500 x 3950 mm | |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |
| Filling Medium | Propane | |
| Design Pressure | 1.61 MPa / 16.1 Bar | |
| Hydraulic Test Pressure | 2.20 Mpa / 22.0 Bar | |
| Air Tightness Test | 1.61 MPa / 16.0 Bar | |
| Corrosion Allowance | 1 mm | |
| Filling Ratio | 520 kg/ cbm | |
| Manufacturing Standard | GB 150-2003 | |
| Chassis Specification | ||
| Item | Specification | |
| Main Beams | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes | |
| Axle | 3 pieces of German Brand BPW Axle | |
| Landing Gear | JOST Two-speed, manual operating, heavy duty landing gear | |
| King Pin | JOST 2”standard bolt-in king pin | |
| Suspension | German design mechanical suspension | |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
| Tire | 11R22.5 tubeless tire, 8.25R22.5 wheel rim, 12 Sets with one spare tire | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |

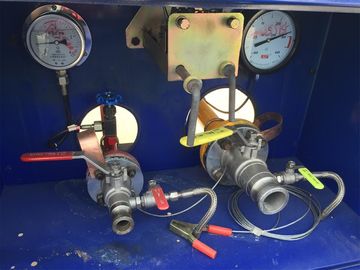

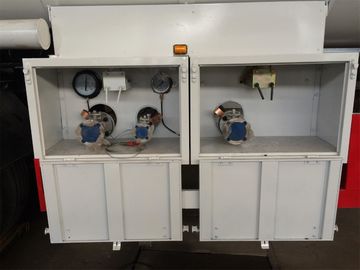

| Nozzle Specification | |
| Liquid Inlet & Outlet Coupling | 2 No, 2" Flange Type |
| Vapour Coupling | 1 No, 2" Flange Type |
| Safety Relief Valve | 1 Nos., 2” NPT, |
| Excess flow internal valve for liquid inlet &outlet | 2 No., 2” NPT, |
| Excess flow internal valve for vapor | 1 No., 2” NPT |
| Pressure gauge | 1 No., 3/8”or ¼’’NPT, 4” Dial 0-35 Kg/cm2, |
| Needle valve for pressure gauge | 1 No., 3/4” NPT, |
| Temperature gauge | 1 No., ½ ” BSP,4” Dial 0-100 0C, |
| Rotor gauge | 1 No., 1” NPT, |
| Ball valve for liquid inlet & outlet | 2 No., 2” Single Piece Full Bore Class 300 |
| Ball valve for vapor line | 1 No., 2 ” Single Piece Full Bore Class 300 |
| Manhole | DN 450MM |
How do we produce a lpg tanker trailer?
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
