Payment & Shipping Terms:
|Box Material:||Carbon Steel Q235B||Truck Brand:||Dongfeng|
|Truck Engine:||Cummins||Gearbox:||Fast 8Forward & 1 Reverse|
|Tire:||7.00-16, 7.00R16||Axle:||2.5Ton Front Axle & 5Ton Rear Axle|
|Purpose:||Road Sweeping||Sweeper:||4 Pieces, 2 Piece At Each Side|
street sweeper vacuum truck,
street cleaner truck

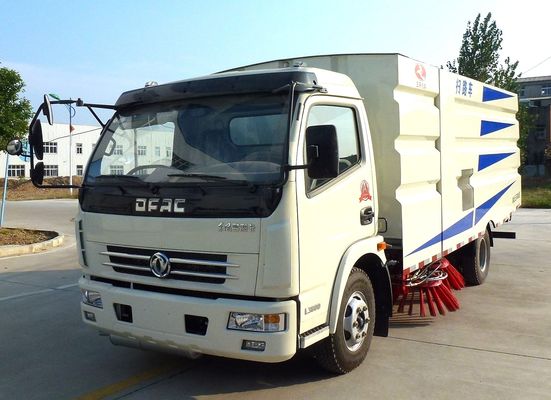

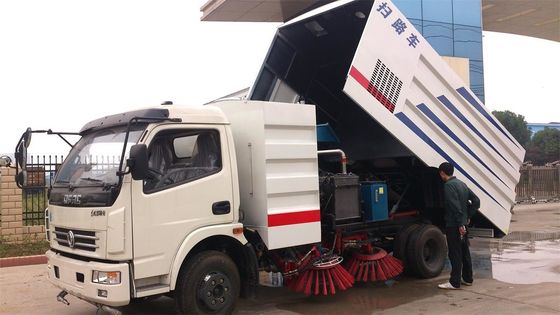

8CBM Street Sweeper Truck with Water Spraying 4pcs Sweeper for Garbage Cleaning
Specifications of 5cbm road sweeper truck
|Road Sweeper Truck|
|Overall Dimension||6830 x 2210 x 2650 mm|
|Curb Weight||5700 kg|
|Loading Weight||3000 Kg|
|Wheel Base||3800 mm|
|Front/rear Tread||1095 / 1475 mm|
|Approach/Departure Angle||21 / 14 degree|
|Cabin||Dongfeng, Left Hand Driving, with Air Conditioner,|
|Engine||Cummins B140 33 Diesel Engine, 4 Stroke 4 Cylinder in Line, Turbo Charge, Intercooling,|
|Gear Box||5 Forward Gear & 1 Reverse Gear,|
|Brake||Pneumatic Control Pump|
|Steering Gear||Hydraulic Power Steering|
|Tire||7.00-16, 6 Piece with 1 Spare|
|Fuel Tank||100 Liters|
|Dust Bin||6 m3||Water Bin||2 m3|
|Material of Both Bin||Stainless Steel||Engine||JMC JX493G3, 77HP,|
|Brush Quantity||4 Pieces||Brush Diameter||900mm|
|Work Width||3.0-3.5 meters||Working Speed||3-15 km/h|
|Dust Bin Tipping System||Hydraulic Tipping||Dust Bin Tipping Angle||More than 40 degree|
|Dust Cleaning Percentage||90-95%||Maximum Capacity||45000 m2/h|
|Sucking Object Diameter||less than 50mm (coal)||Working Duration||4 hours|
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
