12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning

12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning
12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning 12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning 12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning 12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning 12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning 12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning

Large Image :  12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning

Product Details:

Place of Origin: China
Brand Name: CLW / Chengli
Certification: CCC,ISO,
Model Number: CLW5100ZYST3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T
Supply Ability: 500Unit Per Month
Detailed Product Description
Box Material: Carbon Steel Q235B Truck Brand: Dongfeng Kingrun
Gearbox: Fast 8Forward & 1 Reverse Tire: 9.00R20, 10.00R20
Axle: 5Ton Front Axle & 10Ton Rear Axle Purpose: Road Sweeping
Sweeper: 4 Pieces, 2 Piece At Each Side Water Tank: 4000Liter
Garbage Tank: 8000Liters Auxiliary Engine: Cummins Engine 140HP
High Light:

mechanical sweeper truck

,

street cleaner truck

12cubic meter Combined Road Cleaning Sweeper Truck with Vacuum Sweeping & Water Cleaning

Product Description



12cubic meter Combined Road Cleaning Sweeper Truck with Vacuum Sweeping & Water Cleaning

  • Best Choice for Road Sweeping with both Garbage Tank & Water Tank
  • Garbage Tank: DN100 Suction Hose with 2 wheels Sunction Pan.
  • Water Tank: with Water Filter & Level Gauge.
  • Auxiliary Cummins Engine 140HP to Supply Power for the whole system.
  • Wind Suntion System to suck up the garbage.
  • Sweeping System: 4 Brush totally, 2 Brush at each side



Specifications of12cubic meter Combined Road Cleaning Sweeper Truck



12CBM Road Sweeper Truck
Item No. Parameters
Overall Dimension 8090 x 2470 x 3050 mm
Curb Weight 9750 kg
Loading Weight 6055 Kg
Wheel Base 4475 mm
Front/rear Tread 1430 / 1960 mm
Approach/Departure Angle 20 / 12 degree
Cabin Dongfeng Kingrun, Left Hand Driving, with Air Conditioner, Electrical Window, Central Lock.
Engine Cumins Diesel Engine, 190HP, 5.193Liter, 4 Cylinder in Line, Turbo Charge, Water Cooling
Gear Box FAST 8 Forward Gear & 1 Reverse Gear,
Brake Pneumatic Brake
Steering Gear Hydraulic Power Steering
Tire 9.00R20, 6 Piece with 1 Spare
Fuel Tank 160 Liters
Sweeping System
Dust Bin 8 m3 Water Bin 4 m3
Material of Both Bin Stainless Steel Engine Cummin B140, 140HP
Brush Quantity 4 Pieces Brush Diameter 900mm
Work Width 3.0-3.5 meters Working Speed 3-15 km/h
Dust Bin Tipping System Hydraulic Tipping Dust Bin Tipping Angle More than 40 degree
Dust Cleaning Percentage 90-95% Maximum Capacity 16,000 - 64,000 m2/h
Sucking Object Diameter less than 50mm (coal) Max Truck Speed 90 km/h

Function Specification:

1. All Controlling System are Inside the Cabin Easy for Handling.

2. All Stainless Steel Dust Bin & Water Bin.

3. Separated Engine Support Hydraulic Pump & Suction Machine.

4. Hydraulic Pump Control Left & Right Brush Can Work Separately or Simultaneously.

5. Left & Right Brush System are Patented by Chinese Government for Avoiding the Obstacle.

6. Major Hydraulic Parts are Imported Good Quality parts.

7. Water Spraying System to Control Dust on Road.

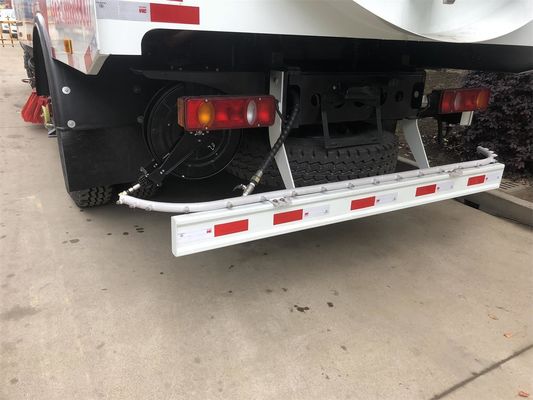

Product Photos


 12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning 0

12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning 1

12 Cubic Meter Street Cleaner Truck , Combined Road Washing Truck With Vacuum Sweeping / Water Cleaning 2





Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipmen


FAQ


Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
