Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank

Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank
Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank

Large Image :  Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank

Product Details:

Place of Origin: China
Brand Name: CLW / Chengli
Certification: CCC,ISO,
Model Number: CLW5042TSLB5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 20-30 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500Unit Per Month
Detailed Product Description
Box Material: Carbon Steel Q235B Truck Brand: ISUZU
Truck Engine: ISUZU Diesel 120HP Gearbox: MSB 6Forward & 1 Reverse
Tire: 7.00-16, 7.00R16 Axle: 3Ton Front & 4.8Ton Rear
Purpose: Road Sweeping Sweeper: 4 Pieces, 2 Piece At Each Side
Water Tank: 1.5cubic Meters Garbage Tank: 3.5Cubic Meters
High Light:

street sweeper vacuum truck

,

mechanical sweeper truck

Small Street ISUZU Road Sweeper Truck with Vacuum Sweeping Equipment & Water Tank



Product Description



Small Street ISUZU Road Sweeper Truck with Vacuum Sweeping Equipment & Water Tank

  • Best Choice for Road Sweeping, both Garbage Tank & Water Tank

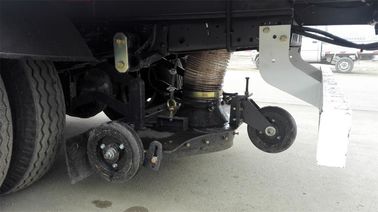

  • Garbage Tank: DN100 Suction Hose with 2 wheels Sunction Pan.
  • Water Tank: with Water Filter & Level Gauge.
  • Auxiliary JAC Engine 77HP to Supply Power for the whole system.
  • Wind Suntion System to suck up the garbage.

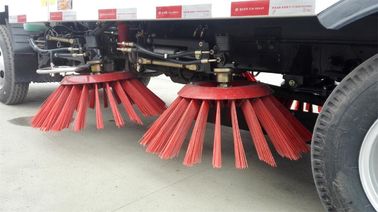

  • Sweeping System: 2 Brush at each side



Specifications of Small Street ISUZU Road Sweeper Truck



ISUZU Road Sweeper Truck
Item No. Parameters
Overall Dimension 6830 x 2210 x 2650 mm
Curb Weight 5700 kg
Loading Weight 3000 Kg
Wheel Base 3800 mm
Front/rear Tread 1095 / 1475 mm
Approach/Departure Angle 21 / 14 degree
Cabin ISUZU 600P, Left Hand Driving, with Air Conditioner,
Engine ISUZU 4KH1-TCG40 Diesel Engine, 120HP, 3400RMP, 2.999Liter, 4 Cylinder in Line, Turbo Charge,
Gear Box ISUZU MSB Manual, 5 Forward Gear & 1 Reverse Gear,
Brake Oil Brake with Vacuum Pump
Steering Gear Hydraulic Power Steering
Tire 700-16, 6 Piece with 1 Spare
Fuel Tank 100 Liters
Sweeping System
Dust Bin 6 m3 Water Bin 2 m3
Material of Both Bin Stainless Steel Engine JMC JX493G3, 77HP,
Brush Quantity 4 Pieces Brush Diameter 900mm
Work Width 3.0-3.5 meters Working Speed 3-15 km/h
Dust Bin Tipping System Hydraulic Tipping Dust Bin Tipping Angle More than 40 degree
Dust Cleaning Percentage 90-95% Maximum Capacity 45000 m2/h
Sucking Object Diameter less than 50mm (coal) Working Duration 4 hours

Function Specification:

1. All Controlling System are Inside the Cabin Easy for Handling.

2. All Stainless Steel Dust Bin & Water Bin.

3. Separated Engine Support Hydraulic Pump & Suction Machine.

4. Hydraulic Pump Control Left & Right Brush Can Work Separately or Simultaneously.

5. Left & Right Brush System are Patented by Chinese Government for Avoiding the Obstacle.

6. Major Hydraulic Parts are Imported Good Quality parts.

7. Water Spraying System to Control Dust on Road.


































 Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank 0

Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank 1

Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank 2







Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipmen


FAQ


Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
