Product Details:
Payment & Shipping Terms:
|
| Tank Material: | Carbon Steel, Stainless Steel, Aluminium Alloy | Sewage Tank Capacity(CBM): | 9CBM 10CBM 11CBM 12CBM |
|---|---|---|---|
| Max. Loading Weight|(tons): | 9tons 10tons 11tons 12tons | Loading Medium: | Sewage Fecal Waste Water |
| Sewage Pump: | China Famous Brand/Italy Brand | Drive Model: | 4x2/6x4; As Per Sewage Tank Size |
| Wheelbase(mm): | 4500mm 4700mm | Color: | White; Blue; Green; Yellow; Customized |
| High Light: | vacuum sewage suction truck,sewage suction tanker truck |
||

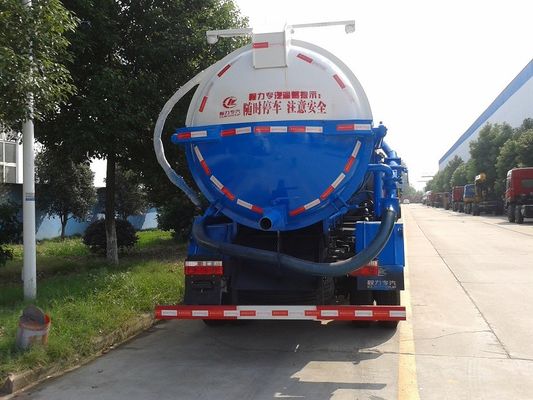

10ton Sewage Collection Truck Dongfeng 10cbm vacuum sewage suction tanker truck
Product Description
1. Purpose of 10ton Sewage Collection Truck :
It used for city and factory sewer cleaning and sewege transportation, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning.
2. Main parts of 10ton Sewage Collection Truck:
Water-gas separator, Oil-gas separator, Sewage pump and Four way valve etc.
3. Features of 10ton Sewage Collection Truck:
Easy for operating and controlled by hydraulic system.
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | Dongfeng | |
| Curb weight(kg) | 9450 kg | ||
| Wheelbase(mm) | 4500 mm | ||
| Dimensions(mm) | 7800*2500*3250 mm | ||
| Front/Rear Axle loading(kg) | 5800/10000 kg | ||
| Wheel track (front/rear) (mm) | 1960/1855 mm | ||
| Front/Rear overhang(mm) | 1440/1860 mm | ||
| Approach/Departure angle(°) | 21/19 | ||
| Max. driving speed(km/h) | 95 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
|
Brakes |
Air brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 10.00R20 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cab | It can accommodate three people. With Air Conditioner | ||
|
Engine |
Brand | Cummins | |
| Fuel type | Diesel | ||
| Horsepower(HP) | 170 HP | ||
| Emission standard | Euro 3 | ||
| Sewage Suction & Cleaning System | |||
| Sewage tank | Capacity(cbm/liters) | 10.0 cbm/10,000 liters | |
| Tank material | Q235 carbon steel | ||
| Vacuum pump | China famous brand/Italy brand | ||
| Inlet and Outlet pipe | 6m/7m/9m/15m | ||
| Main parts |
1. Water-gas separator 2. Oil-gas separator 3. Four way valve |
||
| Remarks |
The color is optional |
||
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Sewage Collection Truck I can order from your company?
A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.
Q3: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
