Product Details:
Payment & Shipping Terms:
|
| Tank Material: | Carbon Steel, Stainless Steel, Aluminium Alloy | Sewage Tank Capacity(CBM): | 10CBM 11CBM 12cbm 10000liters 11000liters 12000liters |
|---|---|---|---|
| Max. Loading Weight|(tons): | 10tons,10t,11tons,11t,12t,12tons | Loading Medium: | Sewage Fecal Waste Water,sewer,sewage |
| Sewage Pump: | China Famous Brand/Italy Brand | Drive Model: | 4x2 As Per Sewage Tank Size |
| Wheelbase(mm): | 4500mm 4700mm | Color: | White; Blue; Green; Yellow; Customized |
| Highlight: | sewage suction tanker truck,sewage collection truck |
||
Product Description

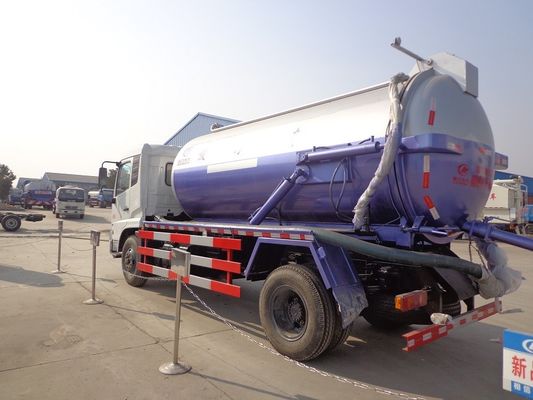

1. Purpose of Vacuum Sewage Suction Truck :
It used for city and factory sewer cleaning and sewege transportation, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning.
2. Main parts of Vacuum Sewage Suction Truck:
Water-gas separator, Oil-gas separator, Sewage pump and Four way valve etc.
3. Features of Vacuum Sewage Suction Truck:
Easy for operating and controlled by hydraulic system.
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | Dongfeng | |
| Curb weight(kg) | 15800kg | ||
| Wheelbase(mm) | 4500 mm | ||
| Dimensions(mm) | 7400*2490*3380 mm | ||
| Front/Rear Axle loading(kg) | 5800/10000 kg | ||
| Wheel track (front/rear) (mm) | 1880/1800 mm | ||
| Front/Rear overhang(mm) | 1430/2170mm | ||
| Approach/Departure angle(°) | 21/12 | ||
| Max. driving speed(km/h) | 95 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
|
Brakes |
Air brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 10.00R16 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cab | It can accommodate three people. With Air Conditioner | ||
|
Engine |
Brand | Cummins | |
| Fuel type | Diesel | ||
| Horsepower(HP) | 180hp 210hp | ||
| Emission standard | Euro 3 | ||
| Sewage Suction & Cleaning System | |||
| Sewage tank | Capacity(cbm/liters) | 12cbm/12000 liters | |
| Tank material | Q235 carbon steel | ||
| Vacuum pump | China famous brand/Italy brand | ||
| Inlet and Outlet pipe | 6m/7m/9m/15m | ||
| Main parts |
1. Water-gas separator 2. Oil-gas separator 3. Four way valve |
||
| Remarks |
The color is optional |
||
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Vacuum Sewage Suction Truck I can order from your company?
A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: What is your production standard of Vacuum Sewage Suction Truck? Whether your sewer vacuum truck can export to USA, Canada and Europen countries?
A: Our CBU sewer vacuum truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.
Q3: Can we adopts International brand sewage pump for Vacuum Sewage Suction Truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
