High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

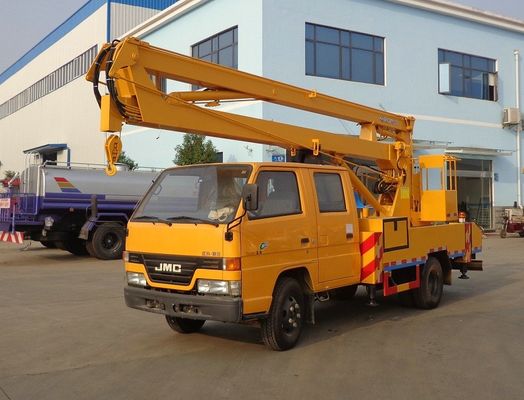

Large Image :  High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC,ISO,SGS,BV
Model Number: CLW5050

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 20-30 Days
Payment Terms: D/A, D/P, Western Union, MoneyGram
Supply Ability: 600Unit Per Month
Detailed Product Description
Bran: Dongfeng,ISUZU,JAC,JMC,forland,foton Engine: 115hp
Gearbox: 5 Forward & 1 Reverse Height: 12 Meters,14meters, 16meter, 12M,14M,16M
Bucket Capacity: 200kg Passenger: 4~5Person
Tire: 7.00R16LT 10PR Wheelbase: 3360mm
High Light:

aerial platform truck

,

elevating platform truck

JMC 14meters high altitude operation truck for street lamp maintenance


Product Description




1. JMC Double Row Chassis, can carry 6 Passengers.

2. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.

3. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.

4. 360 degree Rotation Arms.

5. Arm and H leg Automatic Locking System to secure safety handling



Specifications of JMC 14meters high altitude operation truck



Drive model 4×2
Chassis JX1061TSG25
Overall Dimension L*W*H mm 7300×200×3050
GVW 5390 kg
Curb weight 5065kg
Wheel base mm 3360
Wheel track(front/rear) mm 1385/1425
Overhang (front/rear) (mm) 1065/2075
Approach/Departure angle(°)    27/10
Engine Model JX493zlq5
Type Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging
and inter-cooling
Horse power 115 hp
Output volume 2771 ml
Emission standard Euro V
Max. speed 90 km/h
Gearbox 5 forwards & 1 reverse
Clutch Reinforced diaphragm clutch
Steering Gear Power steering, hydraulic steering with power assistance
Fuel tank (L) 120
Tire 7.00-16 , 7 pieces including one spare tire
Brakes Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear
wheels Auxiliary brake: engine exhaust valve brake
Equipment Max operation height>=14m;
max operation radius>=6m;
max working platform height>=12.5m;
working platform rating loading=250kg;
working platform rating allowable passengers = 2; working platform dimension:
1100*570*1000 mm; protection dimension:180*50*5mm;
360°turning(left or right), 4 H-shape legs. 1.5 ton crane, Insulating material in the
cage., the cage can be operated both in the air and on the earth.
Delivery time 30 days after the payment





Product Photos



High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck 0

High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck 1

High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck 2







High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck 3





Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of high altitude operation truck I can order from your company?


A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied high altitude operation truck to any overseas companies?


A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
