Product Details:
Payment & Shipping Terms:
|
| Water Tanker: | 1.0CBM | Garbage Tanker: | 4CBM |
|---|---|---|---|
| Deputy Engine: | ISUZU Brand | Fan: | China Famous Brand |
| Water Pump: | China Famous Brand | Drive Model: | 4x2/6 Wheels/4*2 |
| Wheelbase(mm): | 2300mm 2800mm 3300mm 3360mm 3400mm 3800mm 4500mm 4700mm 5600mm | Color: | White; Blue; Green; Yellow; Customized |
| High Light: | mechanical sweeper truck,street cleaner truck |
||

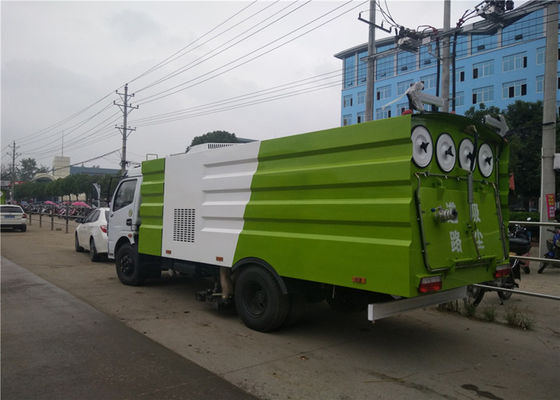

5CBM Road sweeper truck 1CBM water tank 4CBM dust tank 4x2 vacuum sweeper truck road cleaning truck
Product Description
1. Purpose: The main working place of this vacuum sweeper truck is cement plant, steel-making plant, coal factory and so on.
2. Main parts: Deputy engine, water pump, fan and hydraulic system etc.
3. Deputy engine brand: ISUZU brand
| Chassis | |||||
| Drive Model | 4X2, Left hand drive | ||||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 6200*2000*2590 | |||
| Wheel base (mm) | 3360 | ||||
| Overhang (front/rear) (mm) | 1015/1815 | ||||
| Wheel track (front/rear) (mm) | 1504/1425 | ||||
| Approach/Departure angle(°) | 24/13 | ||||
| Weight in KGS | Curb Weight (kg) | 4880 | |||
| Front/Rear axle loading(kg) | 2500/4800 | ||||
| Max. driving speed(km/h) | 110 | ||||
| Engine | Model | 4JB1CN | |||
| Horse Power(HP) | 98 | ||||
| Displacement (ml) | 2771 | ||||
| Emission standard | Euro IV | ||||
| Gearbox | 5 forwards & 1 reverse | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Brakes | Hydraulic oil brake | ||||
| Tire | 7.00-16 tire , 6 + 1(spare tire) | ||||
| Upper & Equipment | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(cbm) | 4.0 cbm | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(cbm) | 1.0 cbm | ||||
| Operation detail | Max. Operation ability(m2/h) | 40000 | |||
| Max. Sucking dimension(mm) | 50 | ||||
| Auxiliary engine | Model | ISUZU Brand | |||
| Quantity(No.) | 1 | ||||
| Power(kw/HP) | 55 /75 | ||||
| Vacuum cleaner | Main Vacuum cleaner | Quantity(No.) | 1 | ||
| Width(mm) | 1800 | ||||
| Side Vacuum cleaner | Quantity(No.) | 2 | |||
| Width(mm) | 600 | ||||
| Max. Working width(mm) | 2400 | ||||
| Sucking Nozzle wheel | Quantity(No.) | 4 | |||
| Height | Adjustable | ||||
| Remarks |
1. Rear LED pilot lamp 2. Self unloading box body 3. Power system: DC 24V 4. The color will be designed on basis of your requirements. 5. Rear sucking hose as per customer request |
||||
Products Show
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Sweeper Truck products I can order from your company?
A: We can supply all kinds of sweeper trucks, Vacuum sweeper truck, High pressure road sweeper truck, Normal road sweeper etc.
Q2: What is your production standard of Sweeper Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Sweeper Truck is produced as per China GB local standard; We can't export CBU Sweeper Truck to those countries, but we can export super structure to those market, we exported 50 units Sweeper Truck to USA market at the beginning of 2017.
Q3: Have you supplied to Sweeper Truck any renowned companies?
A: Our group company is a regular strategic partner of some big government department and waste treatment company. We have supplied many different type Sweeper Truck for them with different chassis brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
