Product Details:
Payment & Shipping Terms:
|
| Tank Material: | Strong Carbon Steel | Tank Capacity: | 3CBM To 5CBM |
|---|---|---|---|
| Pump: | Italian Jurop, Chinese Weilong Brand | Truck Brand: | Dongfeng, JAC, JMC, ISUZU, Hyundai, HINO, Etc |
| Tank Pressure: | -0.97Mpa | Optional: | 60meter Rubber For Sewer Cleaning |
| Tire: | 7.00R16, 7.00-16. 6 Pieces With 1 Spare Tire | Loading Capacity: | 2Ton To 4Ton |
| High Light: | vacuum sewage suction truck,sewage suction tanker truck |
||

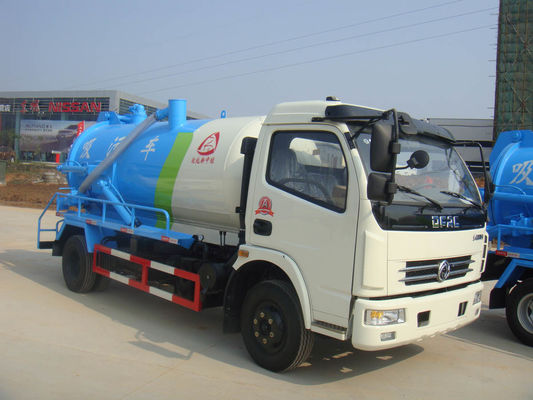

Dongfeng Cummins 3CBM to 5CBM Sewage Suction Truck with Self Dump System
Product Description
1. Vacuum Sewage Suction Truck for city sewage cleaning and delivery.
2. High quality ISUZU Brand or Hyundai Brand, as well as famous chinese brand Sinotruk, JAC, Dongfeng, etc
3. Long last wind cooling vacuum pump in Word Best Brand Italian Jurop pump.
4. 10,000liter tank capacity which can carry about 8Ton sewage.
5. Self Tipping system with rear openning door, With rubber pipe for rust resistant.
| Description | 3cbm 4cbm 5cbm Fecal Suction Truck Sewage Suction Truck Vacuum Truck | |
| Drive Model | 4X2 | |
| Chassis | EQ1060 | |
| Number of axles | 2 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 5995×2000×2550 |
| Wheel base (mm) | 3300 | |
| Overhang (front/rear) (mm) | 1032/1663 | |
| Wheel track (front/rear) (mm) | 1506/1466 | |
| Approach/Departure angle(°) | 19/14 | |
| Weight in KGS | GVW. | 6495kg |
| Curb Weight | 4200kg | |
| Max. driving speed(km/h) | 90 | |
| Engine | Model | CY4102-C3F |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 99HP | |
| engine capacity(ml) | 3856 | |
| Emission standard | Euro III | |
| Gearbox | 5 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 100 | |
| Tire | 7.00-16 tire , 6 + 1(spare) | |
| Brakes | dual circuit compressed air brake | |
| Tank | ||
| Material | Q235A Carbon steel | |
| Medium Density | 800kg/m³ | |
| Loading Capacity (m³) | 4 | |
| Overall dimensions(mm) | 3200×1100×1100 | |
| Thickness(mm) | 5 | |
| Standard Equipment |
Equipped with vacuum pump rating rotate speed 1400r/m, min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, Equipped with power take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing & cleanout equipment Time for full suction<5min |
|
Products Show
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Sewer cleaning truck I can order from your company?
A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.
Q3: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
