Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM

Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM
Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM

Large Image :  Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM

Product Details:

Place of Origin: China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW5100GXW2

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiable
Packaging Details: Naked packing
Delivery Time: 30-35days after received advance payments
Payment Terms: L/C, T/T
Supply Ability: 500units/month
Detailed Product Description
Tank Material: Strong Carbon Steel Tank Capacity: 3CBM To 5CBM
Pump: Italian Jurop, Chinese Weilong Brand Truck Brand: Dongfeng, JAC, JMC, ISUZU, Hyundai, HINO, Etc
Tank Pressure: -0.97Mpa Optional: 60meter Rubber For Sewer Cleaning
Tire: 7.00R16, 7.00-16. 6 Pieces With 1 Spare Tire Loading Capacity: 2Ton To 4Ton
High Light:

sewage suction tanker truck

,

sewage collection truck

Jurop & BP Vacuum Pump with Jetting Tank JAC 3CBM Mini suction sewage truck



Product Description



1. Vacuum Sewage Suction Truck for city sewage cleaning and delivery.



2.  High quality truck chassis, as well as famous chinese brand Sinotruk, JAC, Dongfeng, etc



3. Long last wind cooling vacuum pump in Word Best Brand Italian Jurop pump.



4. 3,000liter tank capacity which can carry about 2.2Ton sewage.



5.  Self Tipping system with rear openning door, With rubber pipe for rust resistant.



Condition New condition/Left hand drive/4x2
Chassis Brand JAC
Curb weight(kg) 7600 kg
Wheelbase(mm) 3300 mm
Dimensions(mm) 6200*2300*2800 mm
Front/Rear Axle loading(kg) 2300/4000 kg
Wheel track (front/rear) (mm) 1960/1855 mm
Front/Rear overhang(mm) 1335/1880 mm
Approach/Departure angle(°) 16/20
Max. driving speed(km/h) 95 km/h
Battery 12V*2 115Ah*2
Clutch Reinforced diaphragm clutch

Brakes
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6 pcs with one spare tire
Specifications 6.50R16
Transmission Manual type, 5 Forwards and 1 reverse
Cab It can accommodate three people. With Air Conditioner

Engine
Brand Chaochai
Model CY4102
Fuel type Diesel
Displacement(ml) 5193 ml
Power(kw) 88 kw
Horsepower(HP) 120 HP
Cylinder number 4
Emission standard Euro 2
Sewage Suction & Cleaning System
Sewage tank Capacity(cbm/liters) 3.0 cbm/3,000 liters
Tank material Q235 carbon steel
Thickness(mm) 6.0 mm
Vacuum pump Absolute working pressure(Pa) 400 Pa(99.6%vacuum degree)
Academic suction speed(L/s) 45 L/s
Rotation speed(rpm) 500 rpm
Inlet and Outlet pipe Diameter(mm) 108 mm
Length(m) 5.0 m
Quantity(pcs) 1 pc
Main parts 1. Water-gas separator
2. Oil-gas separator
3. Four way valve
4. Safety valve
5. Anti overflow valve
6. Anti overflow warning device
7. Hydraulic control rear cover
8. Tipping sewage tank body








Products Show

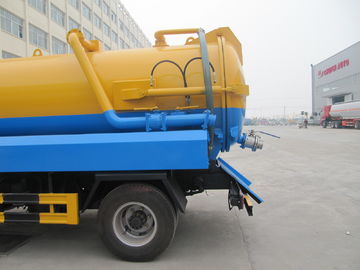

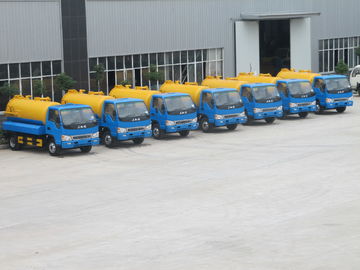

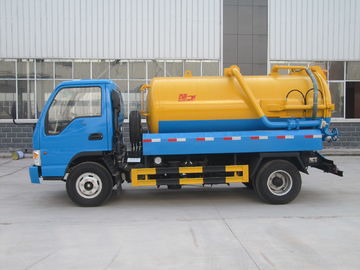

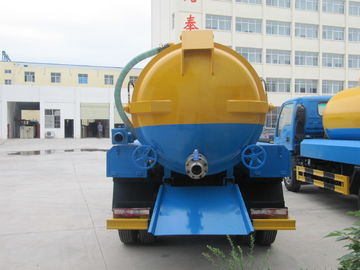

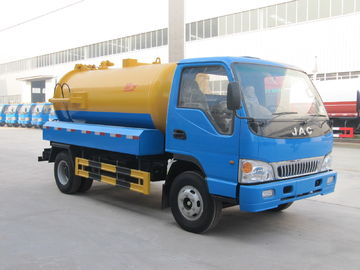

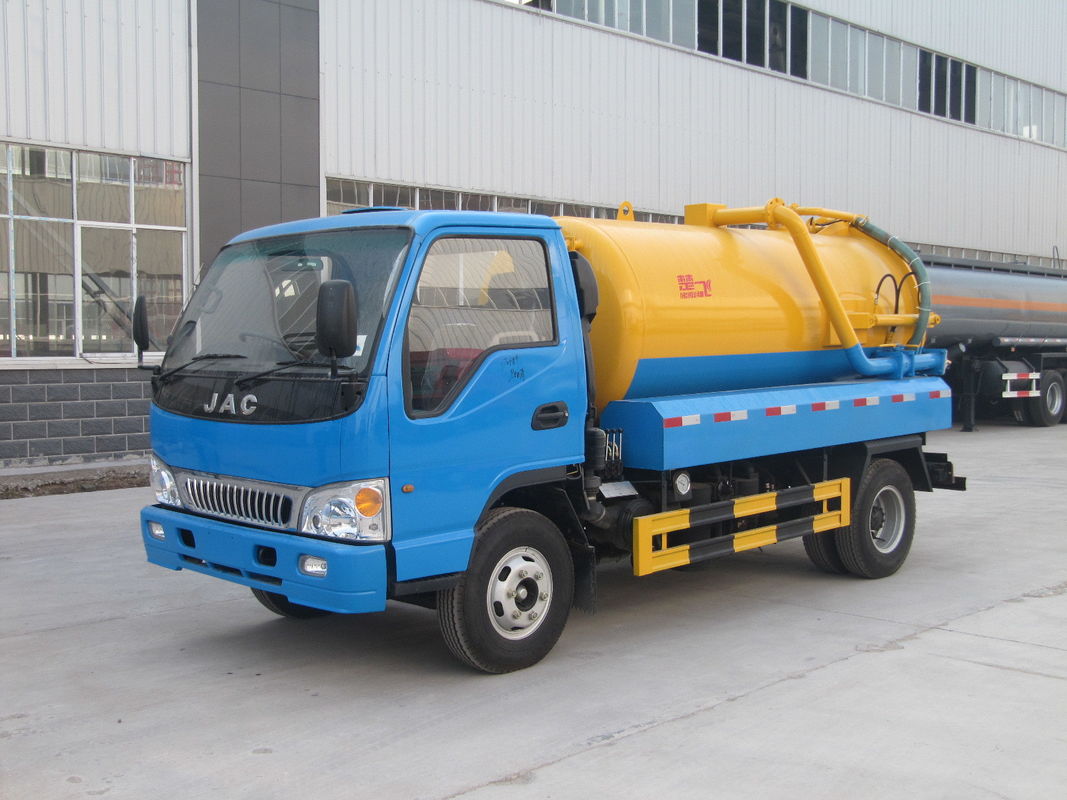

Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM 0

Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM 1











Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What kinds of Sewer cleaning truck I can order from your company?

A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.



Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.



Q3: Can we adopts International brand sewage pump for sewage suction truck?

A: Sure, we already cooperated with Italy Jourp and a Germany brand.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
