ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust

ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust
ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust

Large Image :  ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: CCC, SGS, BV
Model Number: CLW5100A8G

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Unit/Month
Detailed Product Description
Engine: ISUZU 120HP Auxiliary Engine: Cummins 140HP
Water Tank: 4CBM, Stainless Steel 304 Dust Tank: 5CBM, Stainless Steel 304
Sweeping Speed: 3-20 Km/h Maximum Sweep Width: 3.5m
Maximum Cleaning Capacity: 60000m³/h Motor: Sanyo Brand
Water Pump: German Imported High Pressure Water Pump Control Switch: Schneider Brand
Operation Manual: 1 Set For Each Customer Color: As Per Customer Requirements
High Light:

street sweeper vacuum truck

,

mechanical sweeper truck

ISUZU Road Washing&Sweeper Truck (4cbm water, 5cbm dust)


Product Description
1. Purpose: Sweeper truck can be widely used in main city road,airport road,residential area road, park,terminal, square, cement factory, power plant and etc.
2. Main parts: Stainless steel dust tank and water tank, Germany hydraulic oil pump and magnetic valve, French Schneider eletronic control switch, auxiliary engine, suction panel, sprinkler system, sweeping brush.
3. Feature: On the basis of one-key control technology, the manual throttle control system of the auxiliary engine is added, which can independently adjust the throttle size according to the road condition, effectively enhancing the cleaning effect and reducing fuel consumption.

Product Specification

General Technical Parameters
Overall Dimension7160X2250X2750 (mm)
Gross Vehicle Weight7300(Kg)
Curb Weight2110(Kg)
Chassis Specification
Chassis BrandISUZU
Drive model4*2
CabinSingle Row, LHD, with air condition.
Number of Passengers2
EngineModelISUZU 4KH1-TCG4O/120HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.
Power88KW/120HP
Emission standardEUROⅣ
Displacement2999(ml)
Fuel typeDiesel
GearboxISUZU MSB, 5Forwards & 1Reverse, manual operation, with power steering.
Brake SystemOil break
Wheel Base3815mm
Front/Rear Axle Loading2500/4800(Kg)
Approach/Departure Angle24/14(°)
OverhangMechanical Suspension, 8/6+5
Tire7.00R16 Steel wire tyre, 6pc with 1 spare tire
Sweeping Speed3-20 km/h
Upperstructure Specification
TankWater TankMaterialStainless steel 304
Volume4(cbm)
Dust TankMaterialStainless steel 304
Volume5(cbm)
Auxiliary EngineModelCummins
Power140HP/103KW
Maximum sweep width3.5m
Maximum cleaning capacity60000m³/h
Standard Configuration1. Equipped with 1 sweeping brush on each side, and middle suction nozzle;
2. Equipped with Sanyo Motor;
3. Equipped with German imported high pressure water pump(front flush, side sprinkler, middle sprinkler, rear sprayer, water gun, self-cleaning device in dust tank);
4. Equipped with universal high pressure roadside cleaning, and front flush with low pressure pump;
5. Equipped with stainless steel high pressure pipeline, Schneider control switch, and American sensor;
6. Equipped with anti-overflow or low water level alarm device in both water and dust tanks, rear LED arrow lights;
7. Equipped with indoor monitor in reverse and wash state;
8. Equipped with 18 meters high pressure rinsing reel, etc.
9. User's operation manual 1 set.
Optional ConfigurationSnow shovel, foggy gun, aerial work platform, color is optional, etc.

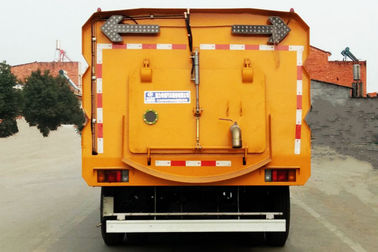

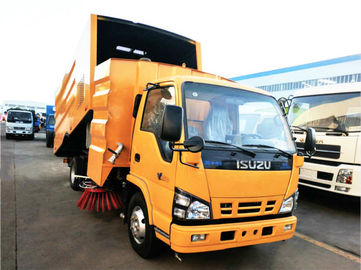

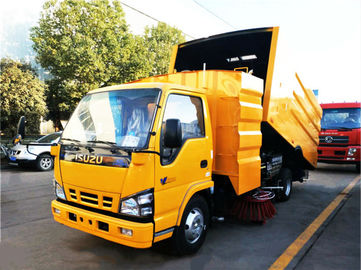

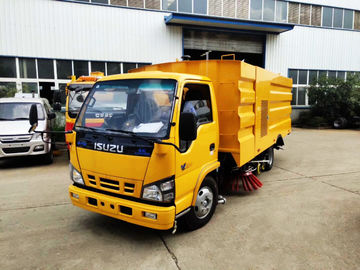

Product Show
ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust 0
Main Structure
ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust 1
Main Parts
ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust 2
Related Road Cleaning Truck
ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust 3


Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ

Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
