18 Meter 20 Meters 22 Meters Aerial Lift Truck Overhead Working Bucket Boom Truck Hydraulic Lift

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  18 Meter 20 Meters 22 Meters Aerial Lift Truck Overhead Working Bucket Boom Truck Hydraulic Lift

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC, ISO, SGS, BV
Model Number: CLW5070BPG

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Type: Telescopic Type Aerial Lift Truck Bucket Capacity: 200kg
Bucket Size: 1000x700x1250mm Working Arm Type: H Type
Max Operation Height: 18meters ~ 22meters Max Operation Range: 8meters ~9meters
Chassis Brand: Dongfeng, ISUZU, Etc Engine Brand: ISUZU, Cummins
Warranty: 1 Year
High Light:

aerial platform truck

,

aerial work platform truck

Product Description

18meter High Altitude Working Vehicle 22meter Telescopic Type 18meter 20meter Aerial Platform Truck

  1. Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
  2. The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
  3. Full Computer Control System with Danger Waring System.
  4. LCD Screen in Both the Bucket and Truck to Display the Working Status.
  5. Rectangular Shape Arms to Increase the Arm Strength.
  6. V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.



Product Show

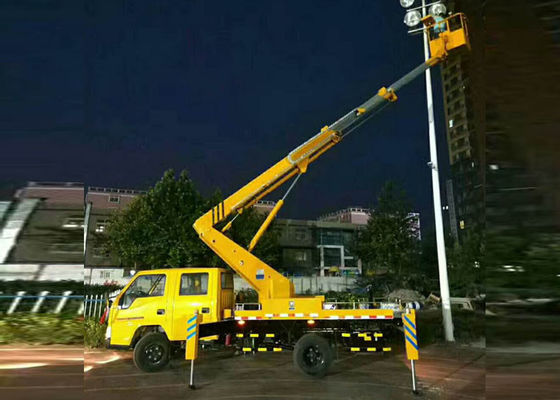

18 Meter 20 Meters 22 Meters Aerial Lift Truck Overhead Working Bucket Boom Truck Hydraulic Lift 0

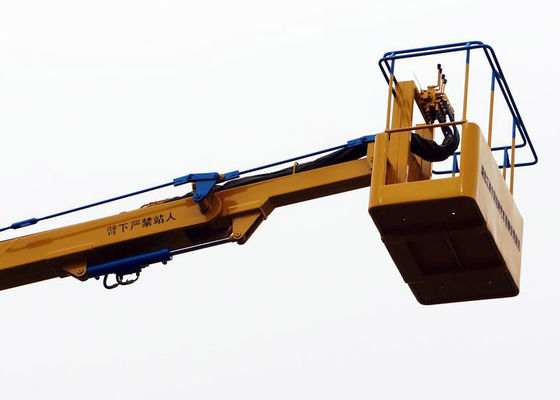

18 Meter 20 Meters 22 Meters Aerial Lift Truck Overhead Working Bucket Boom Truck Hydraulic Lift 1

18 Meter 20 Meters 22 Meters Aerial Lift Truck Overhead Working Bucket Boom Truck Hydraulic Lift 2







Product Details

18Meter Aerail Platform Truck

Overall dimensions 8450×2050×3050 mm
Maximum Height 18 meters
Maximum operation radius 7.9 meters
Gross vehicle weight 6705 kg
Mass in working order 6380 kg
Wheel base 4200 mm
F/R track base 1015/2280mm
Approach/departure angle 24/10°
Cabin Dongfeng, Right/Left Hand Driving, with A/C.
Engine Cummins Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling
Displacement/ HP 3900 Liter / 140HP
Max speed 90 km/h
Tire specification 900R20
Traction system 4x2
Number of axles 2
Superstructure main technical Parameters
Max operation height 20m(= Working bucket’s Max height above ground+ Industry unified standard human height 1.7m)
Boom Working booms type Three folded arms
Boom’s max lift angle 65°
Hydraulic system Hydraulic pump Gear pump
Hydraulic system pressure ≤16Mpa
Hydraulic tank volume 80L
Working bucket Max height above ground 18.3(m)
Max operation range 8.7(m)
Operation range at min operation height 3.07(m)
Operation range at max operation height 11.5(m)
Working bucket slewing angle 360°
Rated load 200kg
outrigger Outrigger Type H type
Numbers of outrigger 4
Horizontal span 2930(mm)
Longitudinal span 4500(mm)
Hook Max lift weight 800(kg)
Max lift height 8.5(m)
Operation Control method Manual control
Outrigger control Horizontal / vertical individually adjustable
Operating position Working bucket, on the truck or under the truck





Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.





FAQ



Q1: What kinds of truck mounted aeriel platform I can order from your company?


A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied truck mounted aeriel platform to any overseas companies?


A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
