High Altitude Operation Truck / 20 Meter Skylift Telescopic Boom Aerial Manlift Bucket Truck

China High Altitude Operation Truck / 20 Meter Skylift Telescopic Boom Aerial Manlift Bucket Truck supplier
High Altitude Operation Truck / 20 Meter Skylift Telescopic Boom Aerial Manlift Bucket Truck supplier High Altitude Operation Truck / 20 Meter Skylift Telescopic Boom Aerial Manlift Bucket Truck supplier High Altitude Operation Truck / 20 Meter Skylift Telescopic Boom Aerial Manlift Bucket Truck supplier High Altitude Operation Truck / 20 Meter Skylift Telescopic Boom Aerial Manlift Bucket Truck supplier High Altitude Operation Truck / 20 Meter Skylift Telescopic Boom Aerial Manlift Bucket Truck supplier High Altitude Operation Truck / 20 Meter Skylift Telescopic Boom Aerial Manlift Bucket Truck supplier

Large Image :  High Altitude Operation Truck / 20 Meter Skylift Telescopic Boom Aerial Manlift Bucket Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC, ISO, SGS, BV
Model Number: CLW5070BPG

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Contact Now
Detailed Product Description
Type: Telescopic Type Aerial Lift Truck Bucket Capacity: 200kg
Bucket Size: 1000x700x1250mm Working Arm Type: H Type
Max Operation Height: 18meters ~ 22meters Max Operation Range: 8meters ~9meters
Chassis Brand: Dongfeng, ISUZU, Etc Engine Brand: ISUZU, Cummins
Warranty: 1 Year

Product Description

High Altitude Operation Truck 20meter Skylift Telescopic Boom Aerial Manlift Bucket Truck

  1. Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
  2. The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
  3. Full Computer Control System with Danger Waring System.
  4. LCD Screen in Both the Bucket and Truck to Display the Working Status.
  5. Rectangular Shape Arms to Increase the Arm Strength.
  6. V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

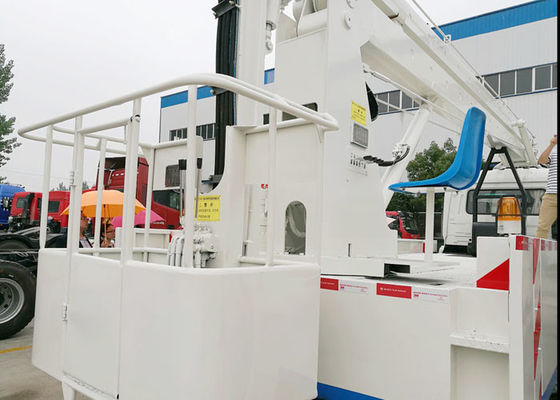

Product Show





High Altitude Operation Truck / 20 Meter Skylift Telescopic Boom Aerial Manlift Bucket Truck



High Altitude Operation Truck / 20 Meter Skylift Telescopic Boom Aerial Manlift Bucket Truck





Product Details



Chassis
Chassis brand: Dongfeng,EQ1101GLJ2
Drive type: Manual, left hand drive,optional right hand drive
Drive wheel: 4*2
Tyre: 9.00-20, 6+1pieces
Control system: Electrically hydraulic system
Transmission: Six speed levers,
6 speed forward with 1 reverse
Chassis dimension: 7120*2462*2710mm
Braking system: Air braking
Clutch: dry clutch, hydraulic remote control
Wheel base: 3950mm
Axis number: 2 pieces
Cab Passengers: 5 passengers
Engine
Engin: Cummins,EQB160-20
Horse power: 185HP
Exhaust: 6700CC
electric system: 24V
Emission standard: Euro 3
Max speed: 90km/h
Fuel: Diesel,optional gasoline
Superstructure main technical Parameters
Max operation height 20m(= Working bucket’s Max height above ground+ Industry unified standard human height 1.7m)
Boom Working booms type Three folded arms
Boom’s max lift angle 65°
Hydraulic system Hydraulic pump Gear pump
Hydraulic system pressure ≤16Mpa
Hydraulic tank volume 80L
Working bucket Max height above ground 18.3(m)
Max operation range 8.7(m)
Operation range at min operation height 3.07(m)
Operation range at max operation height 11.5(m)
Working bucket slewing angle 360°
Rated load 200kg
outrigger Outrigger Type H type
Numbers of outrigger 4
Horizontal span 2930(mm)
Longitudinal span 4500(mm)
Hook Max lift weight 800(kg)
Max lift height 8.5(m)
Operation Control method Manual control
Outrigger control Horizontal / vertical individually adjustable
Operating position Working bucket, on the truck or under the truck





Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.





FAQ



Q1: What kinds of truck mounted aeriel platform I can order from your company?


A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied truck mounted aeriel platform to any overseas companies?


A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
