| Chassis Brand: | Dongfeng, Sinotruk HOWO, FAW, Foton, Isuzu, Etc. | Engine Power: | 290HP |
|---|---|---|---|
| Tank Shape: | Horizontal Cylinder Shape | Tank Capacity: | 20cbm |
| Tank Loading Capacity: | 10ton | Tanker Material: | Q345R, Q370r, Q420r, SA516 |
| Tank Thickness: | 10mm | Design Pressure: | 1.61MPa, 16.1 Bar /Psi |
| Production Standard: | Hydraulic Pump With Pto Powered | Level Meter: | Rego Rochester Or Others |
| Flow Meter: | Displacement Flow Meter | Corrosion Allowance: | 1.0mm |
| Logo And Pattern: | As Customer's Request | Warranty: | 1 Year |
| High Light: | bobtail propane truck,propane service truck |
||

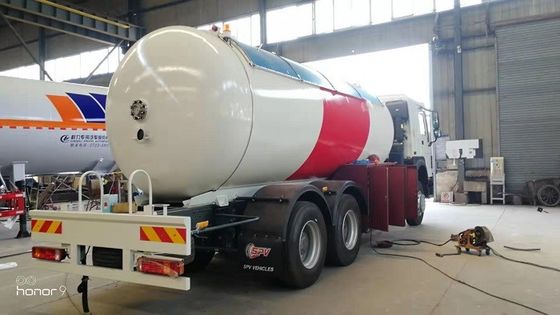

HOWO 6*4 20cbm/10tons LPG Bobtail truck Mobile LPG Tank Dispenser Truck
Product Description
1. Truck Brands: Dongfeng, Sinotruk HOWO, JAC, FAW, Foton, Isuzu, etc..
2. Tank Design: Horizontal cylinder Type, Bullet Tank, with elliptical or hemisphercial dish end.
3. Tank Test: 100% Radio Radiographic Test, Magnetic Power Test, Water Pressure Test, Air Tightness Test.
4. Dispensing System: 2" Hyrdaulic Truck Pump, 2" Flow Meter, 15meters Hose Reel for commercial Fillings.
Product Specification
| Item No. | Parameters |
| Overall Dimension | 10590x2495x3350 mm |
| Driving Model | Left hand drive |
| Gross Vehicle Weight | 25000 kg |
| Curb Weight | 14000kg |
| Payload | 10000kg(10Ton) |
| Wheel Base | 4600+1350 mm |
| Front Axle | HF7,7000kg |
| Rear Axle | ST16,16000kgX2 |
| Engine | 4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
| Engine horsepower | 290HP EUROII |
| Displacement | 9760mL (Diesel) |
| Max Driving Speed | 95 km/h |
| Gearbox | HW19710 |
| Cabin | Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner |
| Tire | 12R22.5 (10 pcs with 1 spare) |
| LPG tank | |
| Volume: | 20cbm |
| Tank material: | Q345R |
| Tank diameter: | 2050mm |
| Tank thickness: | 10mm |
| End plate | 10mm |
| Tank length: | 7644mm |
| Gas phase | DN50 |
| Liquid Phase | DN80 |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Accessory | |
| LPG Pump | 1 pc |
| LPG filling machine | 1 pc |
| Filling hose with filling nozzle | 15M |
| Level Gauge | Manual rotation type,at the rear of tank |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher | 2 |
| Exhaust shaft | At the front of truck for safety |
Manufacturing Process
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
