Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 304 | Auxiliary Engine: | ISUZU Brand |
|---|---|---|---|
| Sweeper Brush: | 2 Unit | Wheelbase: | 4175 Mm |
| Color: | Customized LOGO Painting As Per Customer Request | Vacuum Suction: | Yes, Behind The Sweeper |
| Pump: | Weilong Low Pressure Pump | ||
| High Light: | ISUZU Road Sweeper Truck,4X2 Road Sweeper Truck,CLW50750 |
||

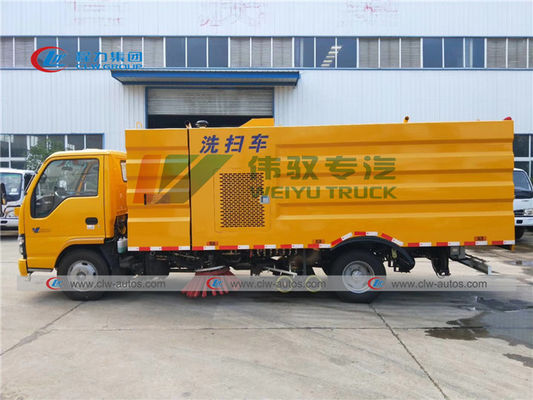

ISUZU High Pressure Road Washing and Sweeping Truck Vacuum Road Sweeper Truck
Product Description
This equipment is made from our company according to many years of road maintenance construction experience, and combined with the actual needs of customers.It is a kind of vacuuming equipment independently developed and produced for minor repair and maintenance construction of irrigation joints and pits.The utility model has the characteristics of simple operation, high dust absorption efficiency and continuous operation.Widely used in municipal, highway, national and provincial arterial road construction dust, particle recovery operations.
| Chassis | |||||
| Drive Model | 4X2, Left hand drive | ||||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 7600*2300*2700 | |||
| Wheel base (mm) | 4175 | ||||
| Wheel track (front/rear) (mm) | 1730/1590 | ||||
| Approach/Departure angle(°) | 22/14 | ||||
| Weight in KGS | Curb Weight (kg) | 3600 | |||
| Front/Rear axle loading(kg) | 4000/7000 | ||||
| Max. driving speed(km/h) | 90 | ||||
| Engine | Model | ISUZU | |||
| Horse Power(HP) | 190 | ||||
| Emission standard | Euro IV | ||||
| Gearbox | 6 forwards & 1 reverse | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Brakes | Hydraulic oil brake | ||||
| Tire | 235/75R17.5 , 6 + 1(spare tire) | ||||
| Upper & Equipment | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(cbm) | 4 cbm | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(cbm) | 5 cbm | ||||
| Auxiliary engine | Model | ISUZU 64KW | |||
| Quantity(No.) | 1 | ||||
| Power(kw/HP) | 64 /87 | ||||
| Sweeper | Sweeper Brush | Quantity(No.) | 2 | ||
| Max. Working width(mm) | 3500mm | ||||
| Pump | Weilong Low pressure pump | ||||
| Vacuum Cleaner | 1 Unit, behind the sweeper brush | ||||
| Remarks | 1. Rear LED pilot lamp | ||||
| 2. Self unloading box body | |||||
| 3. Power system: DC 24V | |||||
| 4. The color will be designed on basis of your requirements. | |||||
Road Sweeper Truck details
Working Show
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Sweeper Truck products I can order from your company?
A: We can supply all kinds of sweeper trucks, Vacuum sweeper truck, High pressure road sweeper truck, Normal road sweeper etc.
Q2: What is your production standard of Sweeper Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Sweeper Truck is produced as per China GB local standard; We can't export CBU Sweeper Truck to those countries, but we can export super structure to those market, we exported 50 units Sweeper Truck to USA market at the beginning of 2017.
Q3: Have you supplied to Sweeper Truck any renowned companies?
A: Our group company is a regular strategic partner of some big government department and waste treatment company. We have supplied many different type Sweeper Truck for them with different chassis brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
