| Material: | Steel, Q345R, Q370R, 16 Mn | Tank Volume: | 58.5cbm 58500liters 58500L |
|---|---|---|---|
| Loading Capacity: | 25mt 28mt 25tons 28tons 25t 28t | Fulling Medium: | Propane,cooking Gas,lpg,butane |
| Thickness: | 12mm,10mm | Shape Of End Plate: | Round/ellipse Propane Transport Tanker Truck |
| Axle: | 13tons L1/FUWA/BPW | Tire: | 12R22.5 Tubeless Tire |

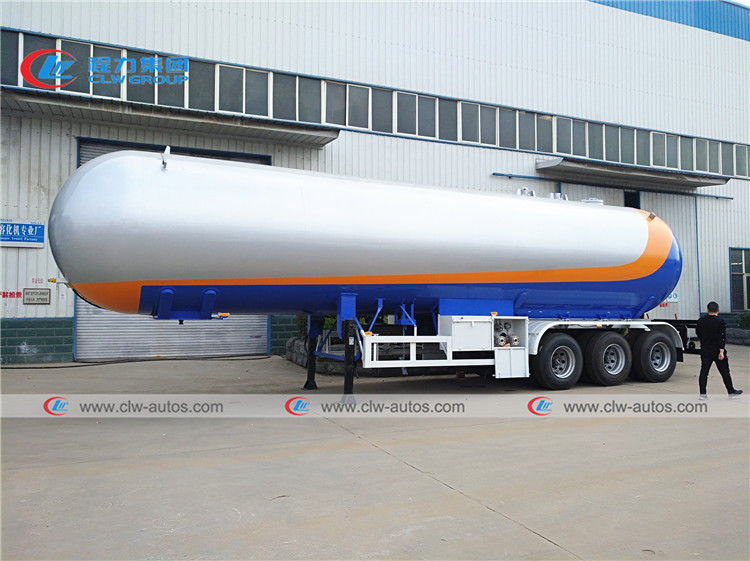

| Condition: | New | Name: | Propane Gas Transport Tanker Semi Trailer Truck |
| High Light: | 28mt Propane Tanker Truck,58.5cbm Propane Tanker Truck,58500l Propane Tanker Truck |
||
--Propane transport truck(also called cooking gas tanker trailer,gas transport truck,lpg bridger truck,lpg road tanker,lpg truck trailer,25tons lpg truck,25mt lpg truck,50m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer) is used to transport liquid petroleum gas/propane gas/cooking gas/lpg in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
--Optional for tank size from 40,000litera to 61900liters,from 18tons to 30tons,from 18mt to 30mt.
--Design standard of Propane transport truck: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
--Optional accessories of Propane transport truck :ROCHESTER level gauge,flow meter,sun shelter,lpg pump,lpg dispenser machine,15meters filling hose.
--Material: Q345R,Q370R,Q420R;
--Optional for axle brands:BPW,FUWA,L1 and so on.
--high quality steel specialled for pressure vessel production from chinese top steel company;
--Reliable design for rough road with reliable performance;
--X-ray testing for every welding line of tank body;
--Hydraulic testing for every lpg tanker;
--Heat treatment 600~640 ℃ to relief stress;
--Gas leakage test;
--customized painting and logo design;
| Tanker Essential Information | |
| Volume of Tank (cbm) | 58.5 |
| Overall Dimensions(L*W*H)(mm) | 12740*2480*3800 |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12372 |
| Estimated Tare Weight (kg) | 15300 |
| Payload(kg) | 20832 |
| Total Weight(kg) | 36132 |
| Wheelbase(mm) | 6800+1310+1310 |
| Shell of Tanker | |
| Products | Liquefied Petroleum Gas (propane) |
| Fluid Property | Flammable |
| Design Temperature(℃) | -19℃~50℃ |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1.00 |
| Weld Joint Factor | 1 |
| Major Materials of Bearing Pressure | Tanker body:Q345,12mm, |
| End plate:Q345R,12mm,double ellipse | |
| Main beam:16Mn | |
| Detection | |
| Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
| Flaw Detection | 100% Flaw detection |
| Hydraulic Test(MPa) | 2.21 |
| Manhole (As Customer’s Requirement) | |
| Quantity | 1;on top,DN450 |
| Safety Valve(As Customer’s Requirement) | |
| Quantity | 2 |
| Location | On the top of tanker |
| Size | DN50 or As Customer’s Requirement |
|
Level Gauge 3*13T Fuwa |
|
| Type | Manuel rotation type |
| Location | At the rear of the end plate |
| Running System | |
| Axles | 3*12T FUWA brand |
| Tire | 12R22.5 Tubeless tire ,12 pcs with one spare tire |
| Landing leg | JOST |
| King Pin | #50 or #90 |
| Control System | |
| Emergency Cut-off Valves | 2 pcs,1 for liquid phase and 1 for vapour phase |
| Ball Valve | 4pcs,can be discharged and loading at two sides. |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Accessories | |
| Tool Box | 2 |
| Wheel Carrier | 1 |
| Fire Extinguisher | 2 |
| Fender | 2 |
| Paint | As Customer’s Requirement |
| Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels | |
