Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck

Large Image : Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck

Product Details:

Place of Origin:	Suizhou,China
Brand Name:	CLW
Certification:	ISO, CCC
Model Number:	CLW5040XLCQ

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	15520 usd/unit~35660 usd/unit
Packaging Details:	Naked package shipped by bulk ship
Delivery Time:	30 working days after received advance payments
Payment Terms:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	300units/month

Contact Now

Detailed Product Description

Truck Brand:	Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Truck Mounted Sewage Vacuum Cleaner	Driving Model:	LHD,RHD Truck Mounted Sewage Vacuum Cleaner
Engine:	Diesel Engine Truck Mounted Sewage Vacuum Cleaner	Material:	Q235 Carbon Steel Truck Mounted Sewage Vacuum Cleaner
Tanker Size:	6cbm 6m3 Truck Mounted Sewage Vacuum Cleaner	Loading Capacity:	6tons 5tons Truck Mounted Sewage Vacuum Cleaner
Thickness Of Tanker:	5mm Or 6mm Truck Mounted Sewage Vacuum Cleaner	Vacuum Pump:	Chinese Pump/BP/Jurop/Mono Kaiser Truck Mounted Sewage Vacuum Cleaner
Suction Depth:	7meters Truck Mounted Sewage Vacuum Cleaner	Suction Distance:	50~100 Meters Truck Mounted Sewage Vacuum Cleaner
Medium:	Sewer/sludge/septic Truck Mounted Sewage Vacuum Cleaner
High Light:	6CBM Sewer Vacuum Truck , ISUZU Sewer Vacuum Truck , lhd sewage suction tanker truck

ISUZU 6CBM 6000liters 1500 Gallons 5tons Sewer Tanker Truck Mounted Sewage Vacuum Cleaner

Description--ISUZU Truck Mounted Sewage Vacuum Cleaner (also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
ISUZU Truck Mounted Sewage Vacuum Cleaner is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature

--Vacuum Sewage Suction Truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;--Mobile ISUZU 600P truck chassis;

Reference picture

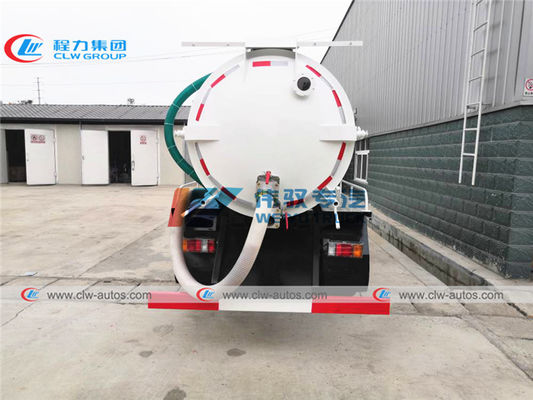

Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck 0

Specification

Chassis parameters
Cabin	ISUZU 700P cabin/Left hand drive/4x2
	GVW(kg)		10000
	Wheelbase(mm)		3815 mm
	Dimensions(mm)		670023002700mm
	Front/Rear Axle loading(kg)		4000/7000 kg
	Wheel track (front/rear) (mm)		1680/1650 mm
	Front/Rear overhang(mm)		1110/1775 mm
	Approach/Departure angle(°)		21/15 °
	Max. driving speed(km/h)		105 km/h
	Clutch		Reinforced diaphragm clutch
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	7.00R16
Gear box	Manual type,ISUZU MSB transmission/ 5 forward & 1 reverse
Engine	Brand		ISUZU engine
	Model		4KH1CN5HS
	Fuel type		Diesel
	Displacement(ml)		5193ml
	Power(kw)		96kw
	Horsepower(HP)		130 HP
	Max. Torque(N.m)		510
	Emission standard		Euro V
Sewage Suction Tanker
Sewage tank	Capacity(cbm/liters)		5CBM or 6CBM
	Tank material		Q235 carbon steel
	Thickness(mm)		5mm
	Working pressure		93% Vacuum and above
	Sewer Discharging outlet(mm)		100~150
	Tank is front tipping under function of oil cylinder
Sewage pump	Brand		China famous brand wate ring vacuum pump
	Model		SK-12
	Max. Suction Speed(m3/min)		12
	Working Speed(r/min)		970
	Max vacuum pressure		6700pa
	Power(KW)		18.5kw
Lamp	1-Revolving Warning Light on top(optional,not standard equipment) 2-Upper Arrow Warning light at truck rear(optional,not standard equipment) 6-Signal light at truck rear
Main parts	1. Suction hose 6meters 2. Water-gas separator； 3. Oil-gas separator 4. Four way valve; 5. Drain valve; 6. Sewer-observation valve(glass valve); 7. Anti overflow valve ; 8. Anti overflow warning device 9. Hydraulic control rear cover; 10. Tipping sewage tank body; 11. PTO; 12. Pressure Gauge; 13. Hand washing device.
Remarks	The color and painting is as request

Related product

Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck 3

Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck 4

Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck 5

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
