12m 14m 16m 20m 22m 4X2 Hydraulic Lift Aerial Work Platform Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

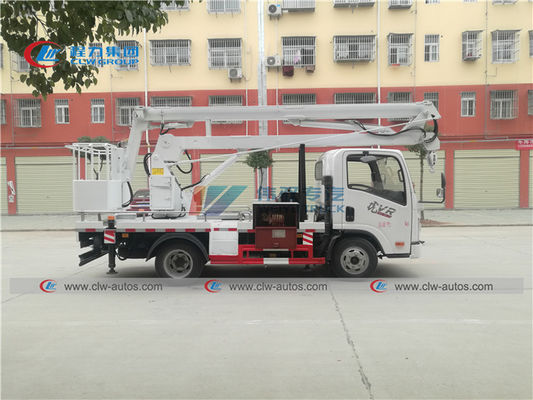

12m 14m 16m 20m 22m 4X2 Hydraulic Lift Aerial Work Platform Truck

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  12m 14m 16m 20m 22m 4X2 Hydraulic Lift Aerial Work Platform Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC,ISO,SGS,BV
Model Number: CLW5120ET

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 20-30 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 600Unit Per Month
Detailed Product Description
Brand: HOWO,Dongfeng,JAC,JMC,forland,foton Passenger: 2~3 Person
Engine: Yunnei Brand/Chinese Top Brand Front Leg: H Shape
Rear Leg: H Type Height: 12Meters,14meters,16meters, 20meters, 22meters
Bucket Capacity: 200kg Boom Type: Three Section Knuckle Arm
Delivery Time: 30 Days Warranty: 1 Year
Logo: As Per Customer's Request User Manual: Yes
Operation Video: Yes Truck Purpose: Street Light Repair
High Light:

4X2 Aerial Work Platform Truck

,

22m Aerial Work Platform Truck

,

20m hydraulic platform truck

12m/14m/16m/20m/22m 4X2 Hydraulic Lift Aerial Platform High-Altitude Operation Truck

Product Description

1. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
2. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
3. 360 degree Rotation Arms.
4. Arm and H leg Automatic Locking System to secure safety handling.



Parameter Overall dimension (Length*width*high) (mm) 5998×2000×2950
00Total Mass (kg) 4495
Kerb Mass (kg) 5450
Wheel base (mm) 4170
Front/rear tract base (mm) 1385/1425
Approach/rear angle   27/11
Max speed (km/h) 90
Fuel type   diesel
Engine Engine type   Yunnei
Displacement standard   EURO 3
Chassis Chassis type   FAW
Drive system   4x2
Tire type   7.00R16
Number of tire   6
Front/rear axle loading(kg)   1015/2025
passengers
Cabin   Single, with 2 passengers allowed, with Air conditioner
Special parameter Working platform rating loading (kg) 200
Working Height (m) 12
Max working radius (m) 6
Boom type   three section knuckle arm
Max hook height (m) 5.2
Loading of hook (kg) 800-1000
Max rotation angle (°) 360



Reference photos

12m 14m 16m 20m 22m 4X2 Hydraulic Lift Aerial Work Platform Truck 012m 14m 16m 20m 22m 4X2 Hydraulic Lift Aerial Work Platform Truck 112m 14m 16m 20m 22m 4X2 Hydraulic Lift Aerial Work Platform Truck 2



High-Altitude Operation Truck ​Working Show





12m 14m 16m 20m 22m 4X2 Hydraulic Lift Aerial Work Platform Truck 3



Diagram for cherry picker truck



12m 14m 16m 20m 22m 4X2 Hydraulic Lift Aerial Work Platform Truck 4
