FUWA Axle 25T 54000L LPG Tanker Trailer With Sun Shelter

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

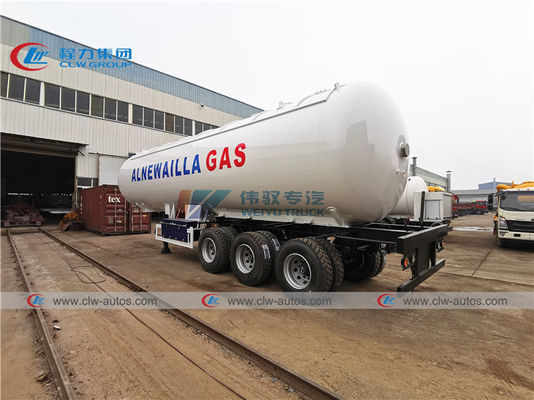

FUWA Axle 25T 54000L LPG Tanker Trailer With Sun Shelter

large.img.alt
large.img.alt

Large Image :  FUWA Axle 25T 54000L LPG Tanker Trailer With Sun Shelter

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: ASME,CCC,BV,SGS
Model Number: CLW9401WYT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 32520 usd/unit~43660 usd/unit
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 working days after receiving deposit
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Material: Q345R,Q370R,Q420R Standard: GB150-2011,GB/T19905-2005,ASME VIII Section II
Tank Capacity: 18MT,18tons,20MT,20Ton,22MT,22tons,25MT,25Tons Tank Size: 54000liters,54000L,54cbm,54m3
Axle Brand: BPW,FUWA,YORK,HJ Thickness: 12mm For Tank Shell And 14mm For End Plate
Design Pressure: 1.61mpa,16.1bar Overall Size: 12700*2550*3990 Mm
Tire: 12R22.5,315R22.5,295R22.5
High Light:

54000L LPG Tanker Trailer

,

25T LPG Tanker Trailer

,

FUWA Axle LPG Tanker Truck

FUWA axle 25Tons 54000liters LPG Tanker Trailer With Sun Shelter



LPG Tanker Trailer(Also called lpg bridger truck,lpg trailer,lpg tank trailer,lpg gas tanker,lpg semi trailer,propane tanker trailer,propane tanker) is used to transport liquid petroleum gas/propane and butane/liquified petroleum gas for long distance.



LPG tanker trailer can be customized according to the actual needs of end users. For example,lpg tanker trailer is optional for flow meters, liquefied petroleum gas pumps and liquefied petroleum gas filling systems.





lpg Tanker part: tank material Q345R (normalizing), head material Q345R (normalizing), head form and thickness: oval, thickness δ12, filling medium: liquefied petroleum gas (propane), filling factor: 0.42 tons/cubic meter, design pressure 1.61MPa, inner diameter*wall thickness*length (mm): 2300*12*11450, double discharge, double side loading and unloading, double valve box, double tool box, safety valve, DN50 liquid interface , DN25 or DN50 gas phase interface, relief valve, copper grounding wire (anti-static).



Mechanical (manual) level gauge, thermometer, pressure gauge, emergency shut-off valve, safety valve Parameter configuration: model: A412F-25-22, type: built-in full lift; nominal pressure: 2.5MPa; throat diameter: 68mm; setting Pressure: 1.73MPa; rated discharge pressure: ≤1.93 MPa; emergency shut-off device configuration: model and specification: gas phase model QGJ43F-2.5-8 specification DN25, liquid phase model QGJ43F-2.5-7 specification DN50, form: emergency shut-off valve and pass Flow restriction valve combination, operation mode: mechanical, closing time: ≤10S, melting temperature: 70±5



Walking mechanism: 13 ton BPW axle or Fuhua axle, Shanghai double coin, triangle or Fengshen tubeless tire, JOST outrigger (25T single linkage), JOST traction pin, fire extinguisher, anti-static tape, iron fender, ABS.




FUWA Axle 25T 54000L LPG Tanker Trailer With Sun Shelter 0FUWA Axle 25T 54000L LPG Tanker Trailer With Sun Shelter 1

FUWA Axle 25T 54000L LPG Tanker Trailer With Sun Shelter 2

FUWA Axle 25T 54000L LPG Tanker Trailer With Sun Shelter 3

FUWA Axle 25T 54000L LPG Tanker Trailer With Sun Shelter 4





VESSEL
To be constructed and tested according to Chinese GB/19905-2017 “LPG TRANSPORT TRUCK”,GB150.1~4-2011 “PRESSURE VESSEL”
Water capacity of Tank 54CBM
Overall Dimensions(L*W*H) 12700*2550*3990mm
Tank Dimensions(Inner Diameter*thickness*Length) 2300*12*11450mm
Estimated Tare Weight (kg) 15000
Payload(kg) 22680
Total Weight(kg) 37680
Wheelbase(mm) 6800+1300+1300
Loading medium Liquefied Petroleum Gas (propane)
Fluid Property Flammable
Design Temperature -19 ℃~+50 ℃
Design Working Pressure 1.61 Mpa/16.1 Bar
Hydraulic Testing Pressure 2.12 Mpa/ 21.2 Bar
Corrosion Allowance(mm) 1.00
Weld Joint Factor 1
Major Tanker Materials and Thickness Tanker body: Q345,12mm,
End plate:Q345R,14mm,double ellipse
Baffles:
VALVES AND FITTINGS
Emergency Shut-off Valves Model Vapour phase QGJ43F-2.5-8
Liquid phase QGJ43F-2.5-7
Size Vapour phase DN25 or DN50/1” or 2” as required
Liquid phase DN50 or DN80/2” or 3” as required
Type Mechanical operated
Shuf off time ≤10 S
Melting-close time 75±5
Safety Valve Model A412-25-16
Type Build-in
Nominal pressure 2.5Mpa/25 Bar
Valve base throat Diameter 53 mm
Curb discharge pressure ≤1.93
Level gauge YWJ-25A,manual rotation type with measuring range 50~2475mm
Pressure Gauge YN-100T
Thermometer WTQ280
KING PIN AND COUPLING
2” or 3” JOST king-pin,suitable for 4X2 or 6X4 truck head
BRAKING SYSTEM
WABCO RE 6 relay valve; Spring brake chamber; 45L air tanks
FABRICATION&TESTING
Heat Treatment Overall treatment in a furnace,600℃ to 640 ℃
Flaw Detection of All Plate 100% Flaw detection
Radio graphic testing of welding lines 100%
Air leakage test for piping and valves 100%
LOADING CABINET
All loading and unloading valves will be placed in a lockable metal cabinet at both sides of tanker trailer
The cabinet will be placed under the tanker between landing leg and axles
PAINT WORK
Two under coating of epoxidized premier
Two coats of
Customized color of tanker body and logo
RUNNING SYSTEM
Axles 3*12T FUWA brand
Tire 12R22.5 Tubeless tire ,12 pcs with one spare tire
Design speed 80 km/h
Tire Carrier 2 pcs






  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

  •





Q1: What kinds of LPG products I can order from your company?


A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.



Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?


A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.



Q3: Have you supplied LPG products to any renowned companies?


A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.



Q4: What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
