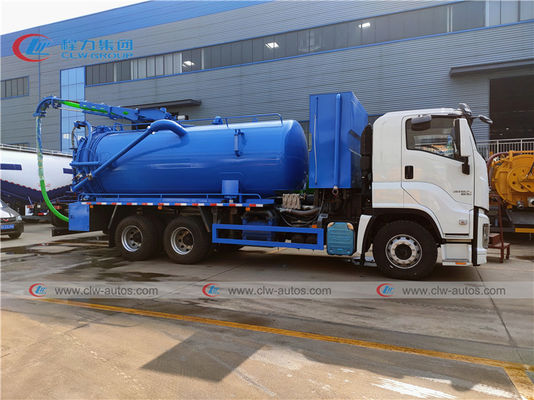

ISUZU GIGA 6X4 16000L Vacuum Sewer Jetter Truck
Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.
Isuzu sewer jetter trucks are mainly used for sewage cleaning and suction. The main special devices are vacuum pumps and tanks. The overall dimensions of the tank body are (straight section length×diameter) (mm): 5400×2150, in which the front section of the tank body is a clean water tank (the straight section length is 2400mm); the rear section is a sewage tank (the straight section length is 3000mm). The two tanks are independent and cannot be fully loaded at the same time. The clean water tank is used for the cleaning function, and the sewage tank is used for the dirt suction function. The effective volume of the clean water tank is 7.5 cubic meters, the medium: water, the density: 1000 kg/m3; the effective volume of the sewage tank is 9.3 cubic meters, the medium: liquid sewage, the density: 800 kg/m3.
Isuzu GIGA 6X4 vacuum sewer jetter truck comes with Isuzu chassis, wheelbase: 4565+1370mm, vehicle size: 9850*2500*3850mm, clean water tank 4 m3, 304 stainless steel, 3mm thick, each on the left and right is protected against water ingress. With measuring tube, Pinfu 420 flow high-pressure pump, sewage tank 15 m3, 6mm thickness, 4 baffles, baffle sealing ribs, Haosei 204 water ring pump, the tail 220 of the pneumatic blowdown, the tail 100 of the blowdown There is a sewage pipe on the left and right sides of the tank body, with guardrails on the top of the tank, 10 meters suction pipe with hydraulic boom installed, with remote control, platform under the tank, built-in roof, rear cover can be opened, 4 locks, tail The reel is enlarged. Accessories: 200m high pressure pipe, 10 combined nozzles.
Brand : ISUZU
1. Sludge tank 15000l, flushing tank 4000l.
2. Sludge tank and flushing tank material are carbon steel plate.
3. Equipped with 60m high pressure tube,diameter 19mm.
4. Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer.
5. Equipped with looking sludge window,self flow exit, and 1pcs sludge suction tube length 7m.
Brand : Italy HPP
Model : ESL122/130
Pressure : 16Mpa
Flow : 130L/min
Model : SK-12
Type : water circulation pump
Vertical suction: 9m
Flow : 1.5m3/min
Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
Chassis Brand: Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.
Drive Model: Right Hand Drive & Left Hand Drive
Engine Power: 180HP
Wheelbase: 4500 mm
Truck brand: Dongfeng,Shacman,Sinotruk howo,CAMC,FAW,ISUZU Vacuum Sewage Suction Truck
Driving model: LHD Vacuum Sewage Suction Truck
Engine: Diesel engine
Material: Q235 carbon steel
Truck brand: Dongfeng,Shacman,Sinotruk howo,CAMC,FAW,ISUZU Sewage Jetting Truck
Driving model: LHD,RHD Sewage Jetting Truck
Engine: Diesel engine Sewage Jetting Truck
Material: Q235 carbon steel Sewage Jetting Truck
