Dongfeng 170HP 10000L Vacuum Sewage Suction Truck

Large Image : Dongfeng 170HP 10000L Vacuum Sewage Suction Truck

Product Details:

Place of Origin:	Suizhou,China
Brand Name:	CLW
Certification:	ISO, CCC
Model Number:	CLW5167SQXWC

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	12520 usd/unit~22660 usd/unit
Packaging Details:	Naked package shipped by bulk ship
Delivery Time:	Within 30 days after received advance payments
Payment Terms:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	300units/month

Contact Now

Detailed Product Description

Truck Brand:	Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Sewage Jetting Truck	Driving Model:	LHD,RHD Sewage Jetting Truck
Engine:	Diesel Engine Sewage Jetting Truck	Material:	Q235 Carbon Steel Sewage Jetting Truck
Tanker Size:	10000Liters 10Tons 10m3 3000 Gallons Sewage Jetting Truck	Loading Capacity:	5tons 6tons 8tons 10tons Sewage Jetting Truck
Thickness Of Tanker:	5mm Or 6mm Sewage Jetting Truck	Vacuum Pump:	Chinese Pump,BP,Jurop,Moro Kaiser Sewage Jetting Truck
Suction Depth:	8 Meters Sewage Jetting Truck	Suction Distance:	DN50 Or DN100 2" Or 4”Sewage Jetting Truck
Medium:	Sewer/sludge/septic Suction Sewage Jetting Truck
High Light:	170HP Vacuum Sewage Suction Truck , 10000L Vacuum Sewage Suction Truck , Dongfeng Sewage Jetting Truck

Cheap Dongfeng 170hp Vacuum Sewage Suction Truck 10Tons 10000liters Sewage Jetting Truck

Description--Sewage Jetting Truck(also called sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution.
Sewage Jetting Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature

- tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP 13500,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;

---Quality chassis , perfect performance

---Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.

---Nice shape , rational structure

---Massive, durable ,perfect performance

---Prolonged service time

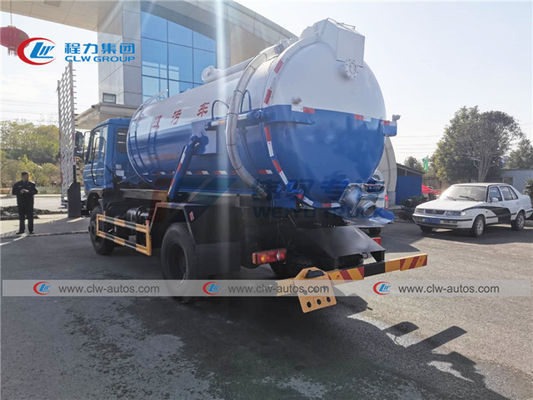

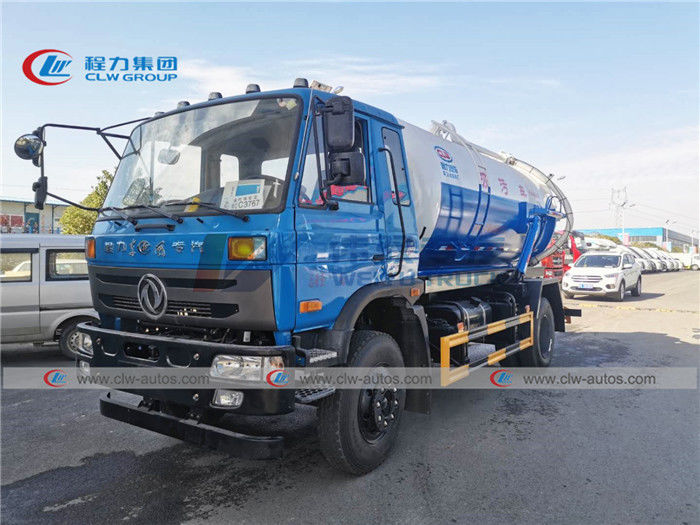

Reference picture of 10,000liters Vacuum Sewage Suction truck with cheap price and chinese vacuum pump as follows

Dongfeng 170HP 10000L Vacuum Sewage Suction Truck 0

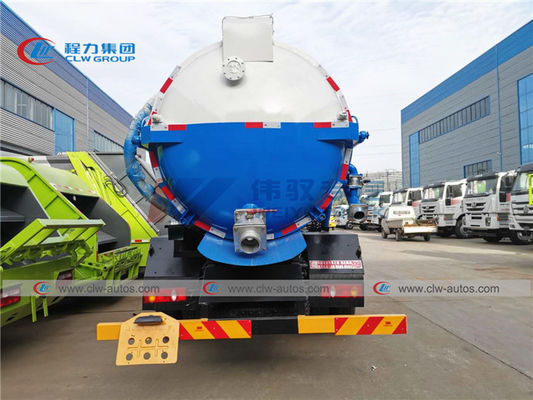

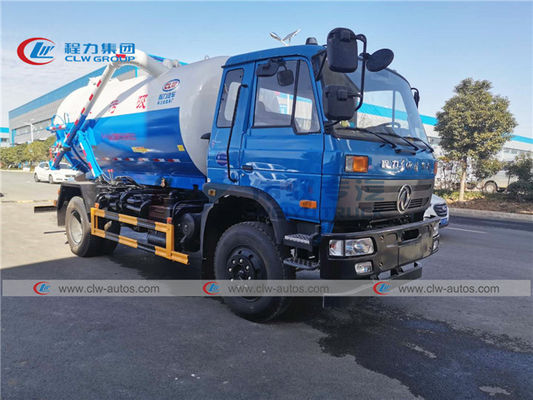

Vacuum Sewage Suction truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows,

Dongfeng 170HP 10000L Vacuum Sewage Suction Truck 3

Dongfeng 170HP 10000L Vacuum Sewage Suction Truck 4

Specification

cabin	Driving type 4x2,left hand drive
	Dongfeng old type flat cab for 2~3 persons
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		7800×2500×3250
	Wheel base (mm)		3950
	Wheel track (front/rear) (mm)		1900/1860
	Approach/Departure angle(°)		21/19
Weight in KGS	Tare Weight		7400
	payload		8205
	Front axles loading capacity		3600
	Rear axles loading capacity		8000
Max. driving speed(km/h)			90
Engine		Brand	Cummins
		Model	B170 33
		Horse Power(HP)	170
		Emission standard	Euro III
Gearbox		6 forwards & 1 reverse
Tire		9.0020 tires with one spare
Sewage Tank		Tank volume: 10cbm
		Tank material:carbon steel Q235, thickness 6mm
Vacuum Pump		Chinese Yifeng vacuum pump XD-420; Max pressure -0.09Mpa; Suction Rate 116L/S; Speed 950 r/min;
Other device		Four-way valve; Overflow valve; Strainer device; Liquid level indication； Pressure gauge DN100 Sewage Inlet and DN100 Sewage Outlet; 8 meters Sewage Suction Pipe;

Structure of a dongfeng vacuum sewage suction truck

Dongfeng 170HP 10000L Vacuum Sewage Suction Truck 6

Why do you choose us for vacuum sewage suction truck?

1.well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available

Related product

Right hand drive howo 290hp 10,000liters septic cleaning truck

Dongfeng 170HP 10000L Vacuum Sewage Suction Truck 7

Right hand drive FAW J5 10,000liters septic cleaning truck

Dongfeng 170HP 10000L Vacuum Sewage Suction Truck 8

Dongfeng 170HP 10000L Vacuum Sewage Suction Truck 9

Left hand drive dongfeng cabin 10,000liters septic cleaning truck for Uzbekistan,Kazakhstan,Kyrgyzstan

Dongfeng 170HP 10000L Vacuum Sewage Suction Truck 10

ISUZU FTR 10,000liters septic cleaning truck to Phillippines

Dongfeng 170HP 10000L Vacuum Sewage Suction Truck 11

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,dongfeng sewage truck,ISUZU sewage truck,howo sewage truck
