Dongfeng 120HP 6cbm Vacuum Sewage Suction Truck

Large Image : Dongfeng 120HP 6cbm Vacuum Sewage Suction Truck

Product Details:

Place of Origin:	Suizhou,China
Brand Name:	CLW
Certification:	ISO, CCC
Model Number:	CLW5077SQXWC

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	12520 usd/unit~22660 usd/unit
Packaging Details:	Naked package shipped by bulk ship
Delivery Time:	Within 30 days after received advance payments
Payment Terms:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	300units/month

Contact Now

Detailed Product Description

Truck Brand:	Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Vacuum Sewage Suction Truck	Driving Model:	LHD,RHD Vacuum Sewage Suction Truck
Engine:	Diesel Engine Vacuum Sewage Suction Truck	Material:	Q235 Carbon Steel Vacuum Sewage Suction Truck
Tanker Size:	6000Liters 6Tons 6m3 2000 Gallons Vacuum Sewage Suction Truck	Loading Capacity:	5tons 6tons 8tons 10tons Vacuum Sewage Suction Truck
Thickness Of Tanker:	5mm Or 6mm Vacuum Sewage Suction Truck	Vacuum Pump:	Chinese Pump,BP,Jurop,Moro Kaiser Sewage Vacuum Sewage Suction Truck
Suction Depth:	8 Meters Vacuum Sewage Suction Truck	Suction Distance:	DN50 Or DN100 2" Or 4”Vacuum Sewage Suction Truck
Medium:	Sewer/sludge/septic Suction Vacuum Sewage Suction Truck
High Light:	6cbm Vacuum Sewage Suction Truck , 120HP Vacuum Sewage Suction Truck , Dongfeng Sewage Sucking Truck

Dongfeng 120HP 6000Litres 6cbm 6m3 Vacuum Sewage Suction Truck For Kazakhstan

Dongfeng 120HP 6000Litres 6cbm 6m3 вакуумная всасывающая установка для сточных вод для Казахстана

Description--vacuum Sewage Suction Truck(also called sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution.
acuum Sewage Suction Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature

- tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP 13500,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;

---Quality chassis , perfect performance

---Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.

---Nice shape , rational structure

---Massive, durable ,perfect performance

---Prolonged service time

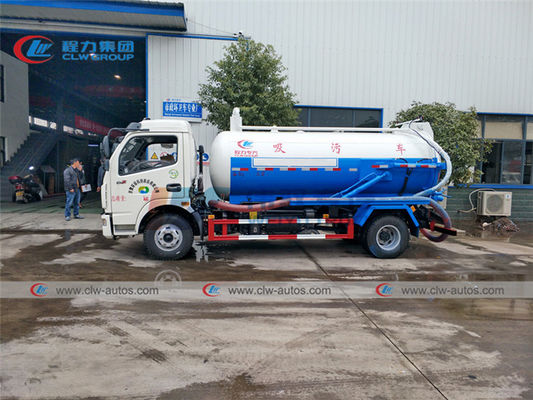

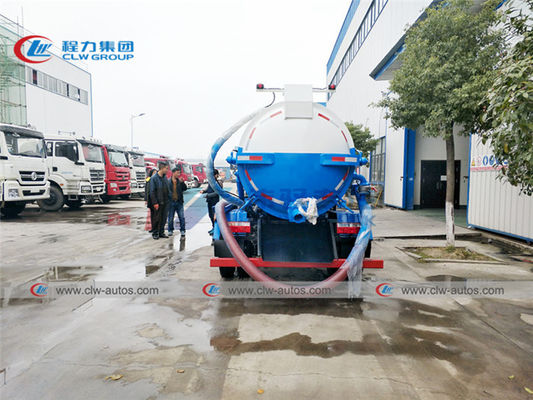

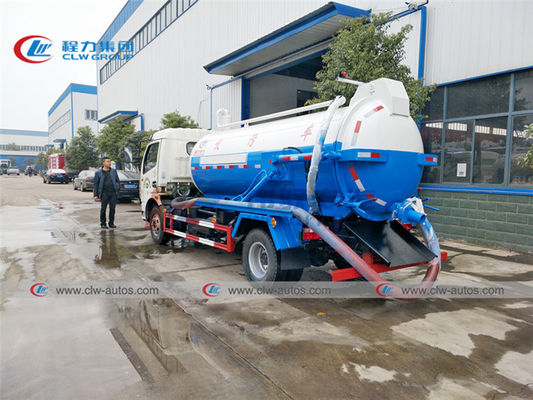

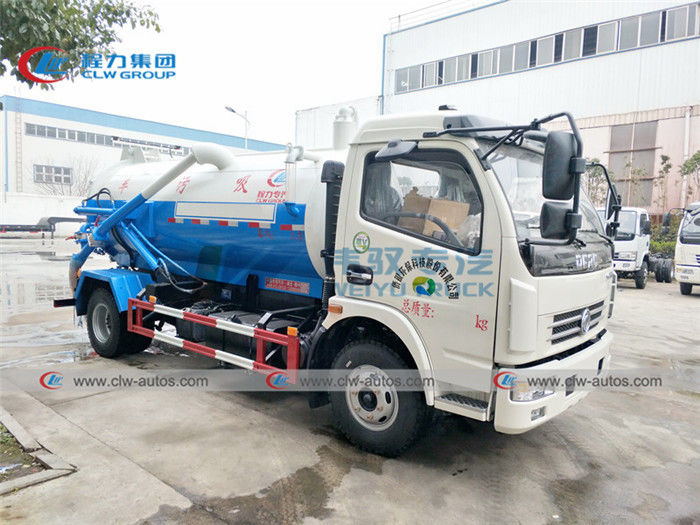

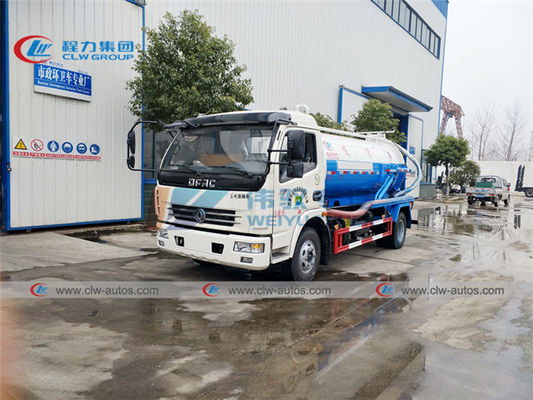

Reference picture of 6,000liters Vacuum Sewage Suction truck with cheap price and chinese vacuum pump as follows

Dongfeng 120HP 6cbm Vacuum Sewage Suction Truck 0

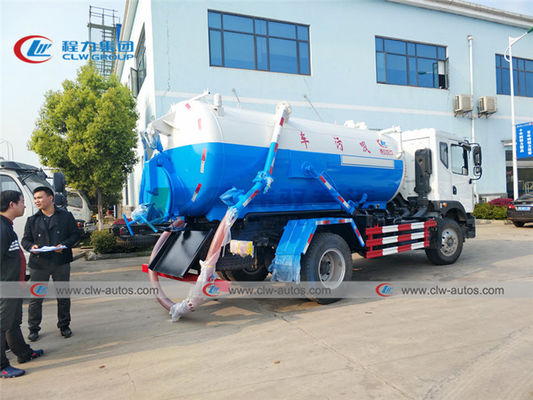

Vacuum Sewage Suction truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows,

Dongfeng 120HP 6cbm Vacuum Sewage Suction Truck 3

Dongfeng 120HP 6cbm Vacuum Sewage Suction Truck 4

Specification

cabin	Driving type 4x2,left hand drive or right hand drive
	Dongfeng Duolika flat cab for 2~3 persons
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		6500×2500×2980
	Wheel base (mm)		3800
	Wheel track (front/rear) (mm)		1900/1860
	Approach/Departure angle(°)		21/19
Weight in KGS	Tare Weight		3400
	payload		4005
	Front axles loading capacity		2200
	Rear axles loading capacity		5000
Max. driving speed(km/h)			90
Engine		Brand	Yuchai engine
		Model	YC4FA120-33
		Horse Power(HP)	120
		Emission standard	Euro III
Gearbox		6 forwards & 1 reverse
Tire		7.5020 tires with one spare
Sewage Tank		Tank volume: 6cbm
		Tank material:carbon steel Q235, thickness 6mm
Vacuum Pump		Chinese Yifeng vacuum pump XD-240; Max pressure -0.09Mpa; Suction Rate 116L/S; Speed 950 r/min;
Other device		Four-way valve; Overflow valve; Strainer device; Liquid level indication； Pressure gauge DN100 Sewage Inlet and DN100 Sewage Outlet; 8 meters Sewage Suction Pipe;

Structure of a dongfeng vacuum sewage suction truck

Dongfeng 120HP 6cbm Vacuum Sewage Suction Truck 7

Why do you choose us for vacuum sewage suction truck?

1.well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available
