Product Details:
Payment & Shipping Terms:
|
Chassis Brand: | Dongfeng, Howo, JMC, ISUZU, Etc. | Operation Height: | 18meters, 20meters, 22meters |
---|---|---|---|
Bucket Capacity: | 200kg | Working Arm Type: | H Type |
Max Operation Height: | 20m | Max Operation Range: | 8m-9m |
Engine Brand: | Cummins, Yuchai, Chaochai, Etc. | Logo And Painting: | As Per Customer's Requirements |
Delivery Time: | 30-35 Working Days | Warranty: | 1 Year |
High Light: | Foldable Knuckle Boom Truck,Hydraulic Knuckle Boom Truck,ISUZU High Altitude Operation Truck |
Product Description
1. Imported electro-hydraulic ration control valve, step less speed regulation
2. Ground & basket electro-hydraulic control.
3. Little folding beam, outreach widely
4. Large load capacity of platform
5. Telescopic lifting beam, higher lifting height from 12m to 22m.
6. Rotate degree 360 degree. ( left or right)
7. Function of position restriction, alarm in dangerous working status, high security performance
8. Large span of triggers, higher stability, triggers can be operated simultaneously or respectively
9. Urgent power.
10. Inter-lock performance, safe and reliable operation.
Product Advantage
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
Product Specification
Parameter | Overall dimension (Length*width*high) | (mm) | 9500*2500*31500 |
Total Mass | (kg) | 8500 | |
Kerb Mass | (kg) | 8050 | |
Wheel base | (mm) | 4175 | |
Front/rear tract base | (mm) | 1385/1425 | |
Approach/rear angle | 27/11 | ||
Max speed | (km/h) | 95 | |
Fuel type | diesel | ||
Engine | Engine type | ISUZU | |
Displacement standard | EURO 4 | ||
Chassis | Chassis type | isuzu | |
Drive system | 4x2 | ||
Tire type | 8.25-16 | ||
Number of tire | 6 | ||
Front/rear axle loading(kg) | 1015/2025 | ||
passengers | 2+3 | ||
Cabin | Single, with 2 passengers allowed, with Air conditioner | ||
Special parameter | Working platform rating loading | (kg) | 200 |
Working Height | (m) | 22 | |
Max working radius | (m) | 9.67 | |
Boom type | three section knuckle arm | ||
Max hook height | (m) | 9.9 | |
Loading of hook | (kg) | 800-1000 | |
Max rotation angle | (°) | 360 |

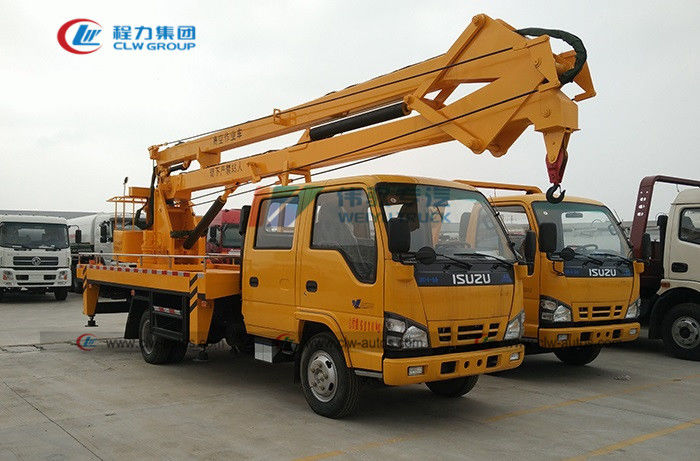

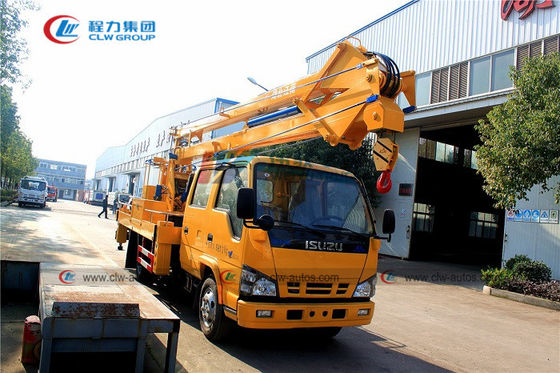

Reference Photos

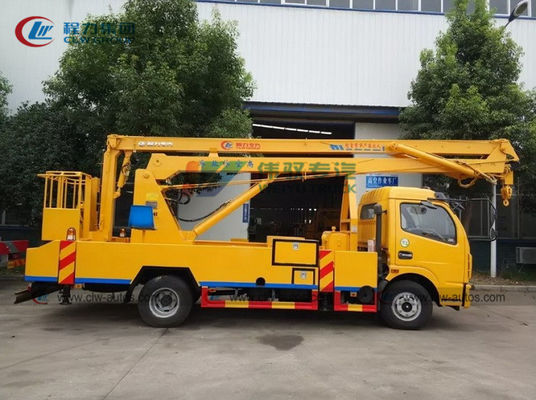

Main Structure

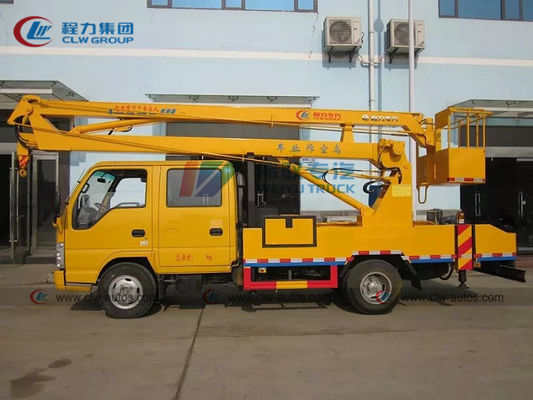

Main Details
Working Scene
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of aerial platform truck I can order from your company?
A: We can supply various sizes and types of aerial platform truck with different operation heights and chassis brands. We will recommend you the suitable product.
Q2: Have you supplied aerial platform truck to any overseas companies?
A: Yes, with needs of overseas companies or government project, we offered aerial platform truck to more than 50 countries and regions, and most of them are African, Southeast Asian, and South American countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
