Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Isuzu, HOWO, Foton, JMC, Etc. | Engine Power: | ISUZU 120HP |
|---|---|---|---|
| Auxiliary Engine: | Cummins 140HP | Dust Tank: | 4CBM, 3cbm, Etc. Stainless Steel 304 |
| Water Tank: | 1CBM, 2cbm, Etc. Stainless Steel 304 | Material: | Stainless Steel |
| Hand Driving: | Left-Hand Drive Or Right-Hand Drive | Operation: | Self-Loading And Discharge |
| Max. Operation Ability: | 40000-80000 M2/H | Max. Working Width: | 2.8m-3.5m |
| Color And Logo Paintings: | As Per Customer Requirements | Warranty: | 1 Year |
| High Light: | 8cbm Road Cleaning Vehicle,JMC Road Cleaning Vehicle,8cbm Street Sweeper Vacuum Truck |
||
Product Description
Product Specification
| Cabin | Driving type 4x2 RHD or LHD | ||||||
| single row,with two seat,with A/C | |||||||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6830*2220*2650 | |||||
| Wheel base (mm) | 3815 | ||||||
| Wheel track (front/rear) (mm) | 1680/1640 | ||||||
| Approach/Departure angle(°) | 20/13 | ||||||
| Weight in KGS | Tare Weight | 5800 | |||||
| payload | 2215 | ||||||
| Overall Weight | 8210 | ||||||
| Front axles loading capacity | 1x2950 | ||||||
| Rear axles loading capacity | 1x5260 | ||||||
| Engine | Brand | JMC | |||||
| Model | JX4D30A5H | ||||||
| Horse Power(HP) | 152HP | ||||||
| Emission standard | EuroV | ||||||
| Gearbox | Mechanical 5 forwards & 1 reverse with Synchronizer,Manual Type | ||||||
| Steering | LHD or RHD | ||||||
| Tire | 7.50R16LT,6 tires with one spare | ||||||
| Driving Type | 4X2 Rear Axle Drive | ||||||
| Suspension Type | Steel Plate Spring | ||||||
| Steel Spring No. (F/R) | 8/10+7 | ||||||
| Brake Type | Double circuit pneumatic brake, drum type | ||||||
| Braking Length(Full Load 30km/h) | ≤10m | ||||||
| Max. driving speed(km/h) | 99 | ||||||
| Min. Radius of Turning Circle(m) | 8 | ||||||
| Max. Grade-ability | ≥30% | ||||||
| Fuel Consumption of Engine | Driving(L/100km) | Working(L/h) | Working(L/10000cbm) | ||||
| ≤12 | ≤6 | ≤3 | |||||
| Special Function Parts | |||||||
| Water tank | 2000 Liters,4mm Stainless Steel | ||||||
| Garbage Hopper | 7cbm,4mm Stainless Steel,with high pressure self-cleaning device for cleaning garbage hopper | ||||||
| Cleaning Width (mm) | 2800~3200 | ||||||
| Sweeping Speed(km/h) | 3~15 km/h | ||||||
| Washing speed(km/h) | 15~20km/h | ||||||
| Max. Cleaning Capacity | 48000m2/h | ||||||
| Suction Capacity | Density(g/cbm) | 2 | |||||
| Weight(kg) | 1.5 | ||||||
| Suction granularity(mm) | ≥100 | ||||||
| Dumping angle | ≥45° | ||||||
| Sweeping Efficiency | ≥96% | ||||||
| Working Noise(db) | <88 according with GB7258 regulation | ||||||

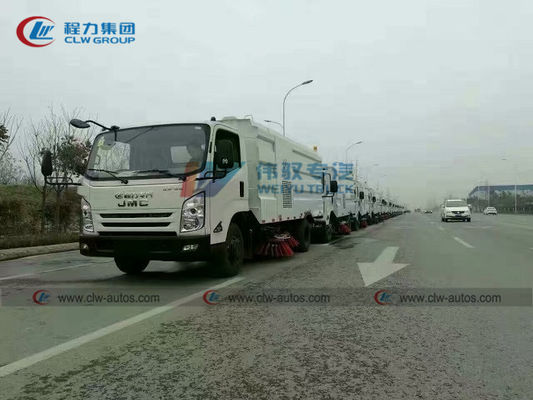

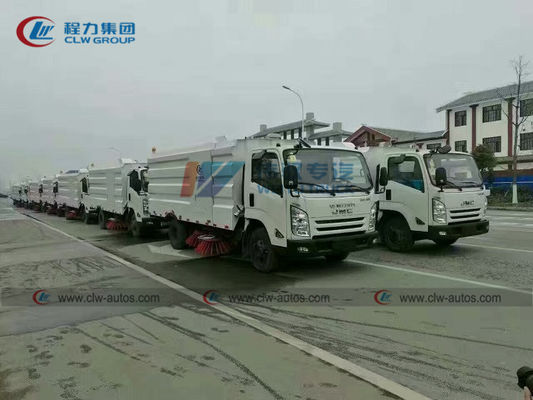

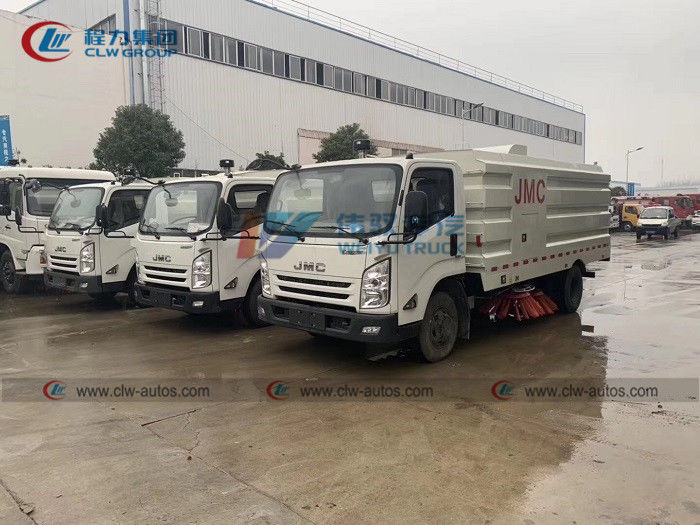

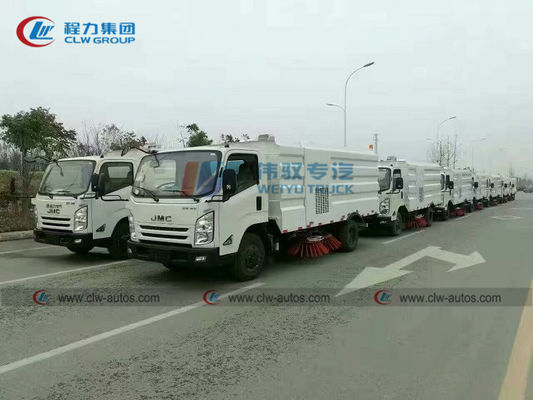

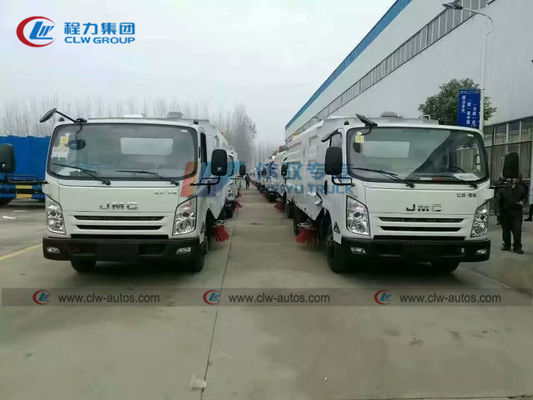

Reference Photos
Main Details
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of dust vacuum suction trucks I can order from your company?
A: There are various sizes of dust vacuum suction trucks,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied dust vacuum suction trucks to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many South America, Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
