HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsVacuum Suction Truck

RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump

RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump
RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump

Large Image :  RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW5077SQXWC

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 12520 usd/unit~22660 usd/unit
Packaging Details: Naked package shipped by bulk ship
Delivery Time: Within 30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Septic Truck Driving Model: LHD,RHD Right Hand Drive Septic Truck
Engine: Diesel Engine Septic Truck Material: Q235 Carbon Steel Septic Truck
Tanker Size: 5000Liters 5Tons 5m3 1500 Gallons Septic Truck Loading Capacity: 5tons 6tons Septic Truck
Thickness Of Tanker: 5mm Or 6mm Septic Truck Vacuum Pump: Chinese Pump,BP,Jurop,Moro Kaiser Septic Truck
Suction Depth: 6 Meters Septic Truck Suction Distance: DN50 Or DN100 2" Or 4”Septic Truck
Medium: Sewer/sludge/septic Suction Septic Truck
High Light:

5T Vacuum Septic Truck

,

Sino Howo Vacuum Septic Truck

,

RHD Septic Vacuum Trucks



Sino Howo 5000liters 5000L 5Tons Vacuum Septic Truck With Italy Pump


Description--Septic Truck(also called sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution.
Septic Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.





Feature
- tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP 13500,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;
---Quality chassis , perfect performance
---Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.
---Nice shape , rational structure
---Massive, durable ,perfect performance
---Prolonged service time



Reference picture

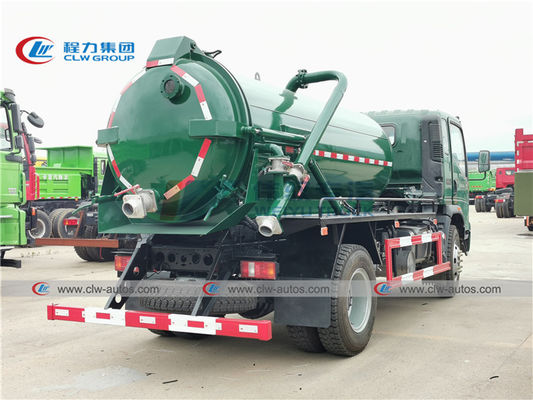

Rear view of Howo 5000liters 5000L 5Tons Vacuum Septic Truck

RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump 0RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump 1RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump 2

RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump 3

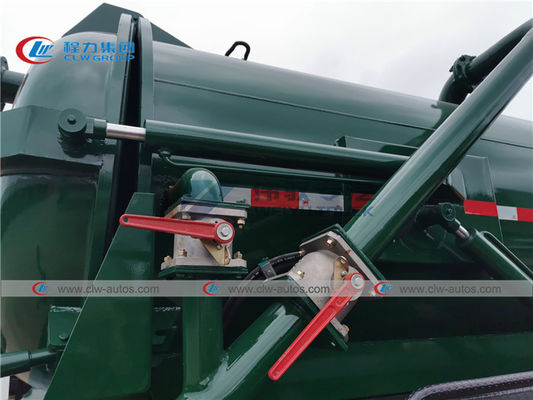

Italy BP/Battioni Pagani  vacuum pump Howo 5000liters 5000L 5Tons Vacuum Septic Truck

RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump 4

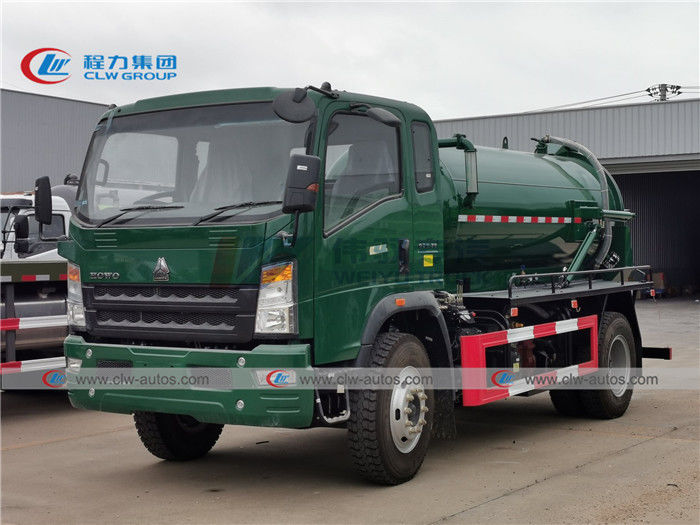

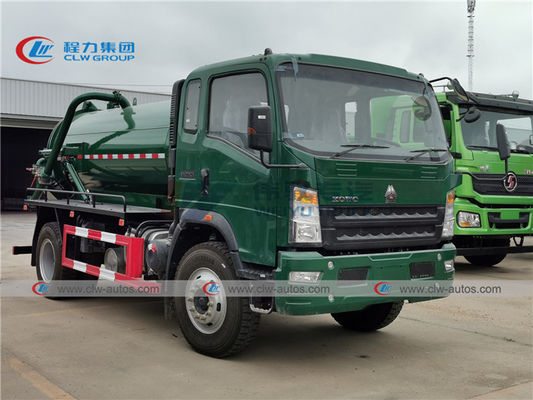

Right hand drive Howo 5000liters 5000L 5Tons Vacuum Septic Truck

RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump 5

Vacuum Septic tank is optional for another design with water tanker and high pressure flushing and washing device for high pressure septic cleaning service as follows,



RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump 6

RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump 7RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump 8
Specification
Vehicle Description
Overall dimensions
5850*2100*2600mm
GVW
8000kg
Curb weight
4000kg
Chassis brand
SINOTRUK
Traction type
4*2, left/right hand drive
Chassis Description
Chassis model
ZZ1047D3415
Cab
SINOTRUK light truck,L2W-2080
Wheelbase
3360mm
Tire specification
7.50R16
Tire quantity
6+1 units
Engine
Engine model
YN4102QBZL
Emission level
Euro 2
Displacement/output
3760ml/75kw
Horse power
116hp
Gear box
Model
WLY6T46

Number of gears
6 forward gears & 1 reverse
Brake system
Full air brake system
Axle
Front
2.4T
Rear
4.2T
Suspension
Front
Leaf springs
Rear
Leaf springs
Fuel tanker
Type
Steel fuel tank, with lockable cap
Capacity
120L
Tanker Description
Tanker
Capacity
2000 L, 3000 L, 4000 L
Material
5mm thickness, high quality carbon steel
Structure
Welding, vacuum tank, Cylindrical
Pump
Type
Vacuum pump
Brand
Hangzhou WEILONG
Flux
45L/S
Rating speed
500~800r/min
Shaft power
4kw
Pipe
Suction and discharge pipe
Special function
Suction time: ≤5min,
Effective suction range: ≥8,
Max vacuum degree: ≤15Kpa,
Dump angle: ≥45
Standard configuration
Equipped with observing window and cleaning device.
Equipped with tanker hydraulic lift and lock discharge rear cover, sewage suction hose, outlet.
Optional configuration
Tanker material: stainless steel.
Double pump could be available (above 8cbm suggested).
Imported scraper pump could be available.
Over flow system could be available.





Structure of a vacuum septic truck



RHD Sino Howo 5T Vacuum Septic Truck With Italy Pump 9



Why do you choose us for vacuum septic truck?



1.well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;

3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price  whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available
