HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsVacuum Suction Truck

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive
Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive

Large Image :  Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW5257SQXWC

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 22520 usd/unit~39660 usd/unit
Packaging Details: Naked package shipped by bulk ship
Delivery Time: Within 30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: Dongfeng,Shacman,Sinotruk Howo Vacuum Sludge Truck Driving Model: LHD,RHD Right Hand Drive Vacuum Sludge Truck
Engine: Diesel Engine Vacuum Sludge Truck Material: Q235 Carbon Steel /stainless Steel Vacuum Sludge Truck
Tanker Size: 10000Liters 10m3 3000 Gallons 12m3 12000liters Septic Truck Loading Capacity: 10tons 12tons 15tons Vacuum Sludge Truck
Thickness Of Tanker: 5mm Or 6mm Vacuum Sludge Truck Vacuum Pump: Chinese Pump,BP,Jurop,Moro Kaiser Septic Truck
Suction Depth: 6 Meters Septic Truck Suction Distance: DN50 Or DN100 2" Or 4”Septic Truck
Medium: Sewer/sludge/septic Suction Septic Truck Driving Type: 4X4/6X6/Off Road/6WD Military Vacuum Sludge Truck
High Light:

12000L Sewer Cleaning Truck

,

10000L Sewer Cleaning Truck

,

6X6 Sewer Vacuum Truck

Sinotruk Howo 6X6 Full Wheel Drive 10000 liters 12000L Vacuum Sludge Tanker Truck for UN

Description--Vacuum sludge truck(also called sludge truck,sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution.
Vacuum sludge truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.



Feature
- tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP 13500,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;
---Quality chassis , perfect performance
---Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.
---Nice shape , rational structure
---Massive, durable ,perfect performance
---Prolonged service time

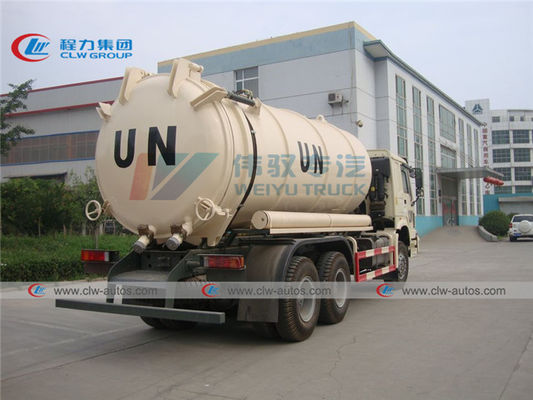

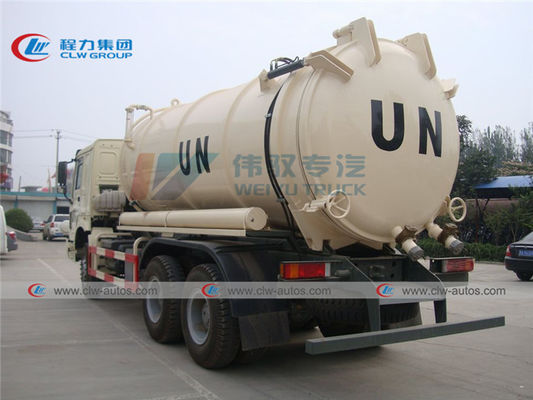

Reference picture

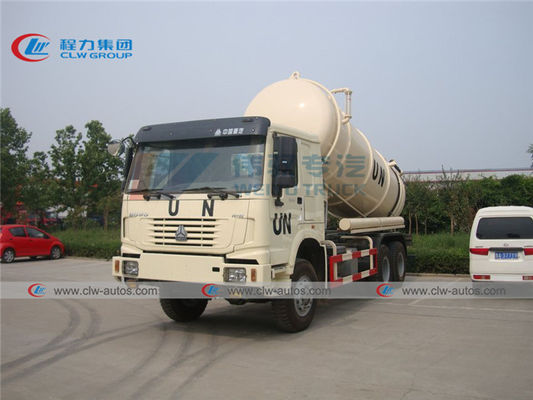

front view of howo 6X6 vacuum sludge  truck

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 0

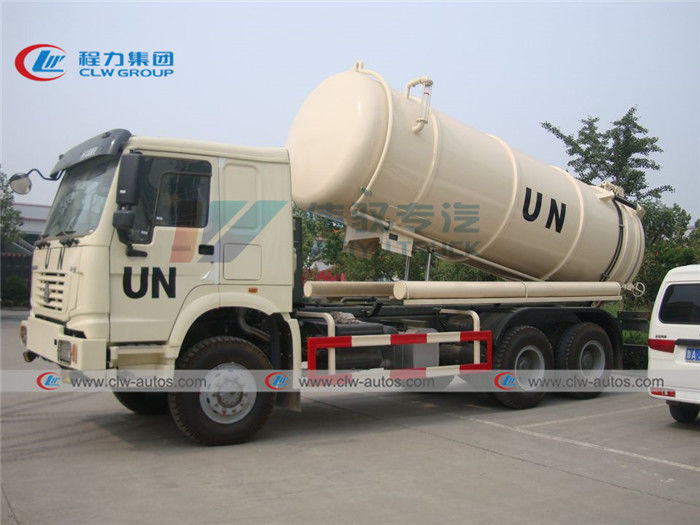

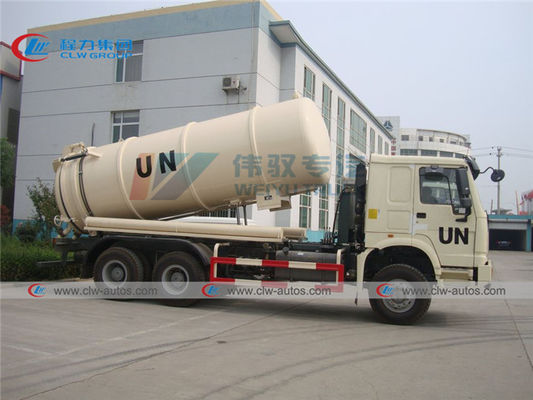

side view of howo 6X6 vacuum sewer truck

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 1Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 2

Howo 6X6 high pressure sewer jetting truck for Brunei

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 3

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 4

Italy BP/Battioni Pagani vacuum pump

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 5



Vacuum sludge tank is optional for another design with water tanker and high pressure flushing and washing device for high pressure septic cleaning service as follows,



Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 6

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 7Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 8
Specification

Item No. Parameters
Overall Dimension 8600x2500x3530 mm
Gross Vehicle Weight 25000 kg
Curb Weight 12500 kg
Loading Weight 12500 Kg
Wheel Base 3800+1400mm
Front/rear Tread 1430/2200 mm
Approach/Departure Angle 19/20 degree
Front Axle HF7 Drum, 7 Tons
Rear Axle ST16, 16 tons, Ratio 5.73
Engine SINO Truck Diesel WD615.47,
Watering Cooling, Four Stroke, 6 Sylinder in Line, Direct Injection
Engine horsepower 371 HP Euro II
Displacement 9.726 L(Diesel)
Full loading Fuel
Consumption Rate
Maximum 193 g/kW.h
Max Driving Speed 80 km/h
Gear Box HW19710 Transmission,10 Forward Gear & 2 Reverse Gear
Steering Gear ZF8118, hydraulic steering with power assistance
Power Divider #2000
Cabin HW76 Standard Cabin, RHD, 1 Sleeper, Air Conditioner, 3 Passengers,
Fuel Tank 400 Liters
Tire 12.00R20 (10 pieces with one spare)
Tank Capacity 10m3/12m3/15m3
Tank Material Material: Q235 high tension steel, 6mm Tank body and End Plate,
With Hydraulic Controlled Rear Door and Middle lifting.
Vacuum Suction Pump Italian Made Jurop Pump PN84D or Chinese yifeng water ring vacuum pump, 4" diameter Rubber tube in 6 meters long, Vertical Suction Range 6 meters under ground level, Full Tank Suction time about 9 minutes, Vacuum Pressure -0.092Mpa



Structure of a vacuum sludge truck

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 9



Why do you choose us for vacuum sludge truck?



1.well experienced truck production company to offer high quality and competitive-price vacuum sewage sludge truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;

3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price  whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available





Related product

Right hand drive howo 290hp 10,000liters vacuum sludge truck



Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 10

Right hand drive FAW J5 10,000liters vacuum sludge truck

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 11

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 12

Left hand drive dongfeng cabin 10,000liters vacuum sludge truck for Uzbekistan,Kazakhstan,Kyrgyzstan

Левосторонняя кабина dongfeng с вакуумным отсосом сточных вод емкостью 10 000 литров для Узбекистана, Казахстана и Кыргызстана

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 13

ISUZU FTR 10,000liters vacuum sludge truck to Phillippines

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 14



Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,dongfeng sewage truck,ISUZU sewage truck,howo sewage truck
