Product Details:
Payment & Shipping Terms:
|
| Brand: | HOWO,Dongfeng,JAC,FOTON,Shacman | Fuel: | Diesel |
|---|---|---|---|
| Wheelbase: | 3950mm | Tank Material: | Carbon Steel, |
| Thickness: | 4mm | Waste Tank Size: | 10,000liters,10cbm, 10m3 |
| Discharge: | Tank Body Hydraulic Lifting | Vacuum Pump: | China Famous Brand/Italy Brand |
| Sewage Suction Pipe: | 8 Meters | Suction Time: | Less Than 5 Minutes |
| Warranty: | One Year | Color: | Customized LOGO |
| Delivery Time: | 30 Days | ||
| High Light: | 8000 Liters Sewer Cleaning Truck,SINOTRUK HOWO Sewer Cleaning Truck,SINOTRUK HOWO Sewage Vacuum Truck |
||
SINOTRUK HOWO 8000Liters Sewer Cleaning Truck Sewage Vacuum Truck
Product Description
1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
| Technical Specification | ||||
| Condition | New condition/Right-hand drive/4x2 | |||
| Chassis | Brand | HOWO | ||
| Curb weight(kg) | 8300 kg | |||
| Wheelbase(mm) | 3950 mm | |||
| Dimensions(mm) | 7400*2470*2850 mm | |||
| Wheel track (front/rear) (mm) | 1910/1800 mm | |||
| Front/Rear overhang(mm) | 1250/1650 mm | |||
| Axle Loading(kg) | 3600/9000kg | |||
| Approach/Departure angle(°) | 34/15 ° | |||
| Max. driving speed(km/h) | 85km/h | |||
| Clutch | Reinforced diaphragm clutch | |||
| Brakes | Air brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||
| Tire | Quantity | 6pcs with one spare tire | ||
| Specifications | 9.00-20 nylon tire | |||
| Transmission | Manual type, 5 Forwards and 1 reverses. | |||
| Cabin | It can accommodate three people. With Air Conditioner. | |||
| Engine | Brand | Cummins | ||
| Model | B140 33 | |||
| Fuel type | Diesel | |||
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Displacement(ml) | 3900 ml | |||
| Power(kw) | 103 kw | |||
| Horsepower(HP) | 140 HP | |||
| Cylinder number | 4 | |||
| Emission standard | Euro 3 | |||
| Sewage tank | Capacity(cbm/liters) | 8cbm/8,000 liters | ||
| Tank material | Q235 carbon steel | |||
| Sewage pump | Quantity(units) | 1 | ||
| Chinese Brand Pump | Model | XD-360 | ||
| Rate suction speed(m³/h) | 360m³/h | |||
| Remarks | The color and Logo can be customized. | |||

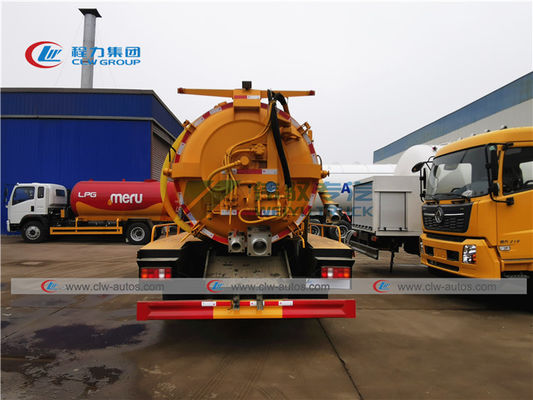

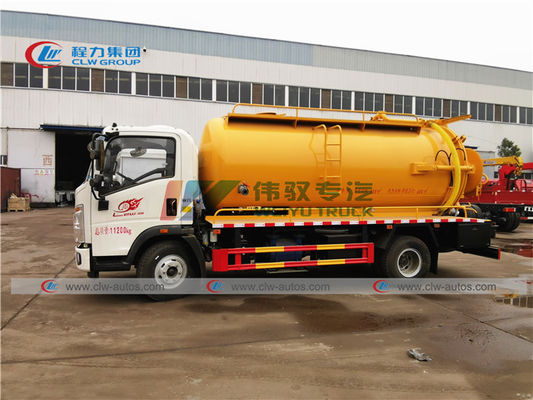

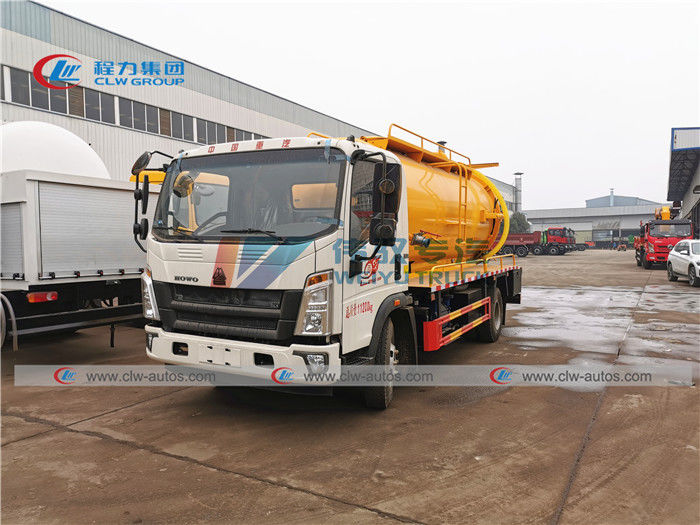

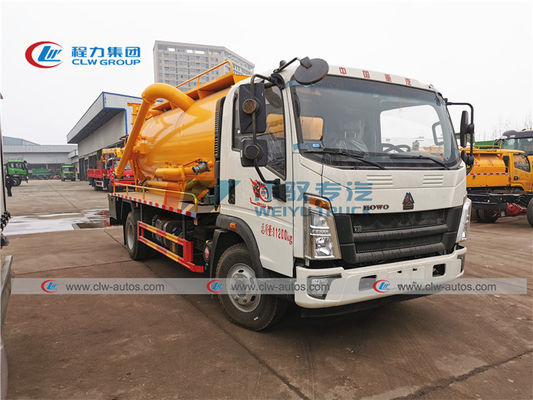

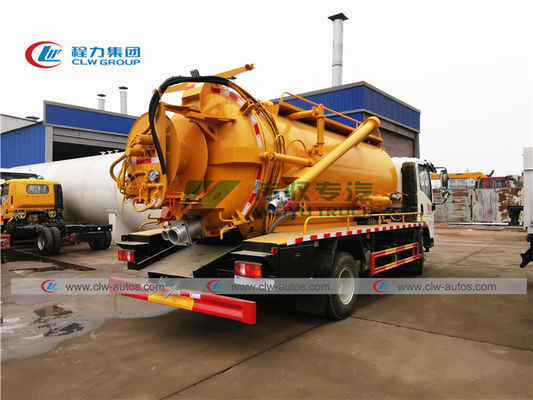

Reference photos for SINOTRUK HOW 8000Liters Sewer Cleaning Truck
Discharge
Sewer Cleaning Truck Working Show
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
