8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

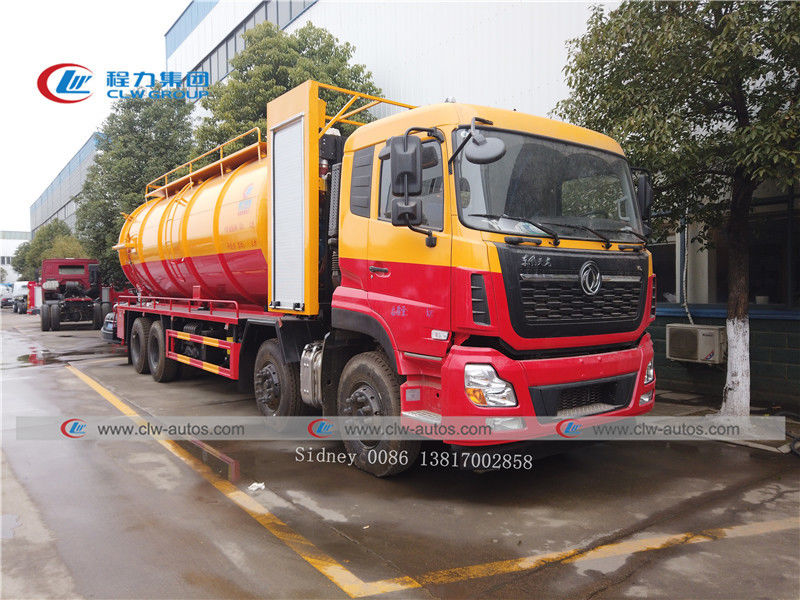

8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck

8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck
8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck

Large Image :  8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck

Product Details:

Place of Origin: China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW5100GWLK

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD63500-72500
Packaging Details: Naked packing
Delivery Time: 30-35days after received advance payments
Payment Terms: L/C, T/T
Supply Ability: 500units/month
Detailed Product Description
Tank Material: Strong Carbon Steel Tank Capacity: 25CBM To 30CBM
Pump: Italian Jurop, Weilong Brand Truck Brand: Dongfeng, Sinotruk, Shacman, Benz,
Tank Pressure: -0.97Mpa Optional: 60meter Rubber For Sewer Cleaning
Tire: 11R22.5, 12R22.5. 6 Pieces With 1 Spare Tire Loading Capacity: 25Ton To 30Ton
Color: Customized
High Light:

25m3 Sewage Drainage Truck

,

Dongfeng Kinland Sewage Drainage Truck

,

8X4 Sewage Suction Truck

8X4 Dongfeng Kinland 25m3 Heavy Duty High Pressure 25000litres Sewage Suction & Jetting Truck with High Pressure Hose for sale

Function:

(1)Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.

(2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

(3)vacuum tank capacity ranges from 3,000 Liters to 20,000 liters



Features:

a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.

b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.

c.Pump can be operated by a hydraulic motor or by an auxiliary engine.

d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.

e.Nice shape ,rational structure,durable and long service life

Technical data

The Parameters of 25CBM Sewage Suction Truck
Overview
Name Sewage Suction Truck
Dimension(LxWxH) 10000X2530X3600(mm)
Total Mass 31000 Kg
Rated Payload 15670 Kg
Curb Weight 15200 Kg
Passenger 3
Approach/Departure Angle 32/14
The Parameters of Chassis
Manufacture Dongfeng
Driving Type 8*4 left/right hand drive
Gearbox 10 forward and 1 reverse, manual
Front/Rear Suspension 1515/1585(mm)
Wheel Base 1850+3700+1350(mm)
Alxe Load 6500/6500/18000kgs
Tyre 12.00R20
The Number of Tyre 12+1(spare tyre)
Leaf Spring Number 9/13,10/13
The Paremeters of Engine
Rated Power cummmins engine, 231kw/314hp
Fuel Type Diesel oil
Displacement/Capacity 6700ml
Emission Standard Euro3
Cylinder Straight/6/intercooling
Max. torque 700N.m
Velocity 2500rpm
Max speed 89km/h



Superstructure
Sewage Tanker Tank material
​​​​​​8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 0
High quality steel plate

Tank thickness 6mm
Capacity

25 cbm/ 25,000 Liters
Shape Cylindrical

Vacuum Suction Pump

Brand Chinese famous brand
Time for full suction ≤12min
Sewage Pipe 1 pc
Dumping System Self unloading, Hydraulic Controlled Rear Door and Middle lifting
Other Parts Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device, Glass window, PTO




Products Show

8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 18X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 28X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 38X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 48X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 58X4 Dongfeng Kinland 25m3 Sewage Drainage Truck 6







Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What kinds of Sewer cleaning truck I can order from your company?

A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.



Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.



Q3: Can we adopts International brand sewage pump for sewage suction truck?

A: Sure, we already cooperated with Italy Jourp and a Germany brand.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
