20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

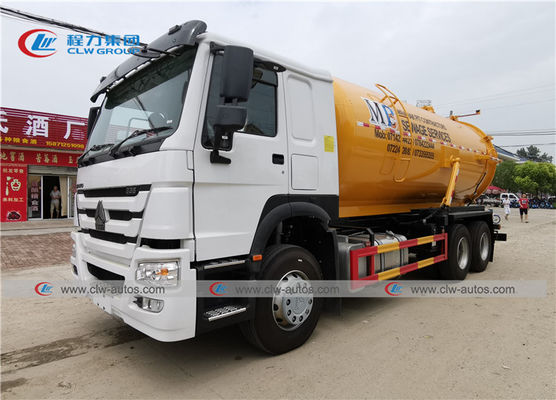

20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW5255WYXWC

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 35520 usd/unit~59660 usd/unit
Packaging Details: Naked package shipped by bulk ship
Delivery Time: Within 30days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Suction -Type Sewer Scavenger Driving Model: LHD,RHD Suction -Type Sewer Scavenger
Engine: Diesel Engine 266hp,290hp,336hp,371hp Suction -Type Sewer Scavenger Material: Q235 Carbon Steel Suction -Type Sewer Scavenger
Tanker Size: 16cbm 18cbm 20cbm Suction -Type Sewer Scavenger Loading Capacity: 16tons 18tons 20tons Suction -Type Sewer Scavenger
Thickness Of Tanker: 5mm Or 6mm Suction -Type Sewer Scavenger Vacuum Pump: Chinese Pump,BP,Jurop,Mono Kaiser Suction -Type Sewer Scavenger
Suction Depth: 7meters Suction Distance: 50~100 Meters Suction -Type Sewer Scavenger
Medium: Sewer/sludge/septic Suction Suction -Type Sewer Scavenger
High Light:

Howo Sewer Suction Truck

,

20CBM Sewer Suction Truck

,

371HP Vacuum Suction Truck

Howo 371HP 6X4 Suction -Type Sewer Scavenger 20,000L 20CBM
Description--Suction -Type Sewer Scavenger (also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
Suction -Type Sewer Scavenger is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.





Feature
- Suction -Type Sewer Scavenger tanker material optional for carbon steel or stainless steel 304;- Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;- Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro PM110W imported brand;- Suction speed less than 10min and and discharge speed less than 8 min;- horizontal suction distance: within 80 meters;- Vertical suction depth:within 9 meters;- Large horsepower 290hp,336hp or 371hp howo truck chassis;



Reference picture

Rear view of howo 20000L Suction -Type Sewer Scavenger

20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 0

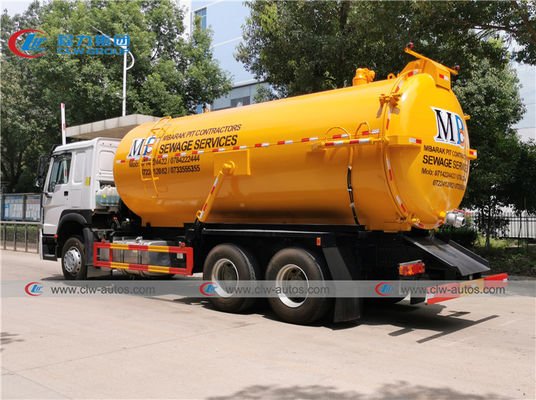

Rear side view of howo 20000L Suction -Type Sewer Scavenger

20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 1

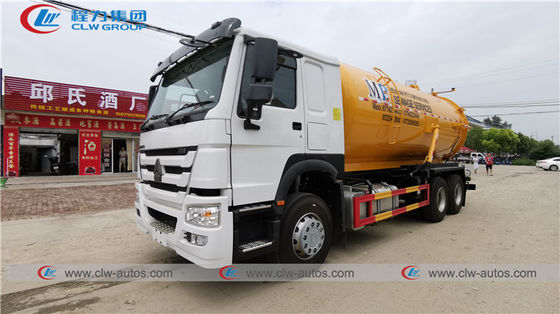

front view of howo 20000L Suction -Type Sewer Scavenger

20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 2

Chinese vacuum pump of howo 20000L Suction -Type Sewer Scavenger

20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 3

20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 420CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 5



Specification of howo 20000L Suction -Type Sewer Scavenger



Product Information
Product Suction -Type Sewer Scavenger
Brand Name SINOTRUK-HOWO
Chassis Model ZZ1257N4647
Place of Origin Suizhou, China
Color Any color will be available
Product Specifications
Engine Power 249kw/336hp
Overall dimension(L*W*H) 10350*2496*3800
Effective volume 18m3/20m3
Wheelbase 4600+1350mm
Front overhang 1500mm
Rear overhang 2900mm
Tread 2022/1830mm
Max speed 90/102km/h
Vehicle gross weight 25000kg
Front axle HF7
Rear axle ST16
Transmission 10 speeds forward and 2 reverse
Tire 295/80R22.5, 10+ 1 spare
Cabin HW76, one sleeper with AC
Diameter of suction tube Φ100mm
Suction depth 6m
Vacuum pump Jurop pump/Mono Keiser/BP/Chinese pump SK-12
Absorb pipe 4” 6meter black pipe
Tank Material Carbon steel Q235-B
Thickness Shell cover:8mm, Tank body:6mm
Water tank 20L



20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 6

Vacuum sewer pump in stock

20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 7

20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 8

Related product



20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 9

20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 10

20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck 11

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
