Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks

Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks
Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks

Large Image :  Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW5047SQXWC

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 12520 usd/unit~22660 usd/unit
Packaging Details: Naked package shipped by bulk ship
Delivery Time: Within 30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Vacuum Septic Truck Driving Model: LHD,RHD Vacuum Septic Truck
Engine: Diesel Engine Vacuum Septic Truck Material: Q235 Carbon Steel Vacuum Septic Truck
Tanker Size: 4000Liters 4Tons 4m3 1000 Gallons Vacuum Septic Truck Loading Capacity: 4tons 4t Vacuum Septic Truck
Thickness Of Tanker: 5mm Or 6mm Vacuum Septic Truck Vacuum Pump: Chinese Pump,BP,Jurop,Moro Kaiser Vacuum Septic Truck
Suction Depth: 8 Meters Vacuum Septic Truck Suction Distance: DN50 Or DN100 2" Or 4”Vacuum Septic Truck
Medium: Sewer/sludge/septic Suction Vacuum Septic Truck
High Light:

4m3 Septic Vacuum Trucks

,

95HP Septic Vacuum Trucks

,

Right Hand Drive Septic Tanker Truck

Right Hand Drive Dongfeng 95HP 4000L 4m3 Vacuum Septic Tanker Truck

Description--Vacuum Septic Truck(also called sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution.
Vacuum Septic Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.





Feature
- tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP 13500,Jurop,Keiser Moro imported brand;-- Suction speed less than 10min and and discharge speed less than 8 min;-- horizontal suction distance: within 80 meters;-- Vertical suction depth:within 9 meters;
-- Quality chassis , perfect performance
-- Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.
-- Nice shape , rational structure
-- Massive, durable ,perfect performance
-- Prolonged service time

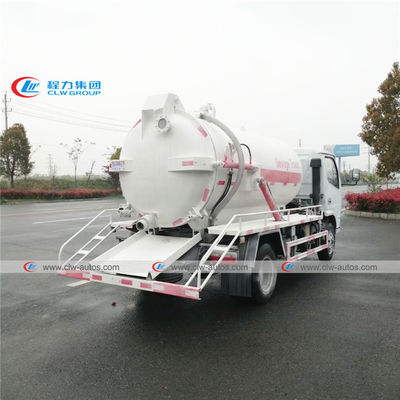

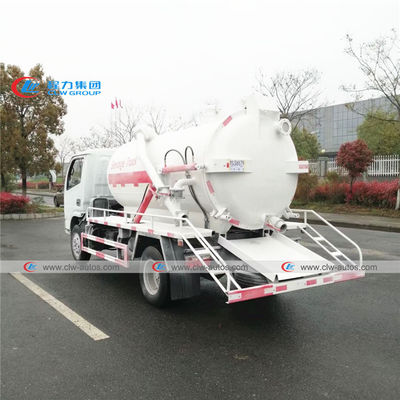

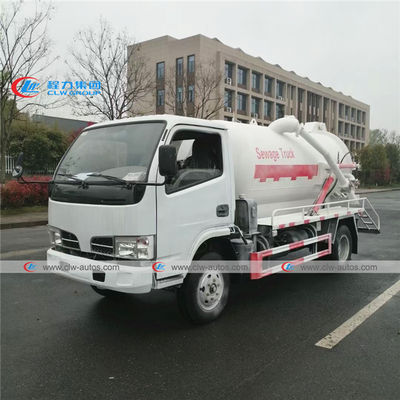

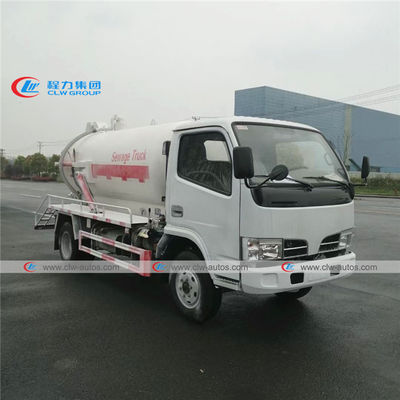

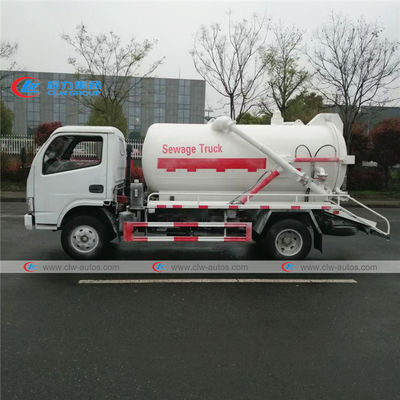

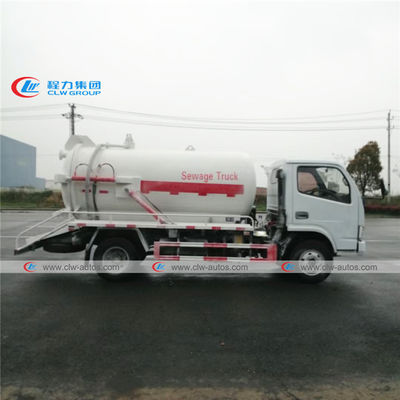

Reference picture of 4000liters Vacuum Septic Truck as follows

Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks 0Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks 1Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks 2

Vacuum Septic Truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows,



Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks 3

Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks 4

Specification



cabin

Driving type 4x2,left hand drive or right hand drive


Dongfeng Duolika flat cab for 2~3 persons
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 5900×2500×2980
Wheel base (mm) 3300
Wheel track (front/rear) (mm) 1900/1860
Approach/Departure angle(°) 21/19
Weight in KGS Tare Weight 3400
payload 4005
Front axles loading capacity 2200
Rear axles loading capacity 5000
Max. driving speed(km/h) 90
Engine Brand Yuchai engine
Model

CY4102

Horse Power(HP) 95
Emission standard Euro III
Gearbox 6 forwards & 1 reverse
Tire 7.00R16 tires with one spare
Sewage Tank Tank volume: 4cbm
Tank material:carbon steel Q235, thickness 6mm
Vacuum Pump

Chinese Yifeng vacuum pump XD-240;

Max pressure -0.09Mpa;

Suction Rate 116L/S;

Speed 950 r/min;

Other device

Four-way valve;

Overflow valve;

Strainer device;

Liquid level indication;

Pressure gauge

DN100 Sewage Inlet and DN100 Sewage Outlet;

8 meters Sewage Suction Pipe;



Structure of a dongfeng vacuum sewage suction truck



Right Hand Drive Dongfeng 95HP 4m3 Septic Vacuum Trucks 5



Why do you choose us for vacuum sewage suction truck?



1.well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price  whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available
