ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck

ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck
ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck

Large Image :  ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC ISO ASME
Model Number: CLW5256XXCB

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 34250-75620USD/UNIT
Packaging Details: Naked package shipped by bulk ship
Delivery Time: 30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: ISUZU,HOWO,DONGFENG,FAW,SHACMAN Lpg Tanker Truck Material: Q345R Lpg Tanker Truck
Tank Size: 20000L 24000L 20000Liters 24000Literslpg Tanker Truck Loading Weight: 10tons/10mt/8tons/8mt Lpg Tanker Truck
Engine: Diesel Engine Lpg Tanker Truck Horsepower: 350hp Lpg Tanker Truck
Purpose: Skid Station Refilling,cylinder Fillinglpg Tanker Truck Design Pressure: 1.61Mpa 16.1Bar Lpg Tanker Truck
Drive Wheel: 4x2, 6x4, 8x4, 4X2 6X4 8X4 6X2 4X4 6X6, 4*2.4*4.6*2.6*4.6*6.8*4.8*6.8*8 Storage: LPG, Oil, Water, Lpg Propane Pentane, Gas
Emmission: Euro2/3/4/5, Euro III/Euro IV/ EuroVlpg Tanker Truck Name: Lpg Tank Truck, LPG TANK TRUCK GAS FILLING TRUCK / Lpg Cylinder Filling Truck, Gas Refuel Truck
High Light:

10 Tons LPG Transport Truck

,

ISUZU GIGA LPG Transport Truck

,

20m3 LPG Tanker Truck

ISUZU GIGA 6X4 350HP 20m3 20000L 10Tons LPG Gas Tanker Transport Truck

lpg tanker truck (also called lpg refueling truck, lpg truck, lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

With different design,you can choose volume flow meter or lpg dispenser for your truck. propane truck is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.



1) Truck Brand optional for lpg tanker truck :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

2) Tank Size of lpg tanker truck  : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L lpg tanker truck

3) Function of lpg tanker truck : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

4) Refiling System of llpg tanker truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

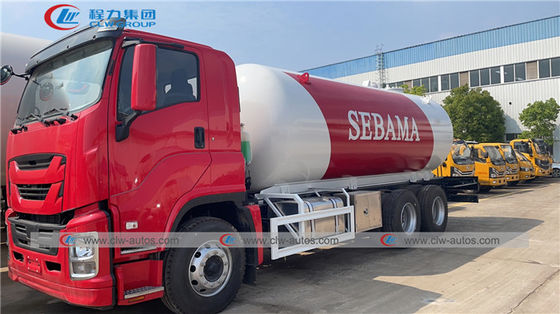

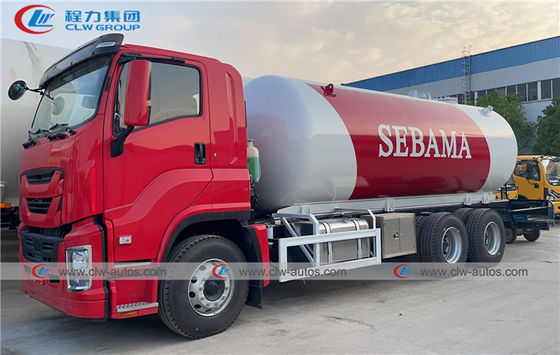

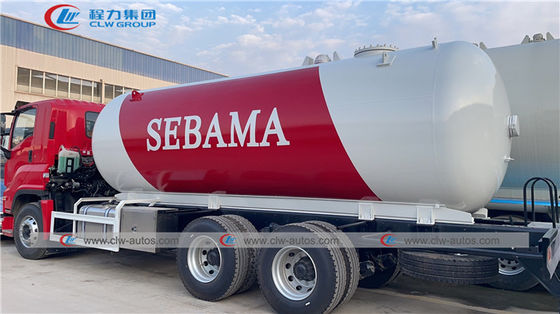

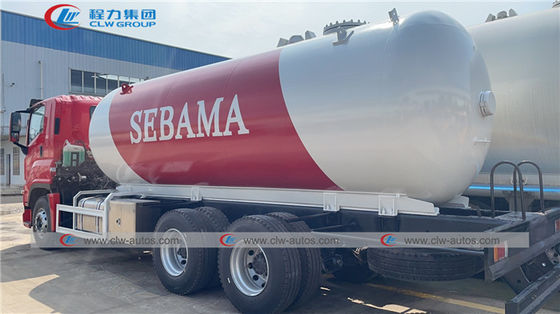

Reference picture of ISUZU 350hp 10Tons lpg tanker truck

ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck 0ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck 1

Except for isuzu lpg truck,you can also choose smaller size howo lpg truck,dongfeng lpg truck as follows

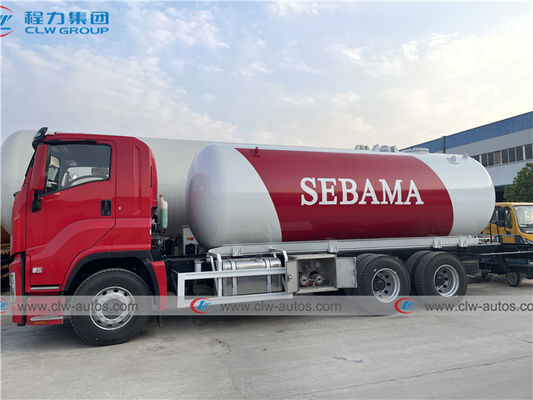

ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck 2

Following 5tons 5tonnes 5t propane truck is customized for MERU group

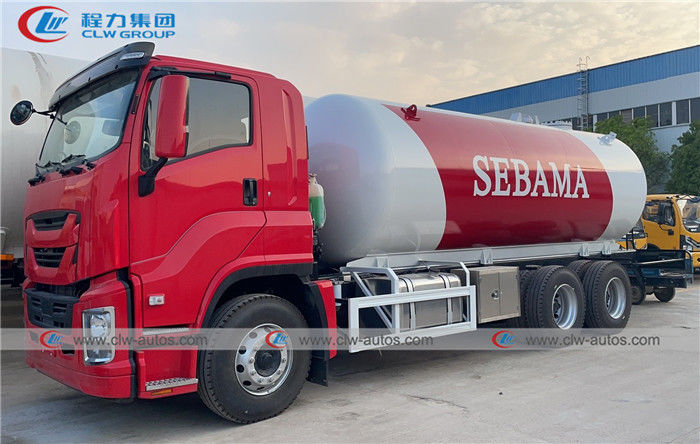

ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck 3

ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck 4

ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck 5

ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck 6

Specification of ISUZU 10TONS LPG TRUCK



Item No. Parameters
Overall Dimension 9100*2500*3450mm
Driving Model left hand drive
Gross Vehicle Weight 23740 kg
Curb Weight 13740 kg
Payload 10000 kg
Wheel Base 4350+1300 mm
Front/rear Tread 1245/2805 mm
Approach/Departure Angle 27/12 degree
Front Axle 7000kg
Rear Axle 16000kg*2
Engine 350hp engine, 4 in-line cylinder
Engine horsepower 350 HP EUROIII
Displacement 5900mL (Diesel)
Max Driving Speed 80 km/h
Cabin 2 Passenger allowed, right Hand Driving,with A/C
Tire 12.00R20 (10 pieces with one spare)
LPG tank
Volume: 20cbm
Tank material: Q345R
Tank diameter: 2050mm
Tank thickness: 10mm for tanker shell and 12mm for end plate
Tank length: 6445mm
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Accessory
LPG Pump Chinese vane pump YQ15-5
Hydraulic motor Chinese brand
Radiator For hydraulic oil/1 unit
Flow meter Volume flow meter/Chinese brand
Refilling hose reel 15 meters,high tensile pipeline
Refilling nozzle REGO
Filling room With aluminum alloy rolling door/located at rear of truck or at side of truck
Safety Valve No. 1
  Type A412F-2.5-16
  Nominal pressure 2.5Mpa
  Opening pressure 1.86-1.94Mpa
  Closing pressure >1.67Mpa
Level gauge Float-ball type/at rear of LPG tanker
Tool Box 1
Valve Box 1 with flange vapour phase and liquid phase
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher 2
Anti-static Tape 1
Painting As required
Standard
Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels



Why do you choose us for lpg truck?

Located in Suizhou city,hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck,Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck,Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation,construction, transportation, chemical, oil and gas, emergency rescue and so on.



With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12,600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers..


CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

  • Certificate: ASME, ISO, BV, SGS, CCC etc.
  • more than independents workshops.
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians. About 8000 workers.
  • 800kinds of LPG, trucks and semi-trailers.
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • Turnover 2 billion trucks and semi-trailers annually.
  • Trucks Sold to more than 90 countries
  • Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC



After sales service

Before purchasing:

1-Quick reply on customers' inquiry;

2-Professional suggestion on truck choice according to different countries.

3-Details quotation with spec.and reasonable price.

4-Welcome to visit our company before purchasing.



After purchasing:

1-Production pictures and video updated every week.

2-Customer can visit factory after truck completion or arrange third party inspection.



After-sales service:

1-English Operation Video

2-Free operation and technical train at factory but not include accommodation

3-Spare parts supplied at factory price whenever needed.

4-Engineers can be sent to your country and offer local engineering support and train.





FAQ



Q1: What kinds of propane truck I can order from your company?

A: We can supply propane truck from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.



Q2: What is your production standard of propane truck? Whether your propane truck exported to others countries?

A: propane truck is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.



Q3: What's the difference between your company and other chinese supplier?

A: As the top manufacturer of lpg trucks and products for more than 15 years,our sales are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.



ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck 7

ISUZU GIGA 6x4 350HP 20m3 10 Tons LPG Transport Truck 8
