ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck

Large Image : ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck

Product Details:

Place of Origin:	Suizhou,China
Brand Name:	CLW
Certification:	ISO, CCC
Model Number:	CLW5168WSLXWC

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	12520 usd/unit~39660 usd/unit
Packaging Details:	Naked package shipped by bulk ship
Delivery Time:	Within 30days after received advance payments
Payment Terms:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	300units/month

Contact Now

Detailed Product Description

Truck Brand:	Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Vacuum Sewage Truck	Driving Model:	LHD,RHD Vacuum Sewage Truck
Engine:	Diesel Engine Vacuum Sewage Truck	Material:	Q235 Carbon Steel Vacuum Sewage Truck
Tanker Size:	10000Liters 10Tons 10m3 3000 Gallons Vacuum Sewage Truck	Loading Capacity:	10tons 10tons 10tons Vacuum Sewage Truck
Thickness Of Tanker:	5mm Or 6mm Vacuum Sewage Truck	Vacuum Pump:	Chinese Pump,BP,Jurop,Moro Kaiser Vacuum Sewage Truck
Suction Depth:	8 Meters Vacuum Sewage Truck	Suction Distance:	50~100 Vacuum Sewage Truck
Medium:	Sewer/sludge/septic Suction Vacuum Jetting Truck	Sewage Tank:	10m3,10000liters,10cbm Vacuum Sewage Truck
High Light:	10000L Sewage Suction Truck , ISUZU FTR Vacuum Sewage Suction Truck , ISUZU FTR Vacuum Suction Truck

Stainless Steel ISUZU FTR 10Tons 10,000L Vacuum Sewage sludge Cleaning Truck
Description-- isuzu vacuum sewage truck(also called isuzu vacuum sewer truck, isuzu jetting and vacuum truck,isuzu sewer cleaning truck with jetting equipment,sewer flushing truck,sewer vacuum truck,septic truck,mud dredging and cleaning truck,sewer cleaning truck, high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewer,septic,sewage to avoid secondary pollution.

ISUZU vacuum sewage truck is with advantage of high suction efficiency, self-priming, self-draining and direct irrigation.

Pumping time for full tank: ≤5min, suction range: ≥8m.

long service life, fast working speed, simple operation and convenient transportation.

ISUZU vacuum sewage truck is mainly used to clean urban sewers, pipelines, sediments, and dredging of dead-angle mud ditches. It can also be used to clean industrial drainage pipes and walls, etc. It can also be used for sprinkling, transporting water and washing roads, and can be used for fire fighting in emergency. .

-- Quality ISUZU FTR chassis , perfect performance

-- Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.

-- Nice shape , rational structure

-- Massive, durable ,perfect performance

-- Prolonged service time

-- Customied truck painting with your company logo

Reference picture

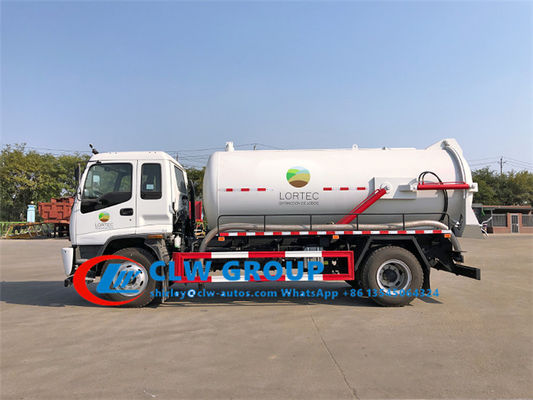

ISUZU 10tons stainless steel vacuum sewer truck for Guatemala

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 0

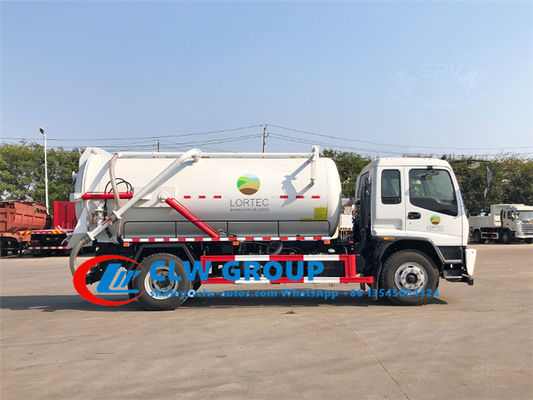

ISUZU 10tons stainless steel sewage vacuum suction truck to Guatemala

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 1

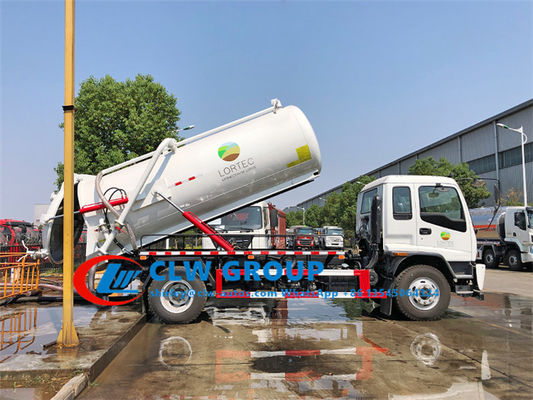

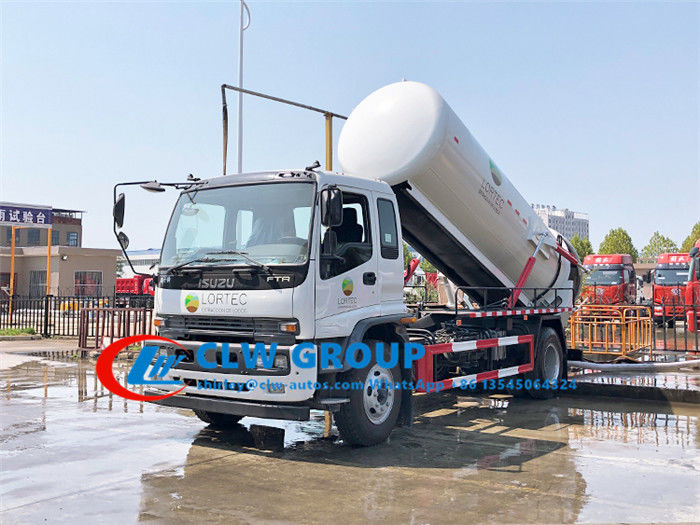

ISUZU stainless steel vacuum sewer jetter truck for Guatemala

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 2

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 3

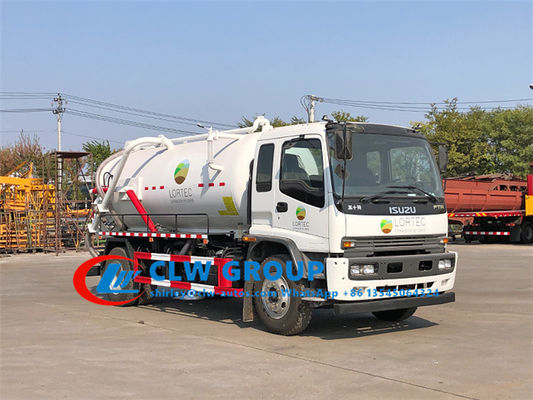

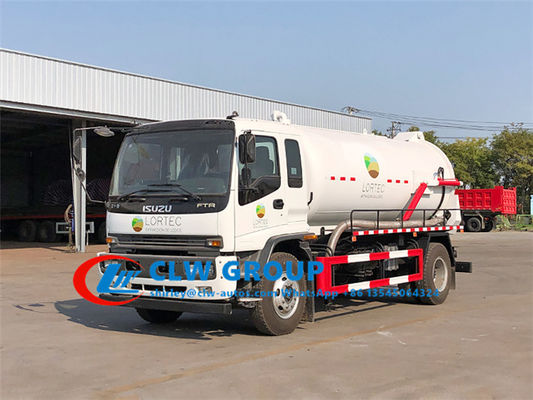

ISUZU FTR vacuum jetting truck with jurop pump PN130D

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 4

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 5

How do we produce ISUZU Vacuum sewer jetting truck?

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 6

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 7

Dongfeng 5000liters or 8000liters Vacuum sewer jetting truck

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 8

Howo 8000liters Sewer Dredging Truck for high pressure sewer cleaning service as follows,

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 9

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 10

Specification of ISUZU Vacuum Jetting Truck

The Parameters of ISUZU vacuum jetting truck
Overview
Name	Vacuum jetting truck
Dimension(LxWxH)	8990X2500X3380(mm)
Total Mass	16050Kg
Rated Payload	8000Kg
Kerb Weight	8050Kg
Passenger	3
Approach/Departure Angle	19/15
The Parameters of Chassis
Manufacture/Model	ISUZU, QINGLING/QL5160CCY9QFRJ
Driving Type	4*2 left hand drive
Wheel Base	4500 mm/4700mm
Gearbox	MLD Six speed lever with five speed forward and one reverse, manual
Front/Rear Track	1506/1466(mm)
Tyre	10.00R20
The Number of Tyre	6+1(spare tyre)
Front/ Rear Suspension	1032/1658(mm)
Leaf Spring Number	8/9+5, 6/8+4
The Paremeters of Engine
Manufacturer/Model	ISUZU/4HK1-TC50
Rated Power	205hp/139kw
Fuel Type	Diesel oil
Displacement/Capacity	5193mL
Emission Standard	Euro 5
Cylinder	510N.m
Velocity	2600rpm
The Parameters of Equipment
Tank Capacity	Water tank 4 m3 and sewage tank 7m3
Vacuum Pump Rotation Speed	800r/m-1400r/m
Max. Suction Lift	>6m
Vacuum	>500mmHg
Rotation Direction	Clockwise
Time for full sucktion	<5min
Common Accessories	Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional),etc.

ISUZU FTR 10000L Stainless Steel Vacuum Sewage Suction Truck 11

Why do you choose us for Vacuum jetting truck?

1.well experienced truck production company to offer high quality and competitive-price Sewer Dredging Truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available
