| Product Name: | Vacuum Street Sweeper | Water Tank Size: | 2000liters/2000L |
|---|---|---|---|
| Dust Tank Size: | 5cbm/6cbm/7cbm | Water Tank Material: | Carbon Steel/stainless Steel/304 |
| Dust Tank Material: | Stainless Steel/304 | Engine: | 120hp,diesel Engine |
| Wheelbase: | 3800mm | Tire: | 7.50R16, |
| Sweeping Width: | ＞3.2meters | Inhalation Particle Size: | φ120mm |
| Maximum Operating Capacity: | 15000㎡/h-60000㎡/h | Application: | Street Cleaning, Airport, Outdoor, Sweeping The Road, Port |
| Color: | White Or Customized | ||
| High Light: | 12m3 Vacuum Sweeper Truck,Dongfeng Tianjin Vacuum Sweeper Truck,Dongfeng Tianjin Street Sweeper Truck |
||
Dongfeng Tianjin 12m3 Vacuum Sweeper Truck Street Sweeper Truck for Sale
Description
Road sweeper(also called sweeper truck,road cleaning truck,vacuum sweeper) is a new generation of environmental protection, cleaning and suction combined with road cleaning special vehicles, mainly applicable to the city streets, municipal square, large factories and mines mechanized cleaning and cleaning operations.
Road sweeper can not only sweep garbage, but also dust and purify the air medium on the road, which not only ensures the beauty of the road, maintains the sanitation of the environment, maintains the good working condition of the road, and reduces and prevents traffic accidents. Occurrence and further extend the service life of the road surface. The road sweeper is a special sanitation vehicle equipped with sweeping systems such as sweeping brushes, and is mainly used for cleaning operations in large and medium-sized urban sanitation departments. The road sweeper greatly liberated the work intensity of sanitation workers, improved work efficiency, and reduced secondary pollution such as dust.
★ With 4 Nos of sweeping brushes in middle
★ Turntable realizes three-speed speed regulation
★ Stainless steel/carbon steel water tank,stainless steel dust tank
★ jmc auxiliary engine 78hp or cummins 140hp auxiliary engine
★ Sanyo Motor, Schneider control switch, Hypress solenoid valve group, infinitely variable automatic clutch, maintenance-free centrifugal automatic fan,
★ Tail LED arrow indicator,
★ manual pump emergency system,
★ Zoomlion Polaris electronic water pump
★ garbage lifting Tipper function.
Optional configuration:
1. Optional trash can self-cleaning function
2. Optional reversing monitoring function
3. Optional front flushing and back sprinkling functions
4. Optional dust suction pipeline at rear
★ Working width: 3M
★ Inhalation particle size: φ120mm.
★ Water tank volume: 2m³
★ Trash bin volume: 6m³
★ Maximum operating capacity: 15000㎡/h-60000㎡/h
Specifications
| Dongfeng Tianjin Road Sweeper | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | Dongfeng(DFAC) | |
| Overall Dimension | 8995*2450*3250mm | |
| GVW / Kerb Weight | 5,895kg / 3,965kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins | |
| Power | 125KW/170HP | |
| Displacement | 5700ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4700 mm / 2 | |
| Tyre Specification | 7.50-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | Stainless Steel |
| Dustbin Capacity | 5-7 CBM | |
| Dustbin Material | Stainless Steel | |
| Water Tank Capacity | 3000-4,000 Litres | |
| Sweeping Capacity | 42,000 m³/h | |
| Sweeping Speed | 3-15 km/h | |
| Max Sweeping Width | 2800-3500mm | |
| Brooms | 2 sets at each side, at diameter 900 mm | |
| Auxiliary Engine | JMC engine (Japanese technology) 77 HP (57 KW), super powerful |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual... | ||
| Optional | ** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|

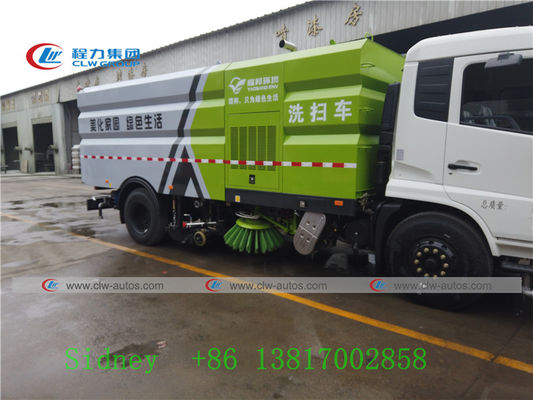

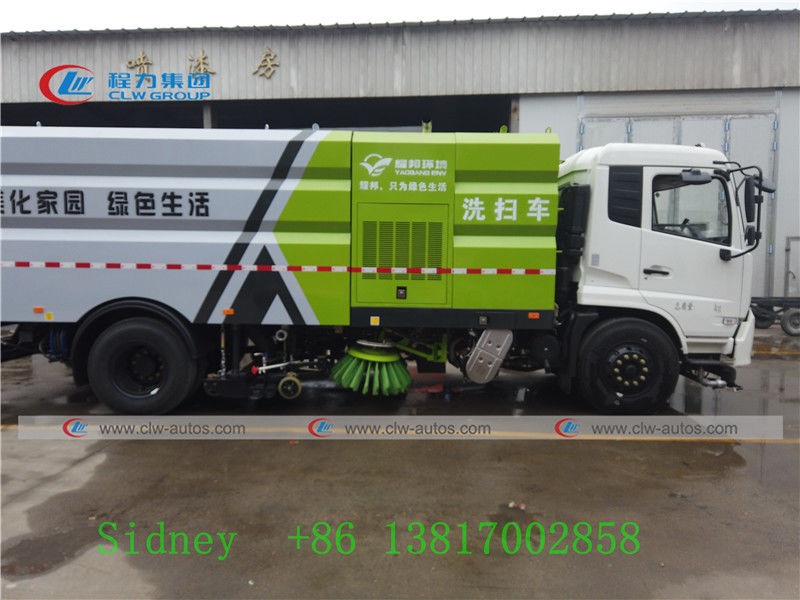

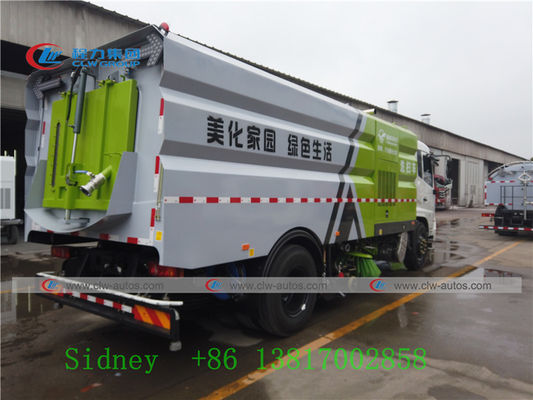

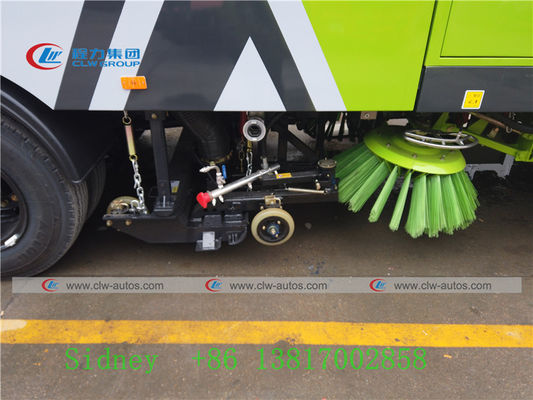

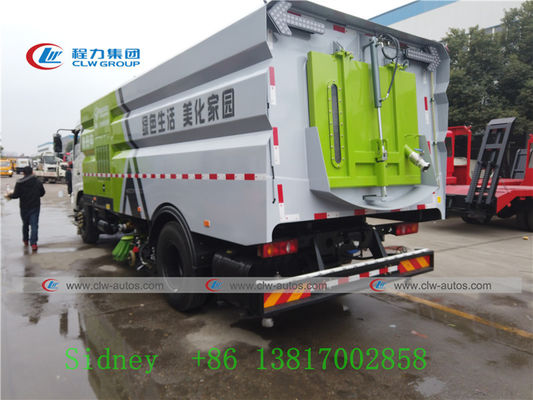

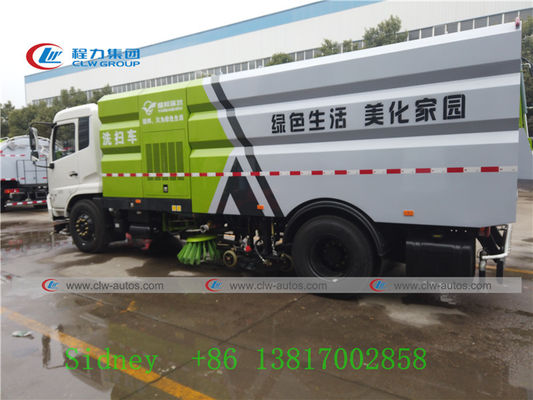

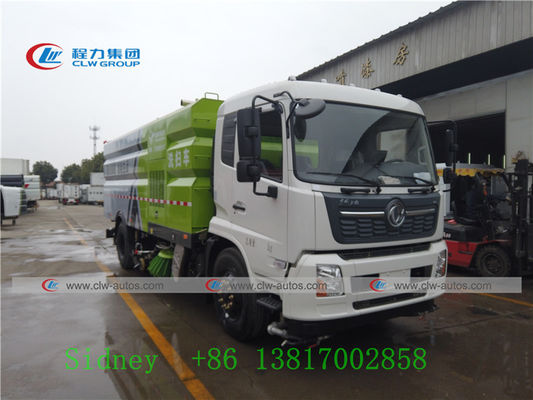

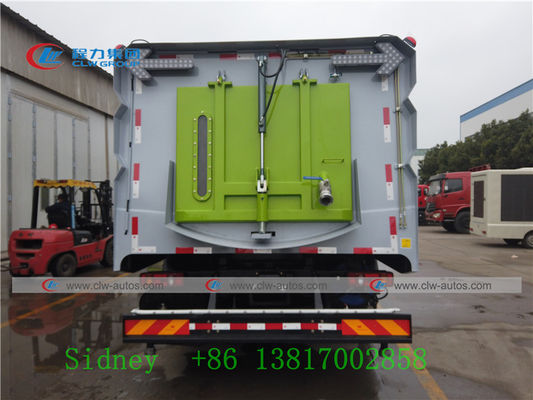

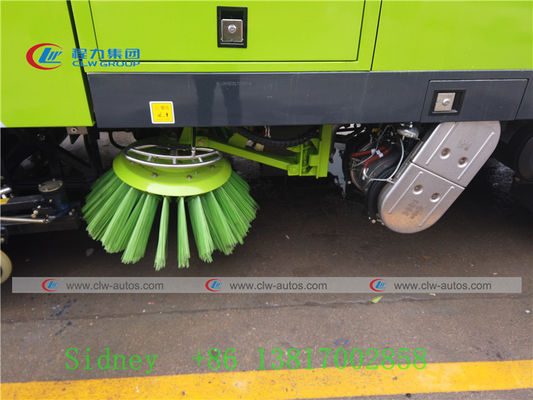

Reference Pictures
