Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng,ISUZU,JAC,JMC,Forland,Foton | Lifting Height(m): | 10m, 12m, 14m, 16m |
|---|---|---|---|
| Operating Height(m): | 12m, 14m, 16m, 18m | Control Mode: | Control Handle/Remove Control |
| Drive Model: | 4x2; 4x4; As Per Upper Design And Customer Request | Color: | Red/Yellow/Blue/Green/Optional |
| High Light: | 18 Meters Aerial Bucket Truck,Dongfeng Duolika Aerial Bucket Truck,Dongfeng Duolika Aerial Platform Truck |
||
Features
--- Our truck mounted aerial platform meet ISO9001:2008 and China CCC standard.
--- Articulated boom, max working height 18 meter.
--- 4 outriggers could be extended seperately or together.
--- Bucket rated loaded capacity 200kg
--- The crane mounted at the end of boom, max lifting capacity 1000kg.
--- Emergency pump assure the security
Specifications
| Chassis Brand | Dongfeng | |
| Drive Type | 4 x 2, LHD / RHD | |
| Wheelbase | 3800 mm | |
| Cabin | Single row, 2 persons allowed | |
| Overall Dimension (L x W x H) | 8250 x 2320 x 3500 mm | |
| GVW | 7490 kg | |
| Kerb Weight | 7295 kg | |
| Engine | Engine Model | CY4102-C3C |
| Engine Make | Chaochai | |
| Rated Power | 88 kw / 120ps | |
| Displacement | 3856 ml | |
| Type | Diesel engine, Euro 3 | |
| Brake | Air brake | |
| Transmission | 5 speed forward, 1 reverse | |
| Tire Size | 7.50-16 | |
| Max Speed | 95 km/h | |
| Superstructure | Max Working Height | 18 m |
| Boom Type | Knuckle boom, 3 sections | |
| Max Working Radius | 7.5 m | |
| Hydraulic System Working Pressure | 16 MPa | |
| Bucket Load | 200 kg | |

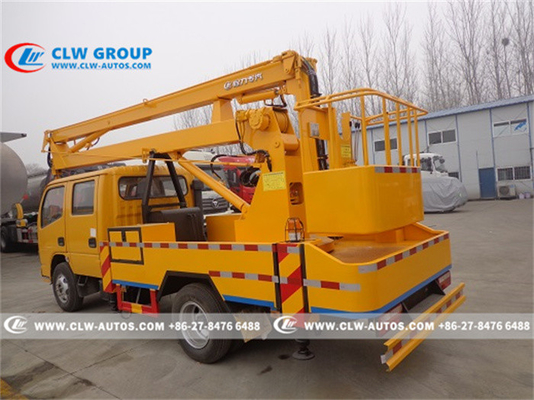

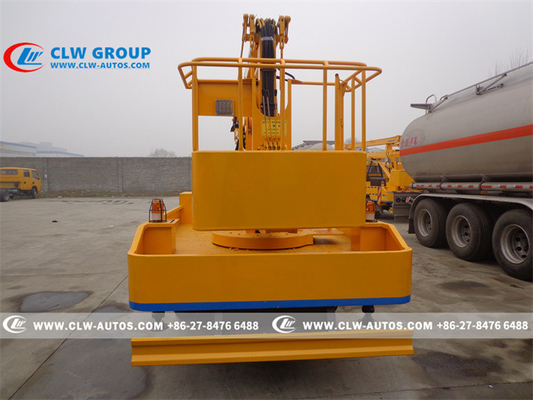

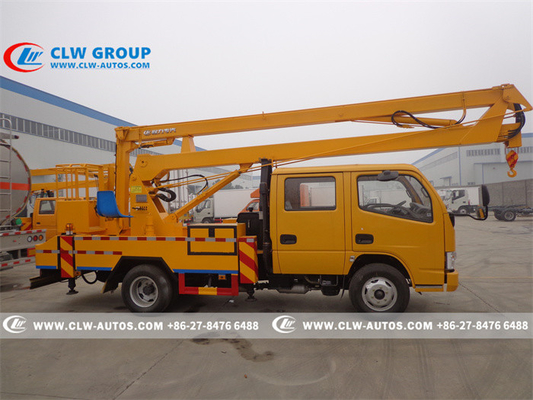

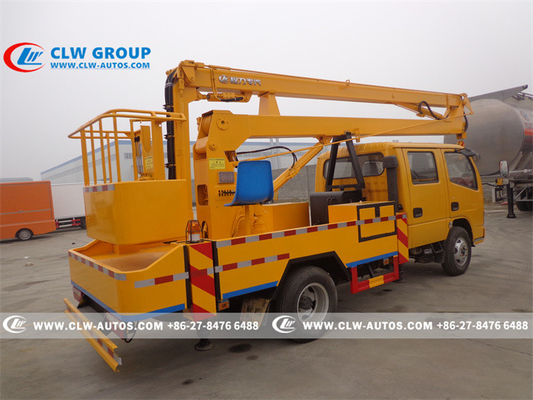

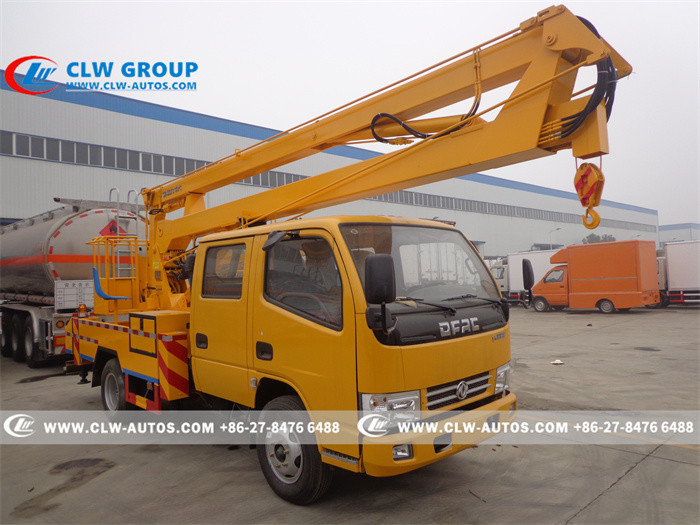

Reference photos
Working show
Bulk orders
Factory overview
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted aeriel platform I can order from your company?
A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied truck mounted aeriel platform to any overseas companies?
A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
