Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng,ISUZU,JAC,JMC,Forland,Foton | Lifting Height(m): | 10m, 12m, 14m, 16m |
|---|---|---|---|
| Operating Height(m): | 12m, 14m, 16m, 18m | Control Mode: | Control Handle/Remove Control |
| Drive Model: | 4x2; 4x4; As Per Upper Design And Customer Request | Color: | Red/Yellow/Blue/Green/Optional |
| High Light: | Forland Aerial Platform Truck,4X2 Aerial Platform Truck,Forland Aerial Bucket Truck |
||
Specifications
| AERIAL PLATFORM TRUCK | ||
|
General |
Descriptions | Specifications and types |
| Truck Brand | CLW | |
| Chassis Brand | Foton forland | |
| Approx. Dimension | 8200*2320*3120 mm | |
| GVW./Kerb Wt. | 6495 /6300 kg | |
| Cab | Cab Capacity | 3 persons' seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type | 4X2,LHD or RHD |
| Fuel Type | Diesel | |
| Engine Make & Model | Chaochai engine | |
| Power | 120 HP / 88 KW | |
| Displacement | 3856ml | |
| Emission Standard | Euro II or EURO III | |
| Wheelbase/No.of axle | 3800mm / 2 | |
| Tyre Specfication | 7.50-16,7.50R16,8.25-16,8.25R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Automative metallic paint | |
| Superstructure | Max working height | 12-16M |
| Working cage | 200kg capacity | |
| Beam | Hydraulic control | |
| Slewing | 360 continuous rotation | |
| Equipments |
Four hydraulic outriggers are equipped, stable and reliable Dual control system both in the working cage and on the deck. Safety device: relief valve, balance valve, double way hydraulic lock , motor emergency system Insulated aerial platform ,hoist hook with cables optional |
|

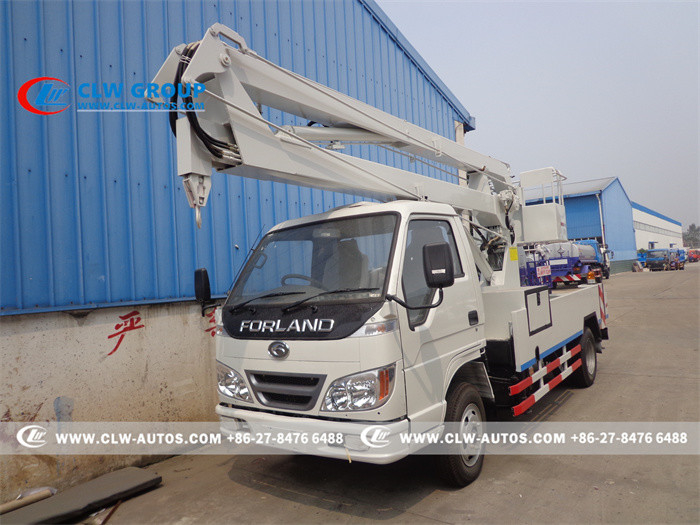

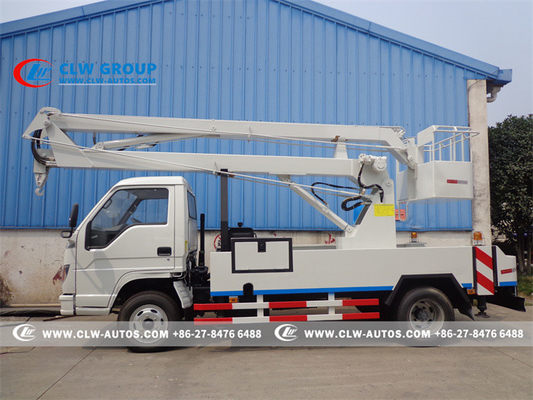

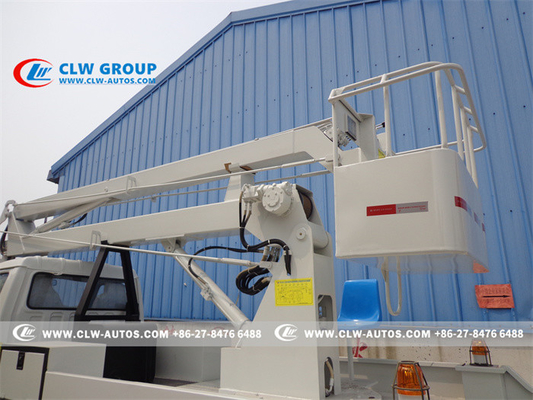

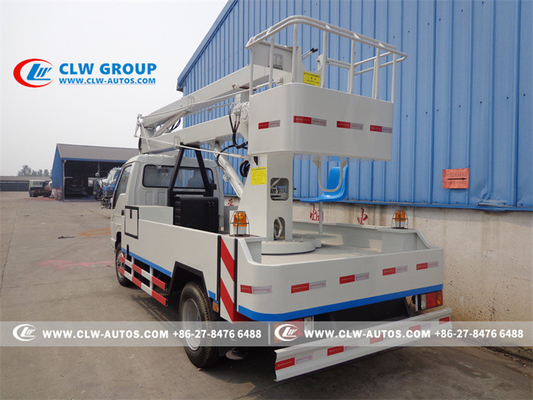

Reference photos
Working show
Bulk orders
Factory overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted aeriel platform I can order from your company?
A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied truck mounted aeriel platform to any overseas companies?
A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
