Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

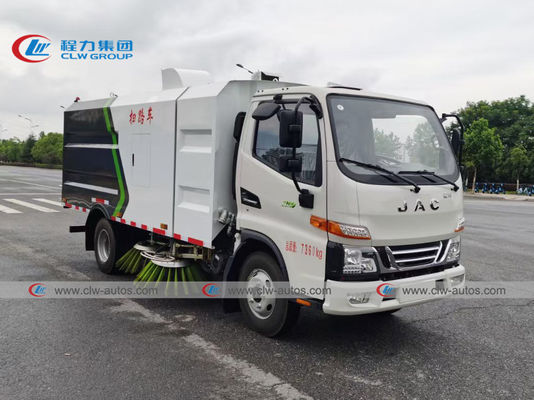

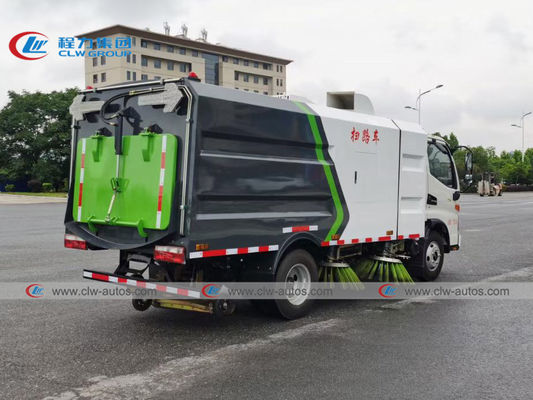

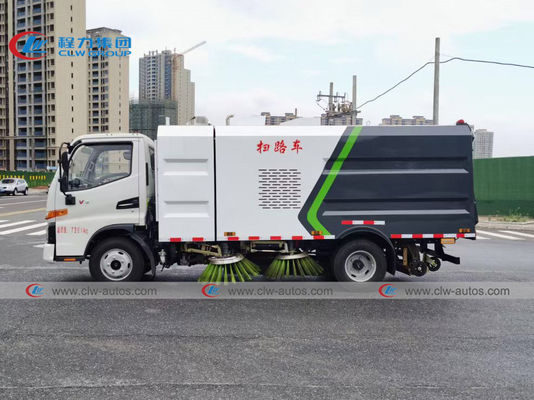

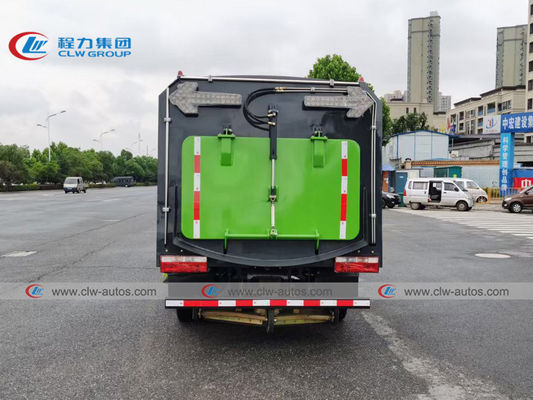

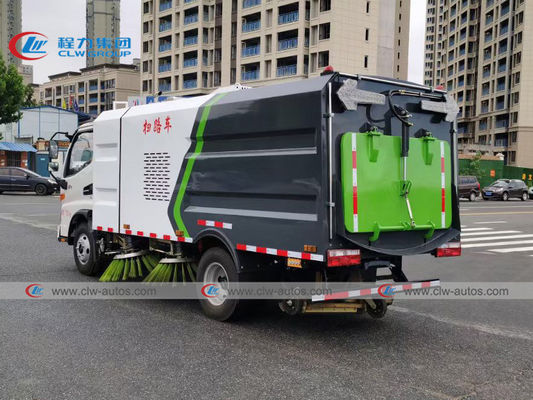

Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck

Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck
Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck

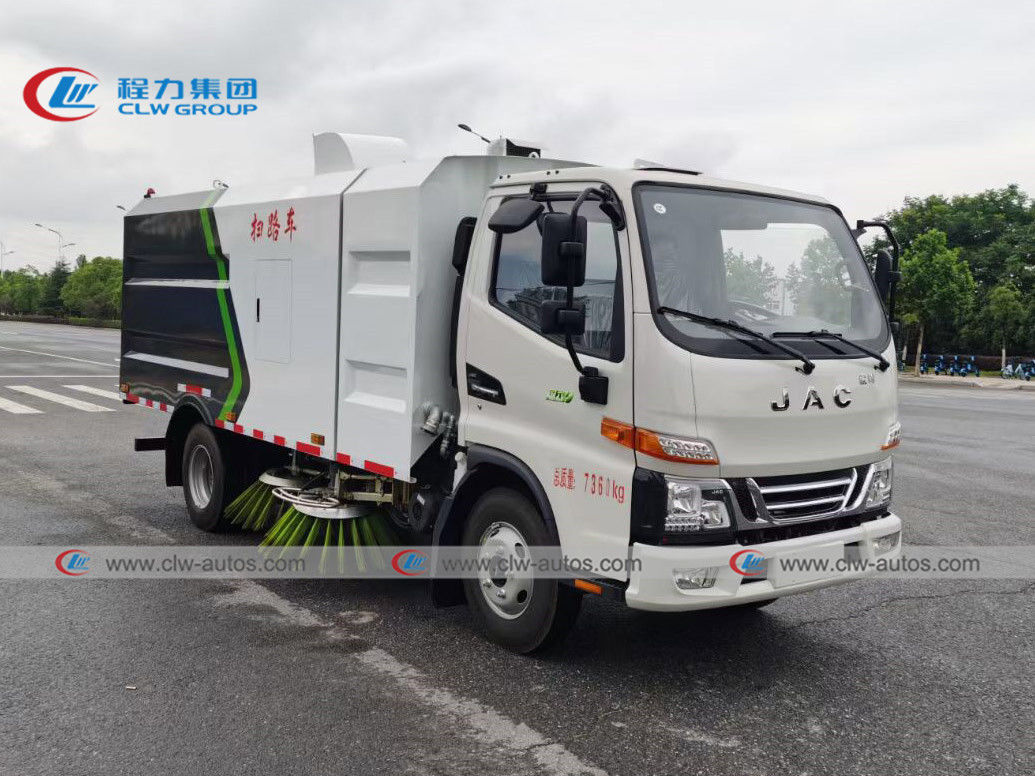

Large Image :  Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW /Weiyu Brand
Certification: CCC,SGS,BV
Model Number: CLW5073

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: negotiable
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit at account
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 500 Units per month
Detailed Product Description
Truck Brand: JAC Garbage Box: 3.5 Cubic Meter
Water Tank: 1.5 Cubic Meter Tank Material: Stainless Steel
Deputy Engine: Cummins 140HP Truck Engine: Yuchai Engine
Tire: 7.00R16 Tire Quantity: 6pieces
High Light:

JAC Vacuum Road Sweeper Truck

,

Cummins Engine Vacuum Road Sweeper Truck

,

Cummins Engine Street Sweeper Vacuum Truck

5Ton Stainless JAC Vacuum Road Garbage Sweeper Truck



Product Description



JAC 5 Ton Road Sweeper Chassis Configuration

Configuration:

  • Yunnei Dewei 150 horsepower engine (D25TCIF1), 110kw,
  • 6 Forward & 1 Reverse Gearbox,
  • 1.8T front axle, 3.5T rear axle, 190 frame,
  • 7.00R16 steel wire tires,
  • Air brake, electric vehicle Window, central control, with air conditioning, ABS.



Sweeping Body Structure:

  • Water tank volume: 1.5 cubic meters,
  • garbage bin volume: 4 cubic meters;
  • 4 sweep pans in the middle, independent three-speed speed regulation of sweep pans,
  • JMC 77 HP auxiliary engine, Sanyo motor, Schneider control switch, Taiwan hydraulic valve or Hypress solenoid valve Group,
  • Changyuan hydraulic oil pump, Xinxishan water pump, maintenance-free self-separating clutch, maintenance-free fan,
  • Rear LED arrow light, manual pump emergency system, front sweeping brush arm rotating mechanism uses high-tech wear-resistant engineering spacer, no grease, Precision cold-formed seamless hydraulic oil pipe,
  • Sweeping width: 2.8-3.2 meters, sweeping speed: 3-20km/h, maximum suction particle size: 120mm, maximum sweeping capacity: 50000m2/h.





Specifications of road sweeping truck



Cabin

Driving type 4x2 LHD OR RHD

single row,with A/C ,with two seats,audio with USB,

Vehicle Main Dimensions Overall dimensions (L x W x H)mm 6190×2090×2500
Wheel base (mm) 3360
Wheel track (front/rear) (mm) 1605/1555
Approach/Departure angle(°) 19/17
Weight in KGS Tare Weight 45850
payload 1460
Front axles loading capacity 1x2795
Rear axles loading capacity 1x4565
Max. driving speed(km/h) 90
Engine Brand ChaoChai
Model CY4102-N5D
Horse Power(HP) 115HP
Emission standard EuroIII
Gearbox 5 forwards & 1 reverse
Steering Right hand drive
Tire 7.00R16,6 tires with one spare
Max. Cleaning Width 3M
Sweeper Speed 3~20 km/h
Max. Cleaning Capacity 60000 m2/h
Max. Suction grain size ≥110mm
Dumping angle ≥45°
Hopper 4000liters,double layer,Stainless steel inside
Water tank 1500Liters
Auxiliary Engine Model&Manufacturer JIANGLING JX493ZQ
Type Four-injection,water-cooling,turbo-charged,diesel engine
Power 77hp/3600r/min
Max. Rotation Speed 2400r/min
Oil type 0# Diesel,share the same fuel box with chassis
Aerator Type High pressure centrifugal Aerator
Curb rotation speed 2600-2900r/min
Driving model Driven by auxiliary engine and transferred by transmission parts,clutch and belts
Hydraulic System Type electro-hydraulic Centralized Control
Main parts Gear pump,gerotor motor,hyraulic oil cylinder,magnetic valve,manual pump
Overflow pressure 14MPa
Hydraulic oil type L-HV46(when temperature is 30℃-5℃)
L-HM46(when temperature is 5℃-40℃)
Hydraulic oil box 70L
Water sprinkling Main parts Water pump,water filter,sprinkler,water box
Electrical system Con-structure Two batteries(in series)
Voltage 24V
Battery model 12-80A.H
Sweeping System Type Fours brushes installed between front and rear axle,driven by gerotor motor.Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are gang controlled for up and down.
Sweeper Diameter 900mm
Sweeper rotation speed 80r/min
Sweeper angle adjustment Forerake 4°-6°and extroversion 2°-4°
Suction Nozzle Type U-shaped
Nozzle diameter 200mm
Nozzle ground clearance when operation 5-10mm

Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck 0



Structure of Sweeper Truck

1) Aerator--centrifigular fan and large diameter dust suction pipeline can collect particle's diameter larger than 120mm
2) Auxiliary engine: Lion 35hp auxiliary engine for 2600mm chassis,ISUZU 75hp auxiliary engine for 3300 and 3800mm chassis and cummins
140hp auxiliary engine for large chassis.
3) Monitoring system in cabin,so driver can easy watch and monitor working situation of sweeping
4) Four brushes in middle of truck and stainless steel nozzles,intelligence collision advoidane,max washing and sweeping
width is 3.2Meters
5) SANYO motor
6) 4mm stainless steel dust box

Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck 1Aera

Cummins Engine 5 Ton JAC Vacuum Road Sweeper Truck 2




Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of road sweeping truck I can order from your company?


A: There are various sizes of road sweeping truck with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2: Have you supplied road sweeping truck to any overseas companies?


A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
